DESCRIPTION

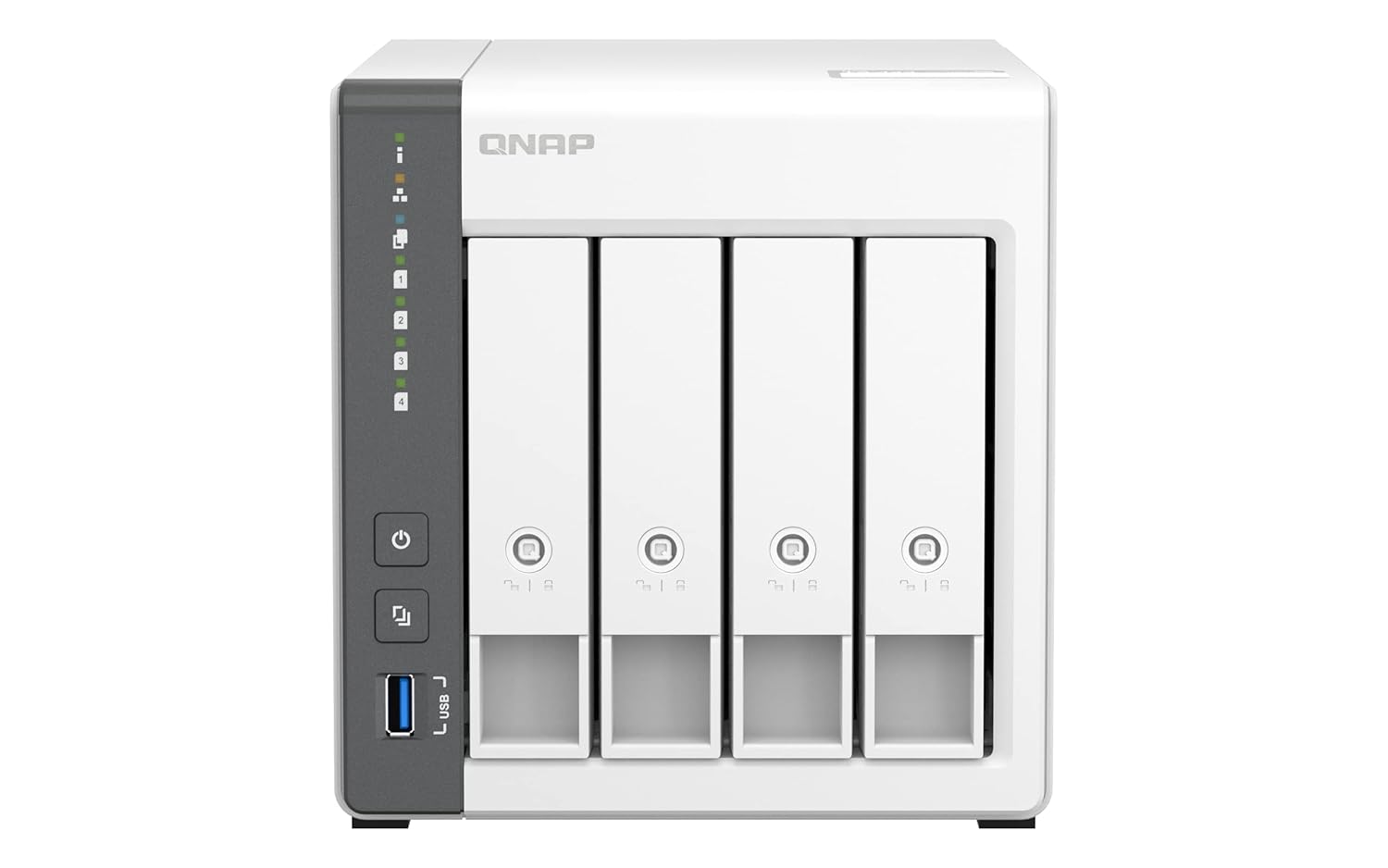

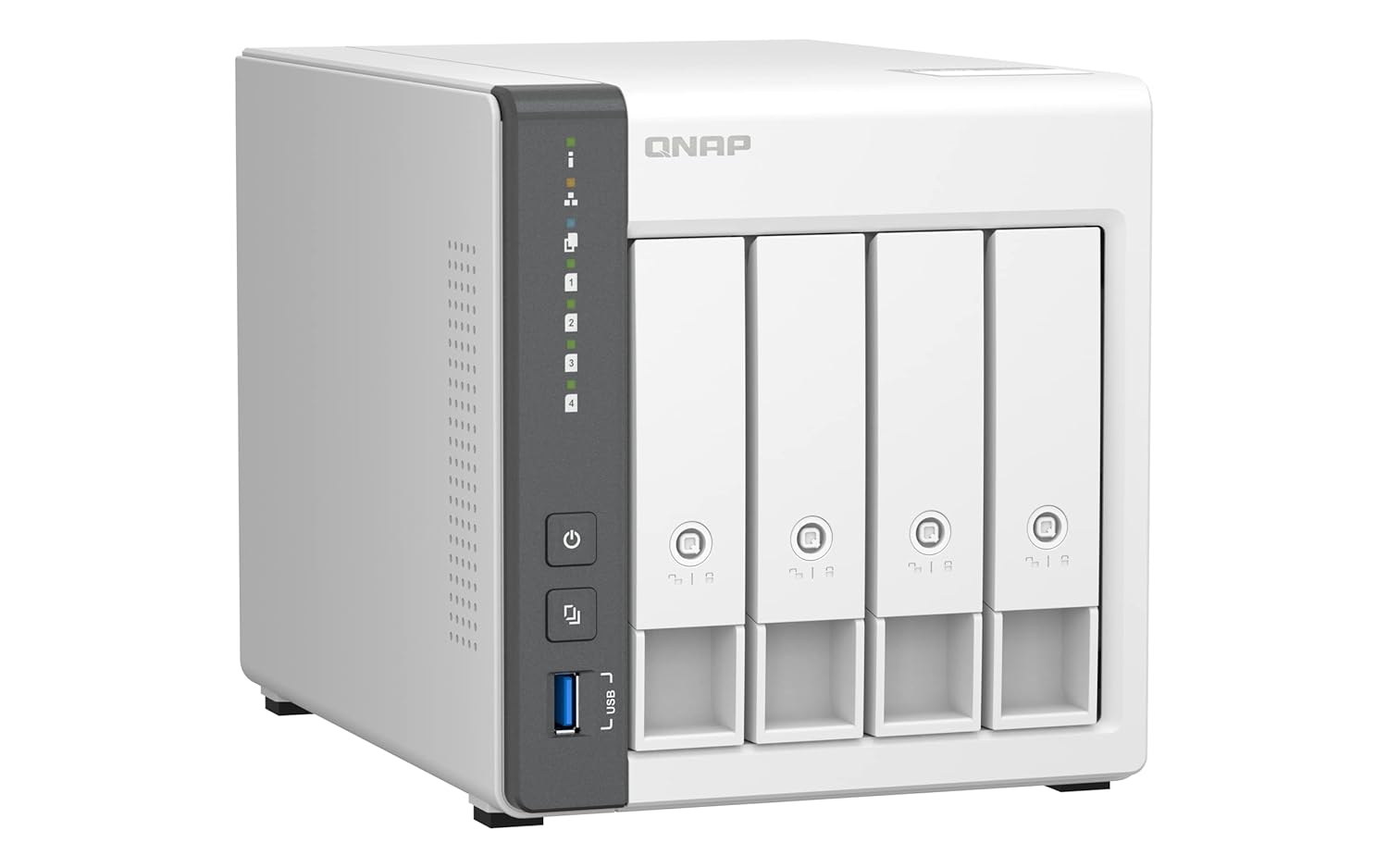

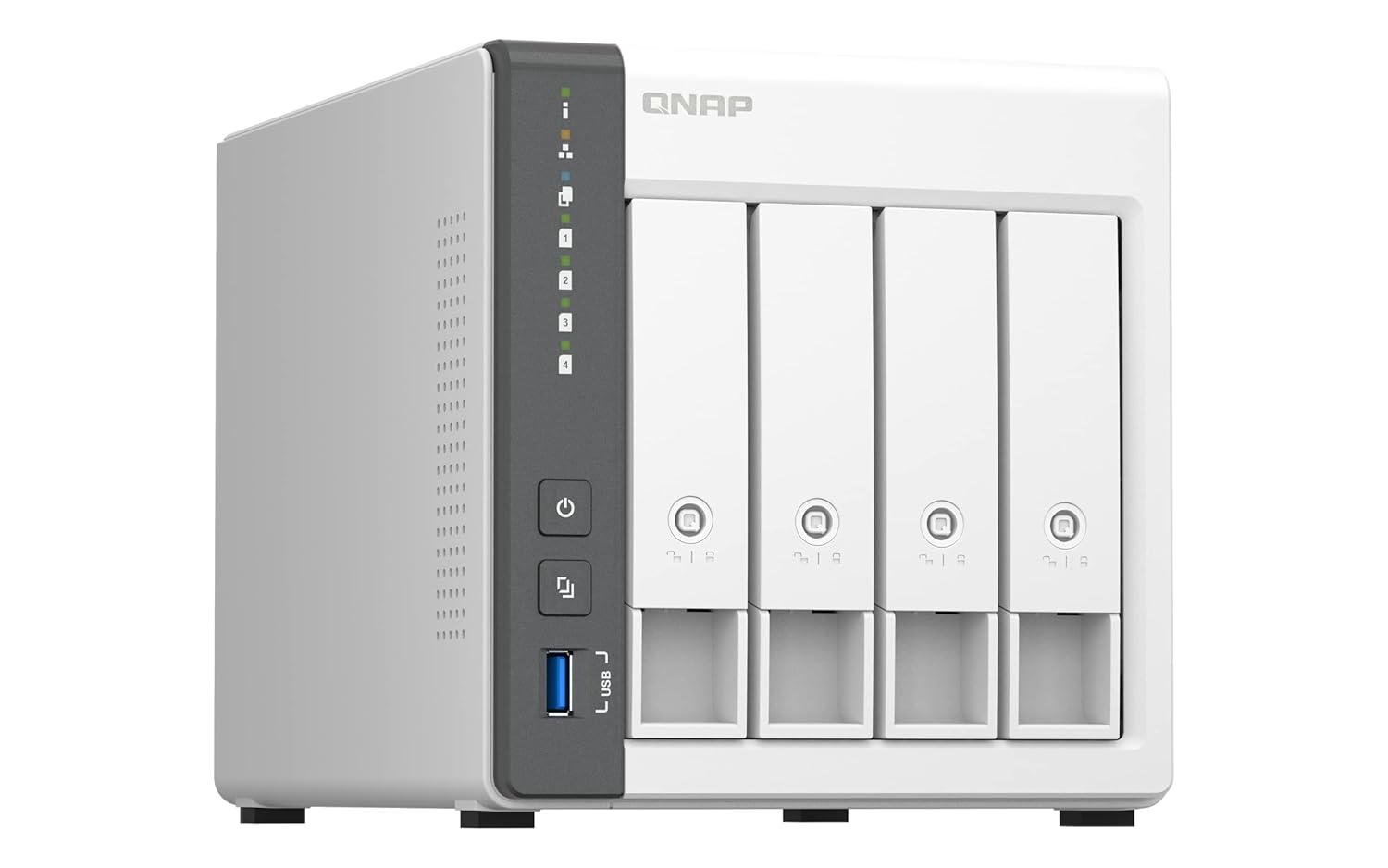

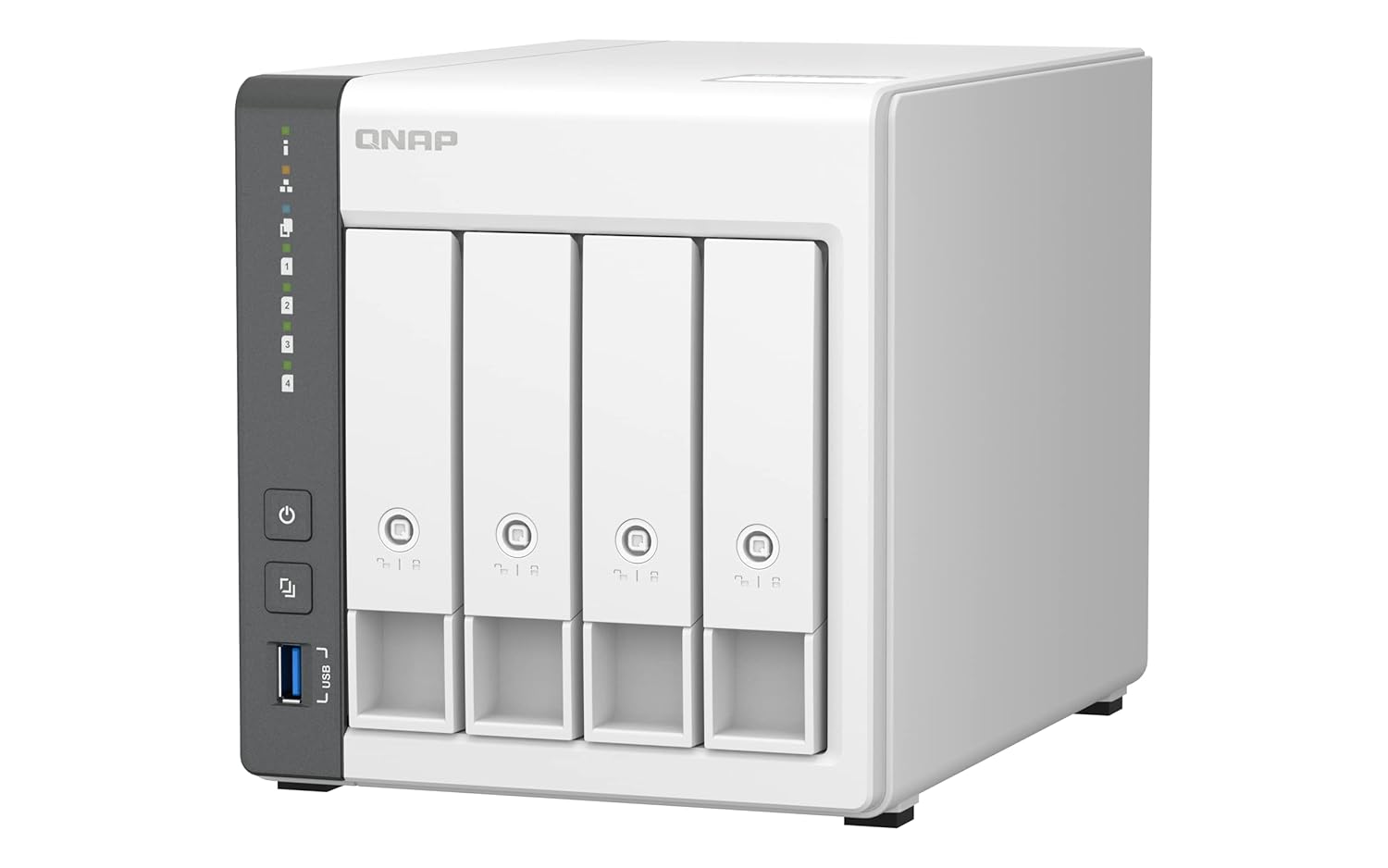

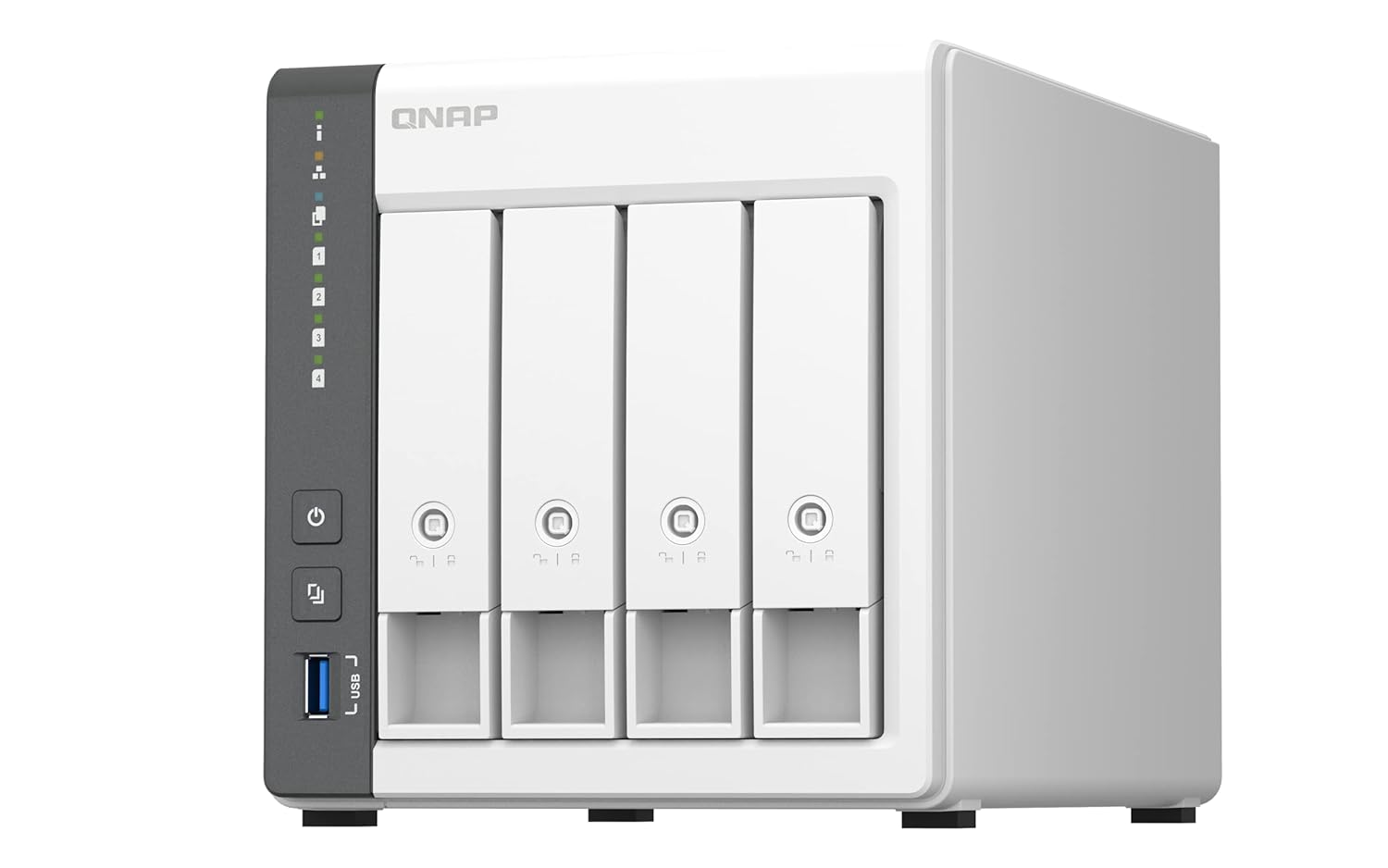

| Model | QNAP TS-433 |
| CPU | |
| CPU Model | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit |
| CPU Core | 4 |
| CPU Frequency | 2.0 GHz |
| Hardware Encryption Engine | Yes(AES-NI) |
| Memory | |
| System Memory | 4 GB on board (non-expandable) |
| Maximum Memory Capacity | 4 GB on board (non-expandable) |
| Storage | |
| Drive Bays | 4 |
| Compatible Drive Type |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot Swappable Drive | Yes |
| External Ports | |
| USB 3.2 Gen 1 Port | 1 |
| USB 2.0 port | 2 |
| RJ-45 1GbE LAN Port | 1 |
| File System | |
| Supported Client OS | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 |
| Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
| LUN feature |
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
|
| RAID Type |
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
| Others | |

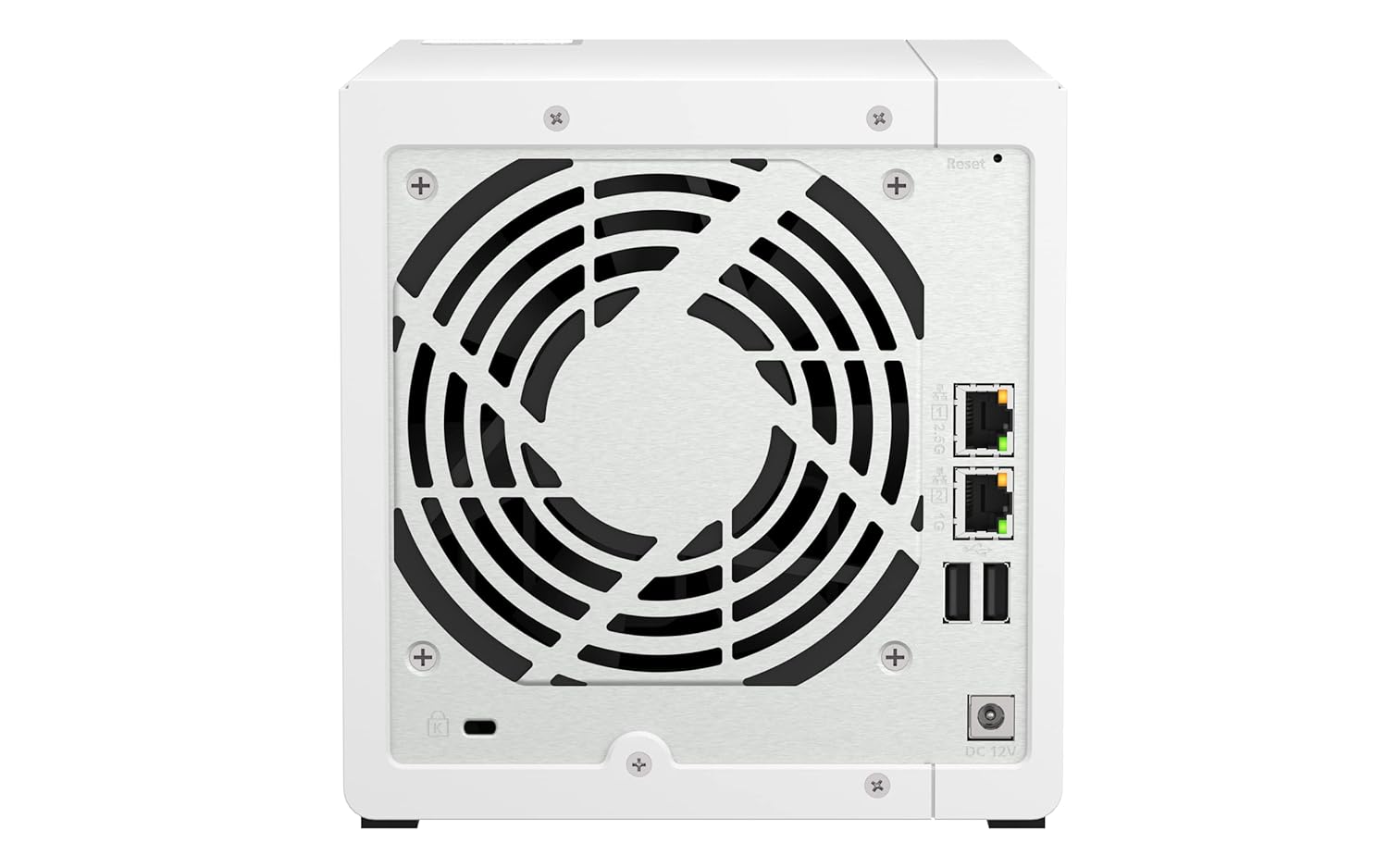

| System Fan | 1 x 120mm |
| Fan Speed Mode |
Full-Speed Mode
Cool Mode
Quiet Mode
|
| Noise Level | 22 dB(A) |
| Power Supply Unit / Adapter | Minimum 65W adapter (12VDC) |
| System Warning | Buzzer |
| Power Consumption |
22.54 W (Operating Mode)
8.45 W (HDD Hibernation)
|
| AC Input Power Voltage | 100V to 240V AC |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Certification | FCC CE BSMI VCCI RCM UKCA CCC KC |
| Miscellaneous | |

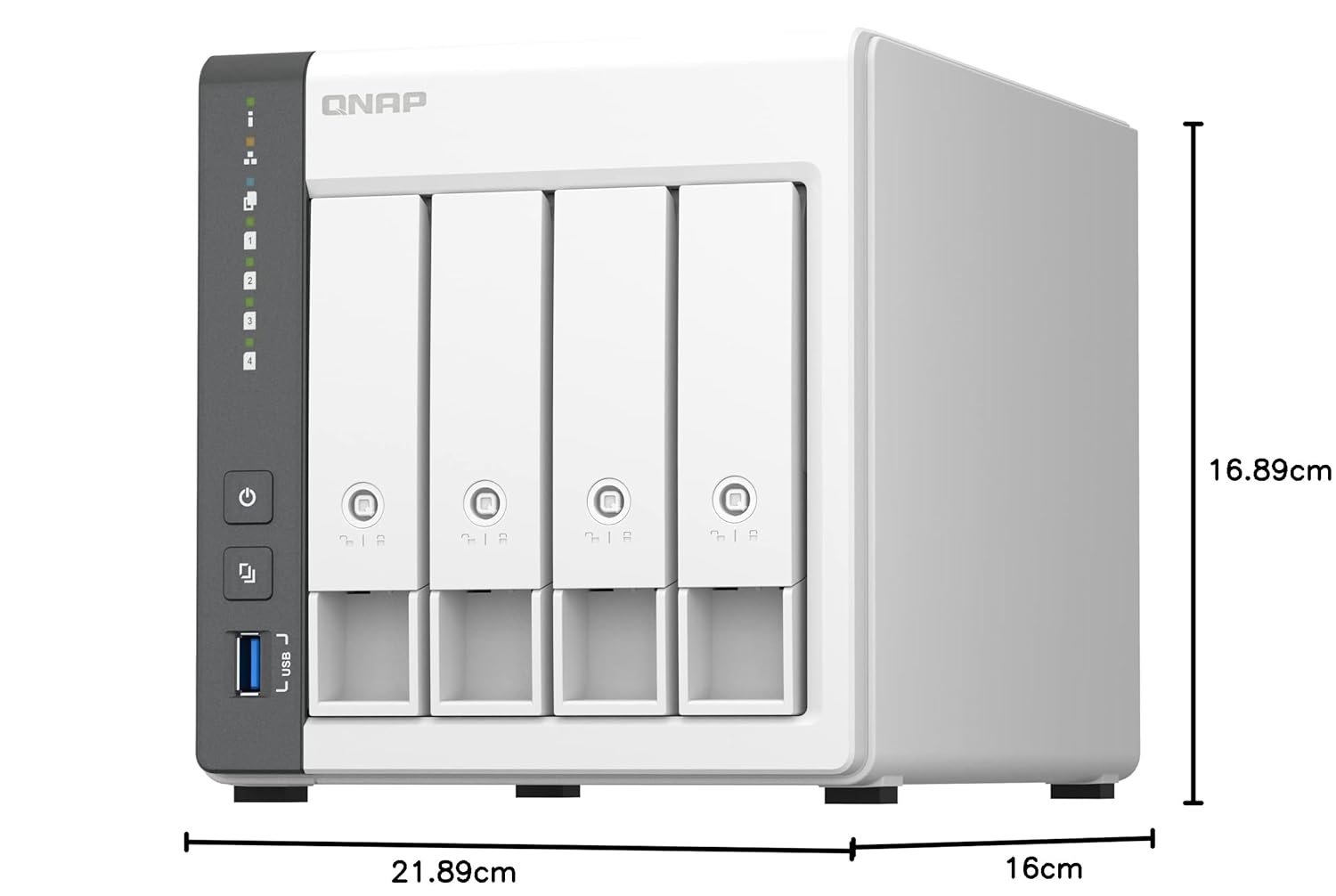

| Dimensions(Height x Width x Depth) | 165 × 160.2 × 220.5 mm |
| Net Weight | 2.07kg |
| Warranty | 1 Year Brand Warranty |
| Package Contents | TS-433 Ethernet Cable x 1 AC Adapter Power Cord Flat head screw (for 3.5" HDD) x16 Flat head screw (for 2.5" HDD) x12 Drive tray keys x 2 Quick Installation Guide (QIG) |
