TS-664-8G

Sale price
₹ 75,499
Regular price
₹ 120,999
Taxes included.
Shipping calculated at checkout.
Description

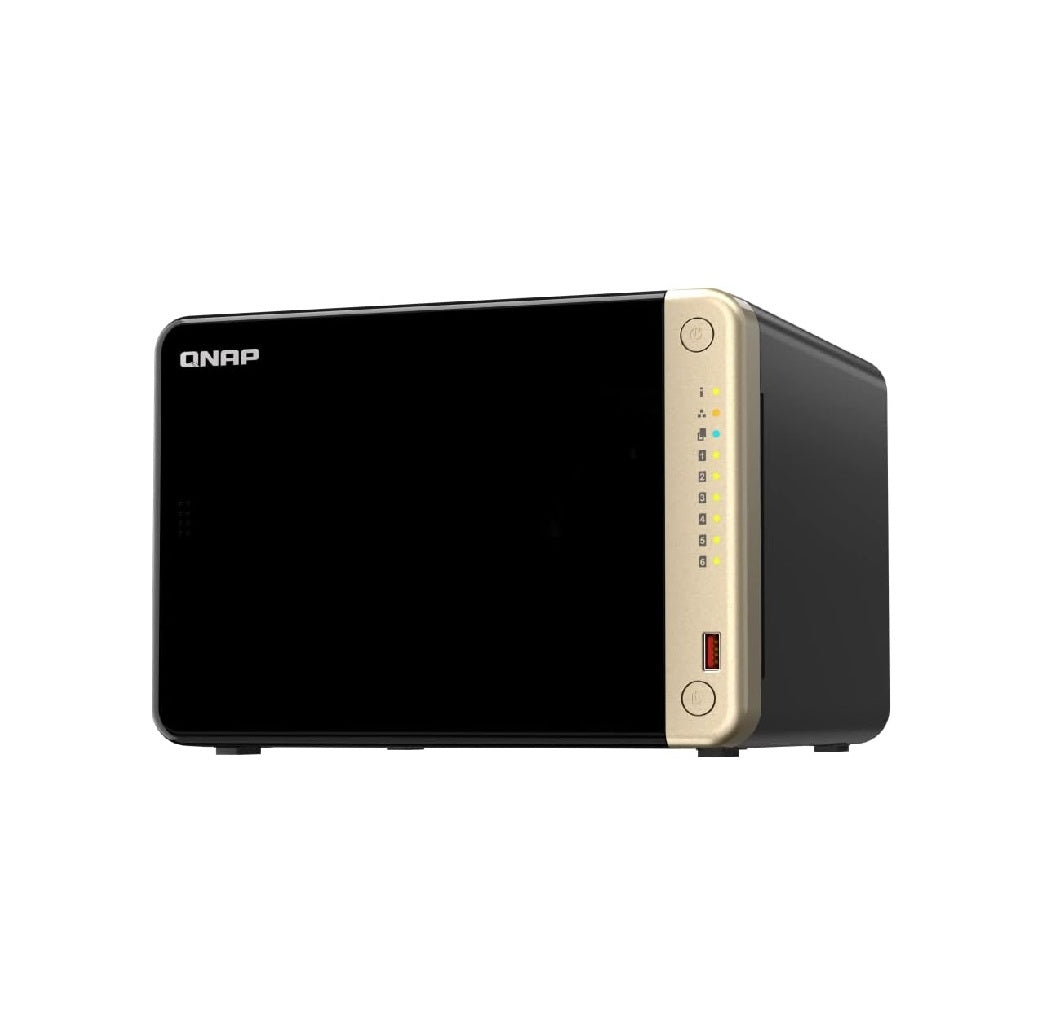

Model | QNAP TS-664-8G |
CPU | |
CPU Model | Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x 86 |
CPU Core | 4 |
CPU Frequency | 2.9 GHz |
Graphic Processors | Intel UHD Graphics |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory Capacity | 16 GB (2 x 8GB) |
Memory Slot | 2 x SODIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Storage | |
Drive Bays | 6 x 3.5-inch SATA 6Gb/s |
Compatible Drive Type |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |
Hot Swappable Drive | Yes |
External Ports | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
USB 2.0 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
PCIe Slot | Slot 1: PCIe Gen 3 x2 |
HDMI Output | 1 x HDMI 2.1 (up to 4096 x 2160 @ 60Hz) |
File System | |
Supported Client OS | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 |
Supported Browsers | Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
LUN feature | LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking WWPN Aliases Import/Export FC Port Group FC Port Binding Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |
System Fan | 2 x 90mm, 12VDC |
System Warning | Buzzer |
Power Consumption |
23.22 (Disk Standby Mode)
44.02W (Operating Mode) |
LED Indicators |
Status
Power USB LAN Drive 1-4 M.2 SSD 1-2 |
Buttons |
Power
Reset USB Auto Copy |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 165 × 235 × 226.5 mm |
Net Weight | 2.94kg |
Warranty | 3 Year Brand Warranty |
Package Contents | TS-664 Ethernet cable x 1 Power cord x 1 Flat head screw (for 3.5" HDD) x 18 Flat head screw (for 2.5" HDD) x 18 AC Adapter Quick installation guide (QIG) |
