Description
High-Performance Processor: This NAS is powered by an Intel® Xeon® E-2378 processor, featuring 8 cores and 16 threads, with a base clock speed of 2.6 GHz and a turbo boost up to 4.8 GHz. This ensures exceptional performance for demanding business applications.
Extensive Memory Capacity: It comes with 64 GB of ECC DDR4 memory, which can be expanded up to 128 GB. The ECC (Error-Correcting Code) memory helps in detecting and correcting data corruption, ensuring data integrity and system reliability.

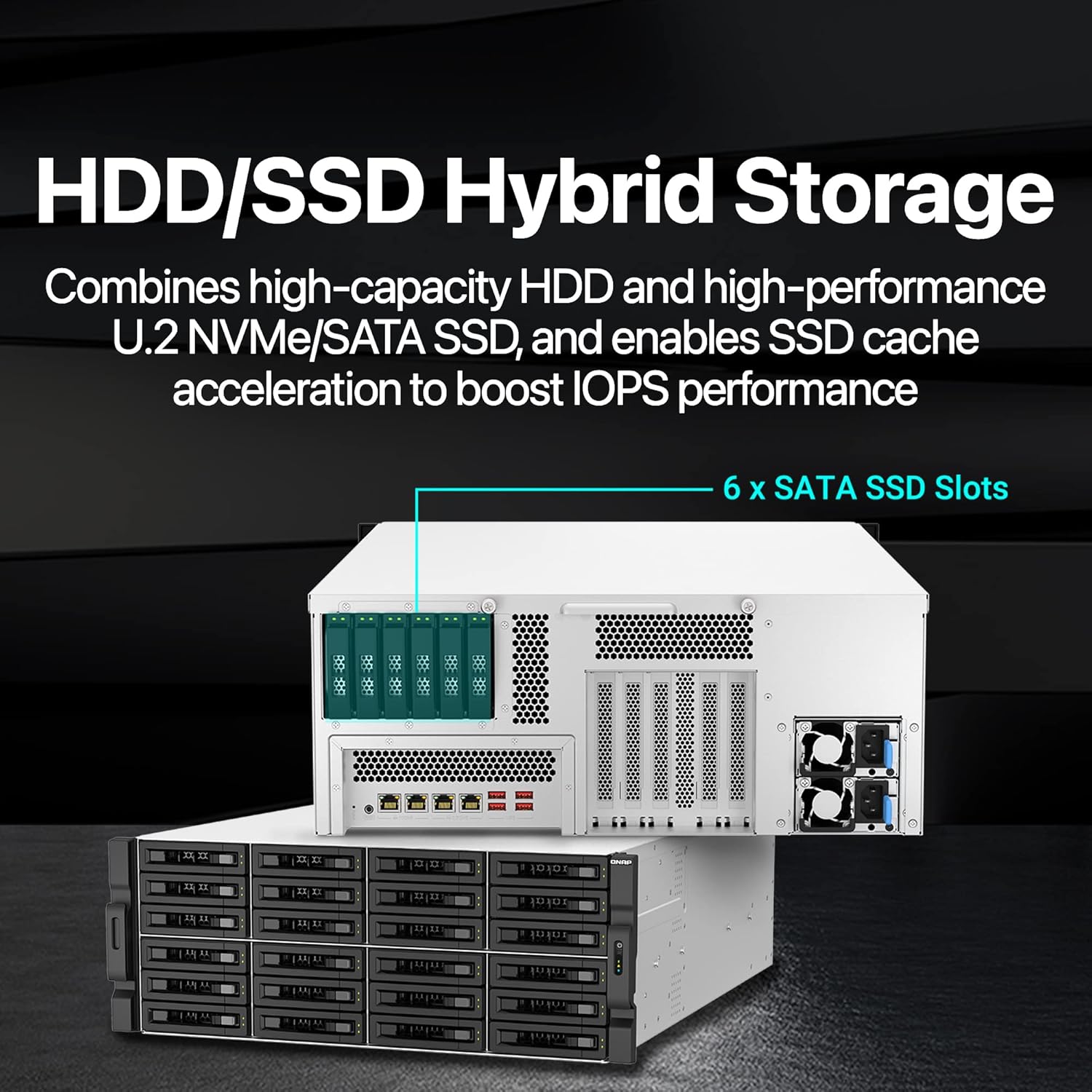

Versatile Storage Options: The NAS offers 30 drive bays, including 24 x 3.5-inch SATA bays for HDDs and 6 x 2.5-inch SATA bays for SSDs. This hybrid storage setup allows for a flexible combination of high-capacity HDDs and high-performance SSDs, catering to diverse storage requirements.

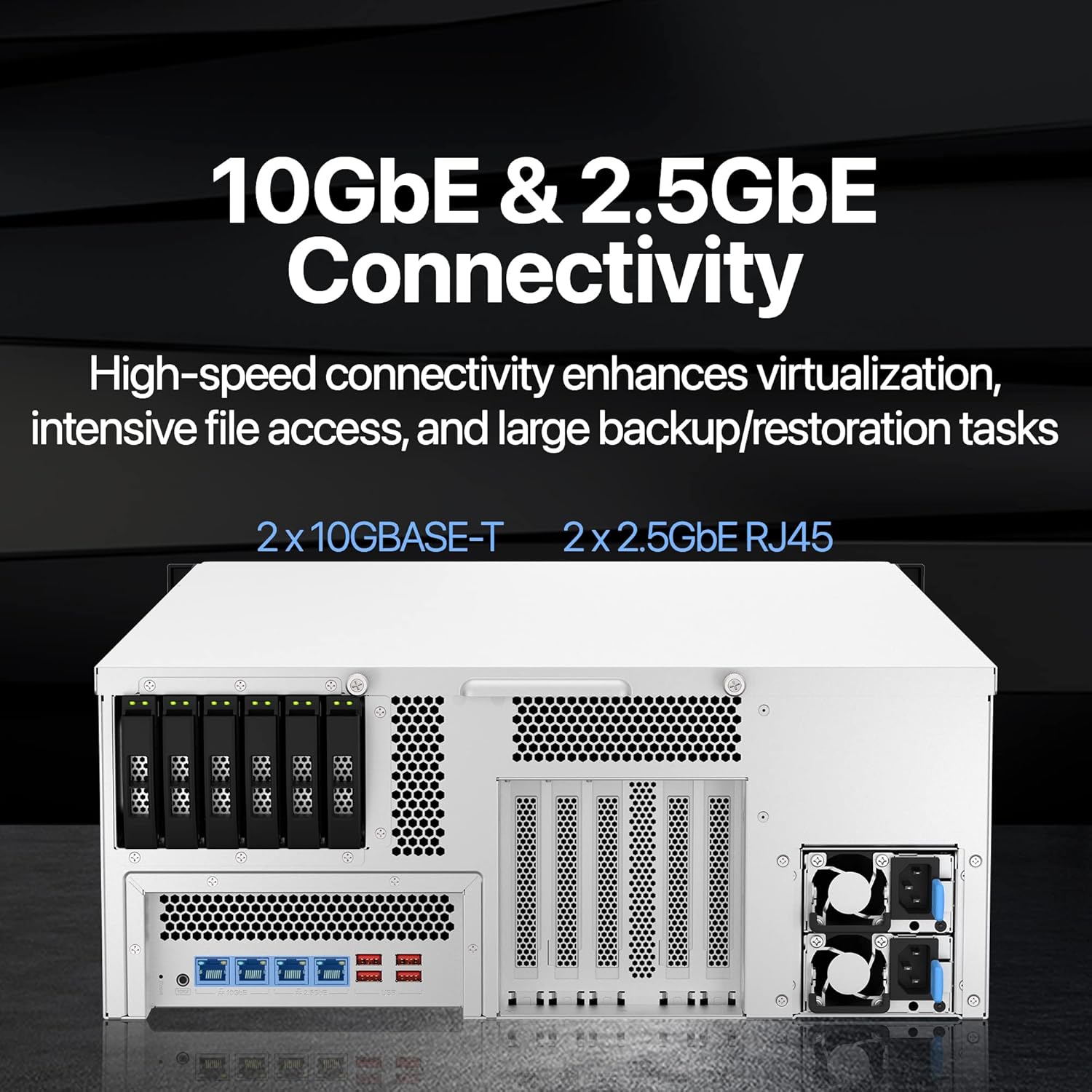

High-Speed Connectivity: Equipped with dual 10GbE and dual 2.5GbE ports, the NAS provides fast and reliable network connections. This is particularly beneficial for data-intensive tasks such as virtualization, large-scale file transfers, and backup operations.
Advanced Data Management with QuTS hero: The NAS runs on the ZFS-based QuTS hero operating system, which offers advanced features like inline data deduplication, near-limitless snapshots, and real-time SnapSync. These features enhance data protection, storage efficiency, and overall system performance.
| Model | TS-h3087XU-RP-E2378-64G |
| CPU | Intel Xeon E-2378 8C 16T 2.6GHz, up to 4.8GHz |
| Graphic Processors | Optional via a PCIe adapter |
| CPU Architecture | 64-bit x86 |
| System Memory | 64 GB ECC DDR4 (2 x 32 GB) |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 30 (24 x 3.5-inch SATA + 6 x 2.5-inch SATA) |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| 2.5 Gigabit Ethernet Port | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |

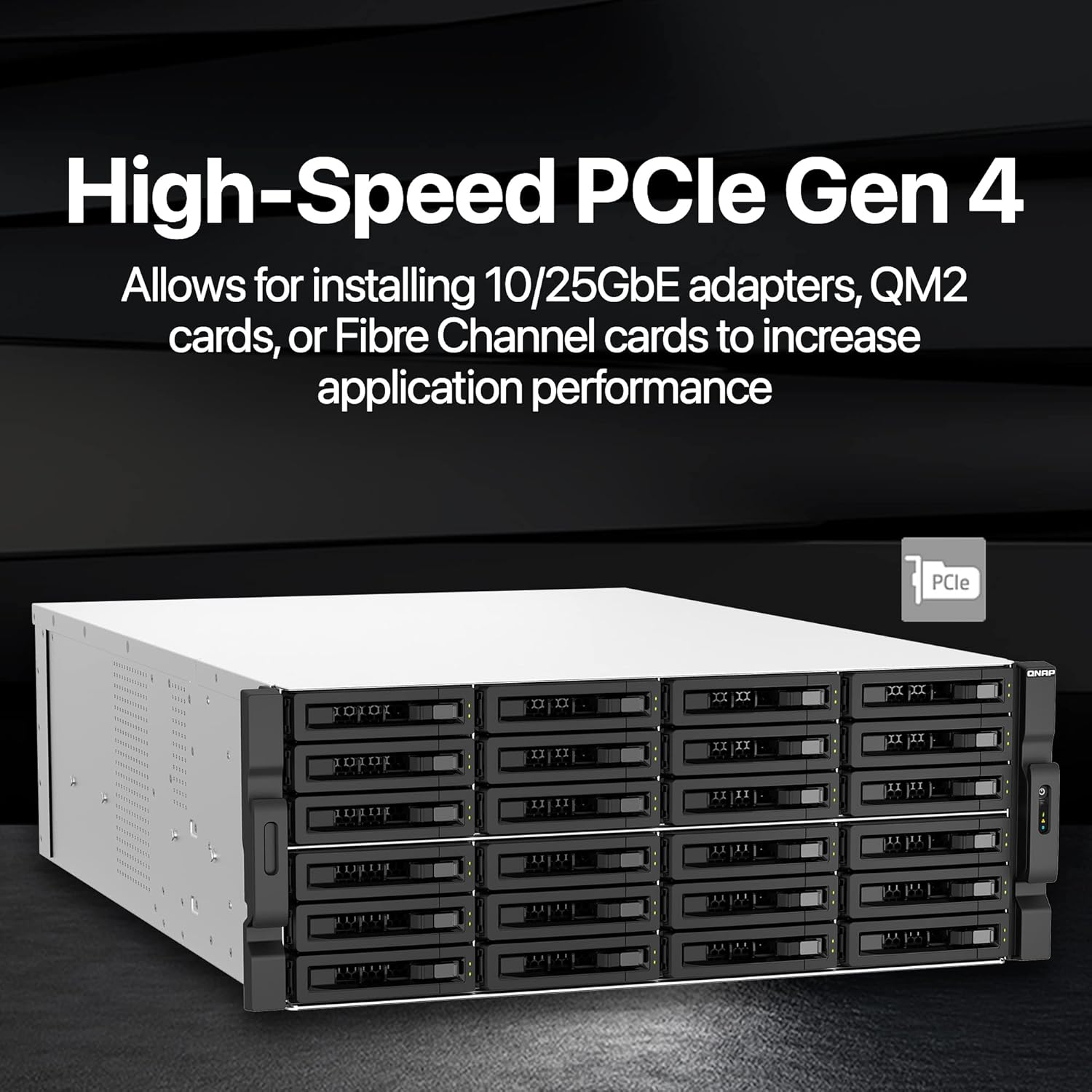

| PCIe Slot | 3 (2 x Gen4 x4 +1 x Gen 4 x8) |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Power Supply Unit | 800W (x2) PSU |
| Power Consumption | Disk Standby Mode: 149.92 Operating Mode, Typical: 219.03 W |
| Fan | 4 x 80mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 Years |
| Dimensions | 131.3 × 432 × 511.5 mm |
| Package Contents | TS-H3087XU-RP 10GBASE-T Ethernet cable x 1 Power cord x 2 Flat head screw (for 3.5" HDD) x 96 Flat head screw (for 2.5" HDD) x 120 Quick installation guide (QIG) |
