Description

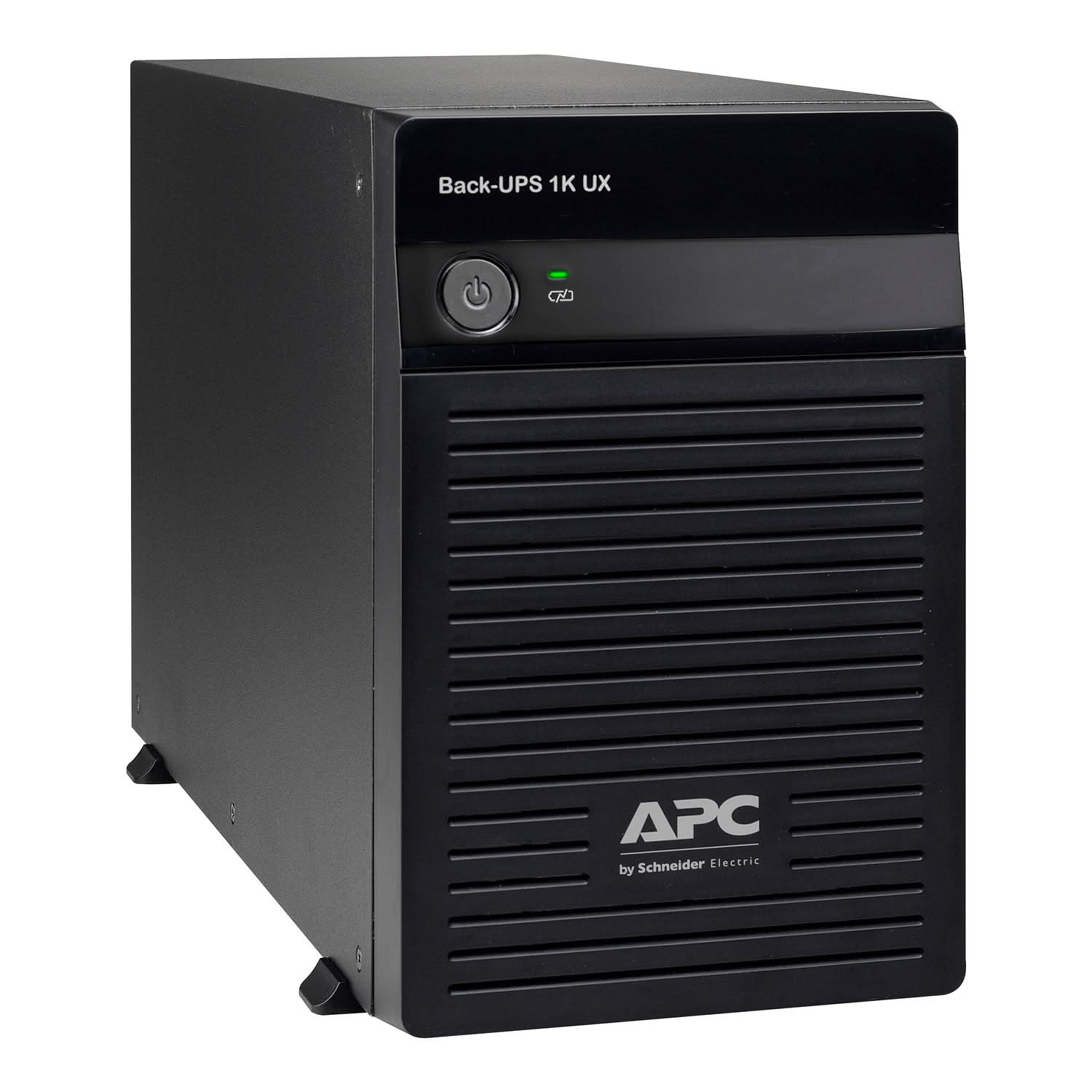

The APC Back-UPS BX1000UXI is a powerful and flexible uninterruptible power supply designed to deliver long backup times and reliable protection for your IT and electronic equipment. With a capacity of 1000VA/600W, this UPS is ideal for homes, small offices, and areas with frequent power fluctuations.
Built by Schneider Electric, the BX1000UXI supports both SMF and tubular batteries, giving users the freedom to connect batteries of any size. Its selectable charging current (5A/10A/15A/20A) ensures optimal charging performance based on the battery type and capacity. The UPS features 4 Indian output sockets, a separate charging LED, and a resettable circuit breaker for added safety and convenience.
Thanks to its wide input voltage window (140V–300V) and genset compatibility (40Hz–70Hz), the BX1000UXI is perfectly suited for challenging power environments. It delivers a stepped sinewave output and has a fast transfer time of 4–10 ms, ensuring your devices stay protected and operational during outages. With a 2-year warranty, this UPS offers dependable performance and peace of mind.
Key Features:
-
Power Capacity: 1000VA / 600W – ideal for home and office electronics.
-
Battery Compatibility: Supports SMF and tubular batteries (external, not included).
-
Selectable Charging Current: 5A, 10A, 15A, or 20A – connect any size battery.
-
Wide Input Voltage Range: Operates from 140V to 300V – perfect for low-voltage areas.
-
Genset Compatible: Works with generators across a 40Hz–70Hz frequency range.
-
Fast Transfer Time: 4–10 ms typical, 15 ms max – ensures minimal disruption.
-
Output Voltage: 230V stepped sinewave output for stable power delivery.
-
User-Friendly Design: 4 Indian output sockets and separate charging LED.
-
Safety Features: Resettable circuit breaker for overload protection.
-
Compact & Durable: Dimensions – 392 x 145 x 220 mm; Weight – 9.3 kg.
-
Environmental Tolerance: Operates in 0–40°C with up to 95% non-condensing humidity.
-
Warranty: 2-year manufacturer warranty for reliable support.
Specifications
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Back-UPS |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated Power (W) | 600 W |
| Rated Power (VA) | 1000 VA |
| Maximum Configurable Power (W) | 600 W |
| Maximum Configurable Power (VA) | 1000 VA |
| Output Frequency | 50 Hz ± 1 Hz (unsynchronized) |
| UPS Type | Square |
| Waveform | Stepped approximation to a sinewave |
| Efficiency (Full Load) | 92% |
| Transfer Time | 8 ms typical / 12 ms max |
| Output Connection Type | 4x India 3-pin 6A |
| Cable Length | 1.5 m |
| Battery Type | External battery system |
| Battery Voltage | 12 V |
| Battery Charger Power | 288 W rated |
| Extended Runtime | 0 |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| Power Module Free Slots | 0 |
| Power Module Filled Slots | 0 |
| Redundant | No |
| Plug Standard | India 3-pin 6A |
| Input Voltage Limits | 140–300 V |
| Network Frequency | 40–70 Hz auto sensing |
| Colour | Black |
| Height | 22 cm |
| Width | 14.5 cm |
| Depth | 39.2 cm |
| Product Weight | 9.3 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 ft |
| Storage Temperature | 0–45 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–3048 m |
| Acoustic Noise Level | 50 dBA |
| IP Protection Rating | IP20 |
| Control Panel | LED status display with online / battery indicators |
| Surge Energy Rating | 160 J |
| Certifications | BIS |
| Provided Equipment | User manual |
| Package Type | PCE |
| Units per Package | 1 |
| Package Height | 33.5 cm |
| Package Width | 23.5 cm |
| Package Length | 47.7 cm |
| Package Weight | 10.2 kg |
| Warranty | 2 years (repair or replace) |
