Description
About the item:

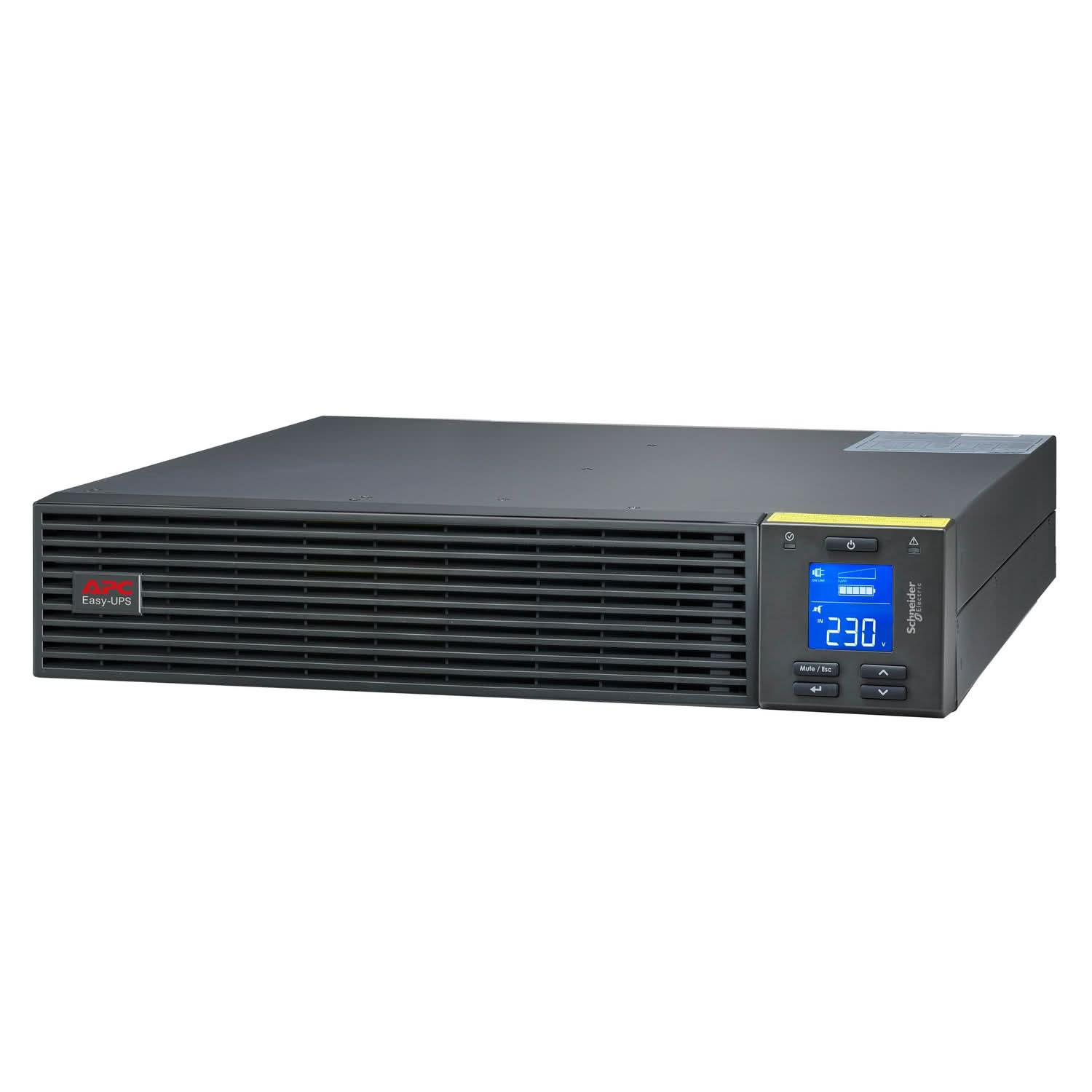

- Premium Double-Conversion Protection: 1000VA/800W On-Line UPS delivers constant, pure sine wave power, ideal for safeguarding sensitive servers, network devices, and critical IT equipment.
- Optimized for Unstable Power: Features a wide input voltage range (160-280V full load, 110-280V half load), making it highly suitable for fluctuating power conditions in India.
- Rackmount 2U Design: Space-saving rack-mountable 2U form factor (no rail kit included) seamlessly integrates into existing server racks for efficient space utilization.
- Reliable Battery Backup: Provides up to 12 minutes of runtime at half load (4 minutes at full load) with built-in 3 x 12V 7Ah sealed lead-acid batteries, ensuring safe shutdowns.
- Intuitive LCD Display: Multi-function LCD display along with LED indicators and audible alarms provides real-time UPS status, battery level, and alerts for easy monitoring.
- Smart Connectivity: Includes 4 India 6A outlets, USB and RS-232 ports, plus an Intelligent Slot for optional network management cards for remote monitoring and control.
- Energy Efficient: Achieves up to 88% efficiency in double-conversion mode and 95% in ECO mode, helping reduce energy consumption and operating costs.
- Enhanced Safety: Features Emergency Power Off (EPO) support and is generator compatible for robust power continuity.
- 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for dependable performance and peace of mind.
Key Features:
-
Power Capacity: 1000 VA / 800 W – ideal for small servers, routers, and workstations.
-
Topology: True double-conversion online UPS – delivers clean and consistent power.
-
Input Voltage Range: 160–280V (full load), 110–280V (half load) – suitable for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Battery Backup: 3 x 12V 7Ah sealed lead-acid batteries; 12 minutes at half load, 4 minutes at full load.
-
Recharge Time: 4 hours to 90% capacity.
-
Efficiency: Up to 88% in double-conversion mode, 95% in ECO mode – reduces energy costs.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management.
-
Display: Multi-function LCD with LED indicators for real-time system status.
-
Safety: Emergency Power Off (EPO) with NC contacts.
-
Design: Rack-mountable 2U form factor; dimensions: 438 x 86.2 x 412.2 mm; weight: 13.6 kg.
-
Environment: Operates at 0–40°C, <50 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Parameter | Specification |
|---|---|
| Presentation | High quality, double-conversion online UPS for unstable power conditions |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) – Double Conversion Online |
| Range of Product | Easy UPS On-Line |
| Rated Power | 800 W / 1000 VA |
| Runtime at Full Load (800W) | 4 minutes 21 seconds |
| Min–Max Supported Load | 80–800 W |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V (Other: 220 V / 240 V) |
| Input Voltage Range | 110–280 V (half load), 160–280 V (full load) |
| Main Output Voltage | 230 V (Other: 220 V / 240 V configurable) |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 4× India 3-pin 6A |
| UPS Type | Double Conversion Online |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Transfer Time | 0 ms (always online) |
| Harmonic Distortion | ≤ 3% |
| Crest Factor | 3:1 |
| Efficiency (Full Load) | 88% |
| Bypass Type | Internal bypass (automatic and manual) |
| Battery Type | Lead-acid |
| Battery Voltage | 36 V |
| Battery Charger Power | 30 W rated |
| Recharge Time | 4 hours |
| Battery Slots (Filled / Free) | 1 filled / 0 free |
| Extended Runtime Supported | No |
| USB Compatible | Yes |
| Mounting Type | Rack-mounted with kit, 2U, horizontal mounting |
| Included Accessories | IEC to 3-pin India cable, USB cable, RS-232 cable, rack brackets, wall feet, user manual |
| Dimensions (H × W × D) | 8.8 × 43.8 × 41.2 cm |
| Product Weight | 13.6 kg |
| Color | Black (RAL 7010) |
| Operating Temp. | 0–40 °C |
| Storage Temp. | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% (non-condensing) |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 372 BTU/hr |
| Display Panel | Multifunction LCD status and control console |
| Communication Ports | USB, RS-232, SmartSlot |
| Emergency Power Off (EPO) | Yes |
| Alarms | On battery, Low battery, Overload |
| Surge Energy Rating | 600 J |
| IP Degree of Protection | IP20 |
| Certifications | BIS |
| Packaging Dimensions (H × W × L) | 24 × 60 × 50 cm |
| Packaging Weight | 16.8 kg |
| Warranty | 2 years repair or replace |
