About the item

• High-Density Data Center Power: Powerful 20kVA/20kW (Unity Power Factor) True Double-Conversion On-Line UPS delivers premium, uninterrupted, and pure sine wave power for critical enterprise IT, data centers, and industrial operations.
• Exceptional Energy Efficiency: Achieves up to 95% efficiency in online mode and 97% in ECO mode, significantly reducing energy consumption and cooling costs for large-scale deployments.
• Scalable External Battery Solution (Battery Not Included): Designed for extended runtime with external battery systems; features a programmable charger (3-13A) and selectable voltage (±96V to 120V) for ultimate flexibility.
• Versatile Input Compatibility: Supports both single-phase and three-phase input configurations with a wide input voltage range (176-275V full load, 110-300V half load), adapting to diverse power environments.
• Space-Saving Rackmount 3U Design: Compact Rackmount 3U form factor (130.6 x 438 x 689.4 mm) for efficient integration into existing server racks and data center infrastructure.

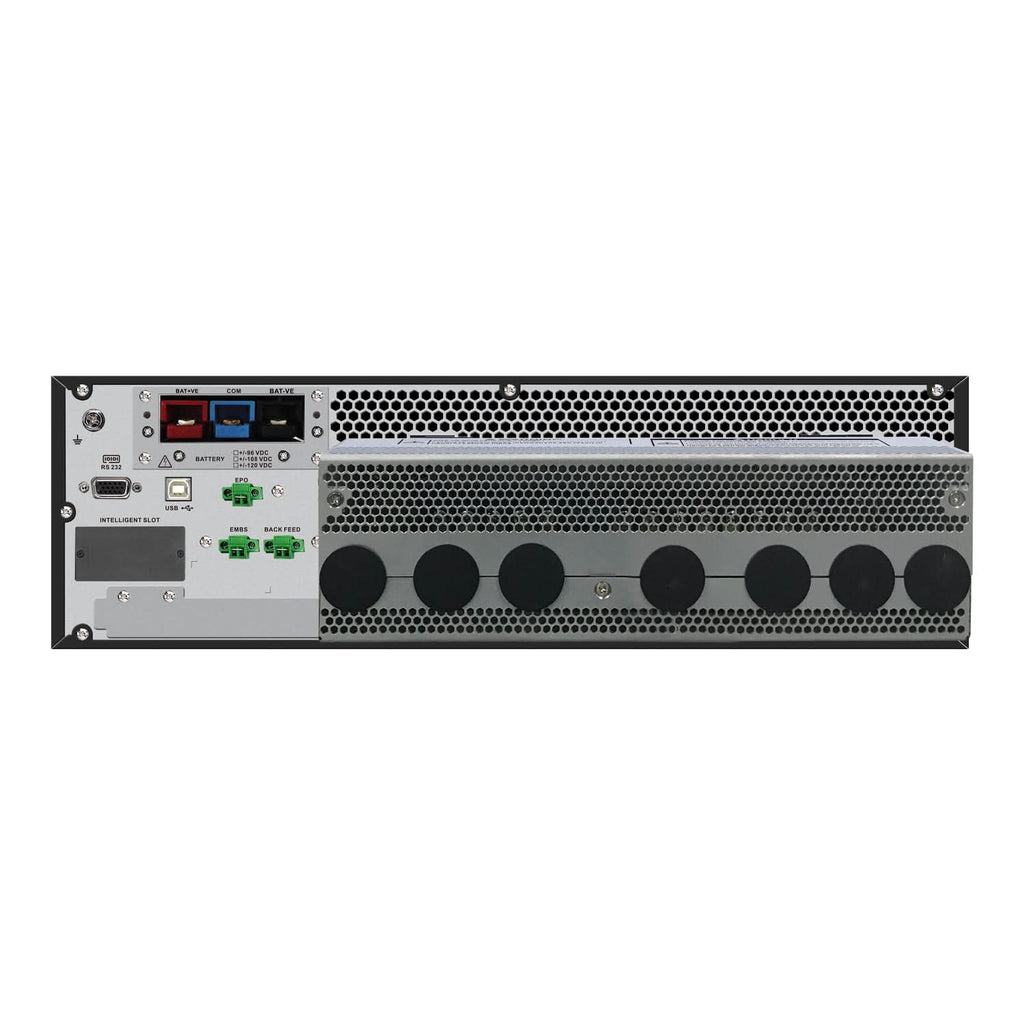

• Comprehensive Management & Safety: Features a multi-function LCD display, USB and RS-232 ports, an Intelligent Slot for network management, Hardwire output, and Emergency Power Off (EPO) for enhanced safety and control.
• Certified for Reliability: BIS and CE certified, ensuring high standards of safety, quality, and dependable performance in demanding critical environments.
• 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind and support.

Key Features:

• Power Capacity: 20,000 VA / 20,000 W – unity power factor for maximum load support.

• Topology: True double-conversion online – ensures clean, uninterrupted power.

• Efficiency: Up to 95% in online mode, 97% in ECO mode – reduces energy and cooling costs.

• Input Voltage Range: 176–275V (full load), 110–300V (half load); supports 1-phase or 3-phase input.

• Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.

• Battery Support: External battery system; selectable voltage (±96V to 120V); 3–13A programmable charger.

• Connectivity: USB, RS-232, and intelligent slot for optional network management cards.

• Display: Multi-function LCD with LED indicators for real-time monitoring.

• Safety: Emergency Power Off (EPO) with NC contacts for emergency shutdown.

• Design: Rack-mountable 3U form factor; dimensions: 130.6 x 438 x 689.4 mm; weight: 29 kg.

• Environment: Operates at 0–40°C, <60 dBA noise level, IP20 protection.

• Certifications & Warranty: BIS, CE, IEC 62040-1/2 certified; 2-year repair or replace warranty.

Specifications
