Description
About the item:
- High-Performance Double-Conversion: 2000VA/1600W On-Line UPS provides constant, pure sine wave power, crucial for critical IT, servers, network closets, and sensitive electronics.
- Built for Unstable Grids: Features a wide input voltage range (160-280V full load, 110-280V half load), ensuring stable operation even in challenging Indian power conditions.

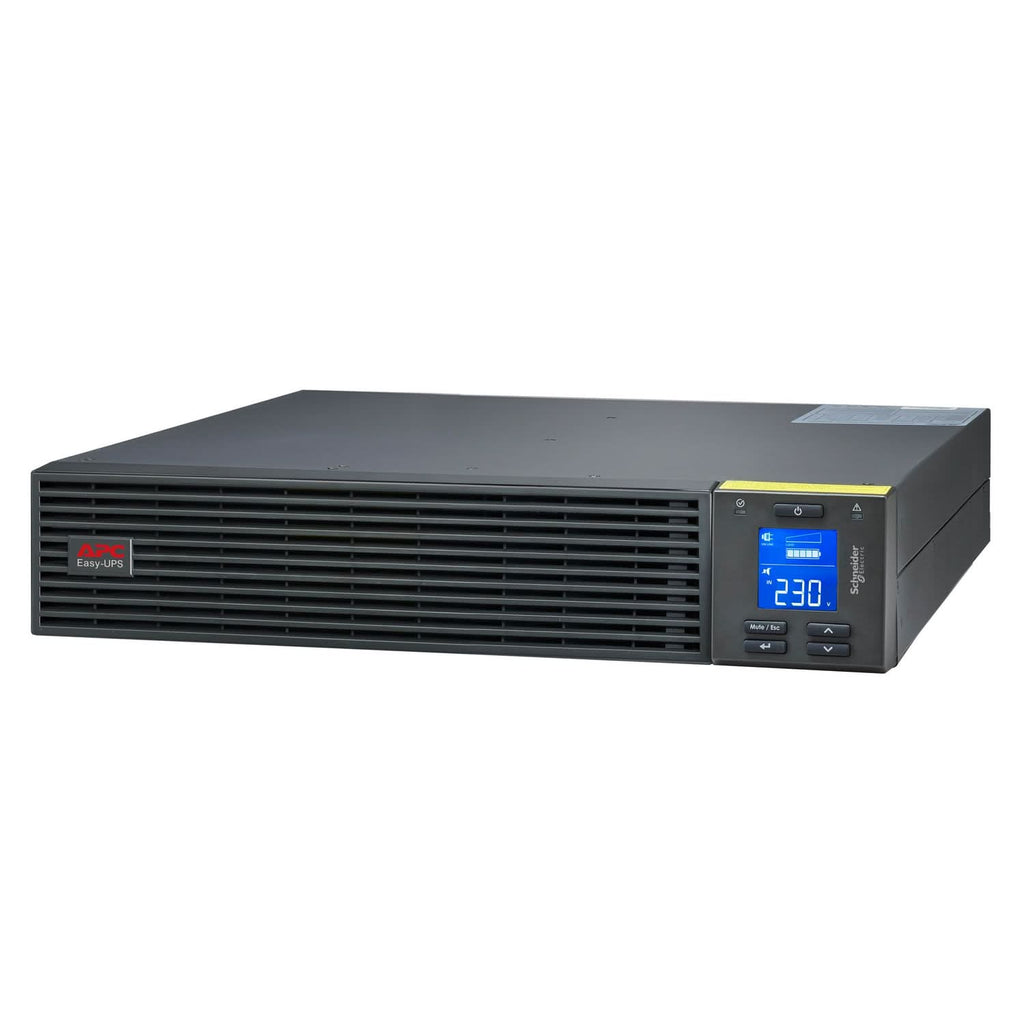

- Rackmount 2U Design: Space-saving rack-mountable 2U form factor (438 x 88 x 462 mm) seamlessly integrates into existing server racks for efficient space utilization.
- Reliable Battery Runtime: Equipped with 4 x 12V 9Ah sealed lead-acid batteries, offering up to 10 minutes of backup at half load (2 minutes at full load) for safe system shutdowns.

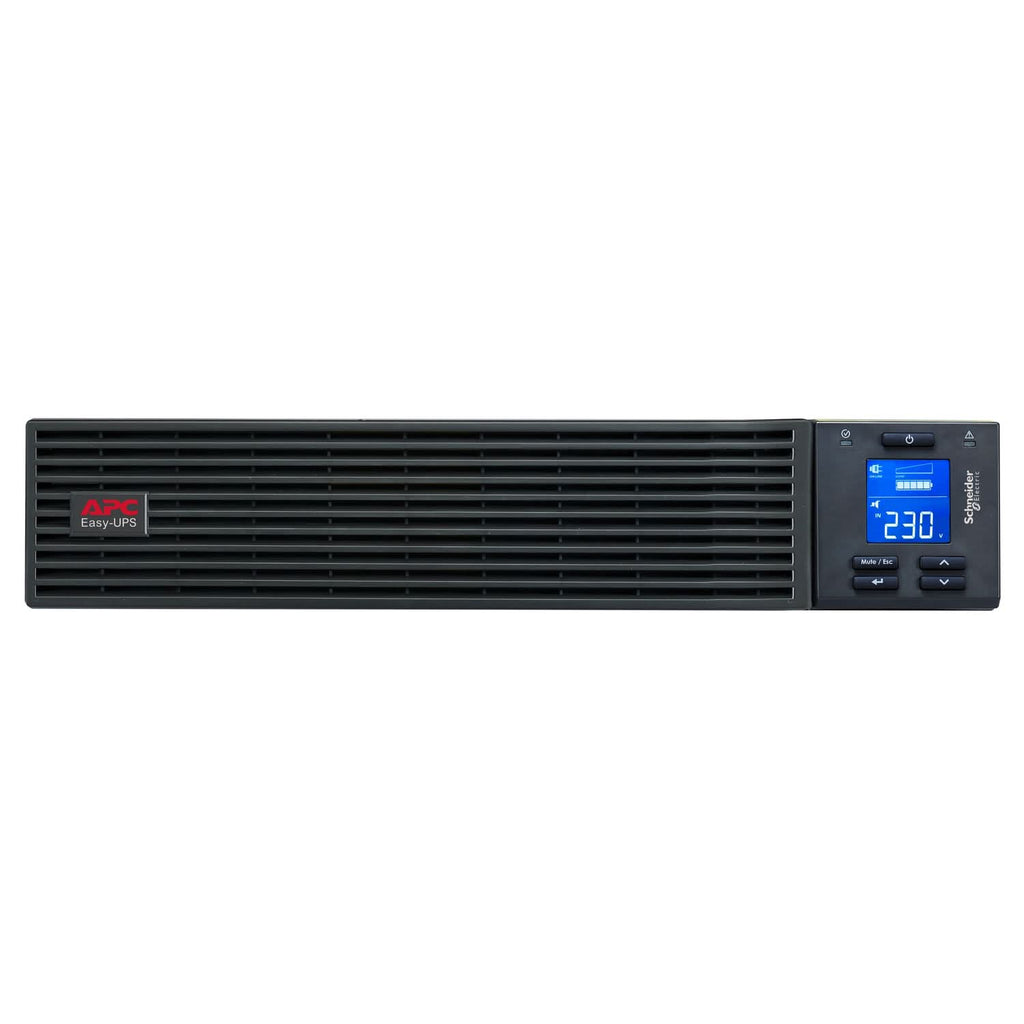

- Intuitive LCD & Alarms: Multi-function LCD display, LED indicators, and audible alarms provide real-time UPS status, battery level, and alerts for easy monitoring.

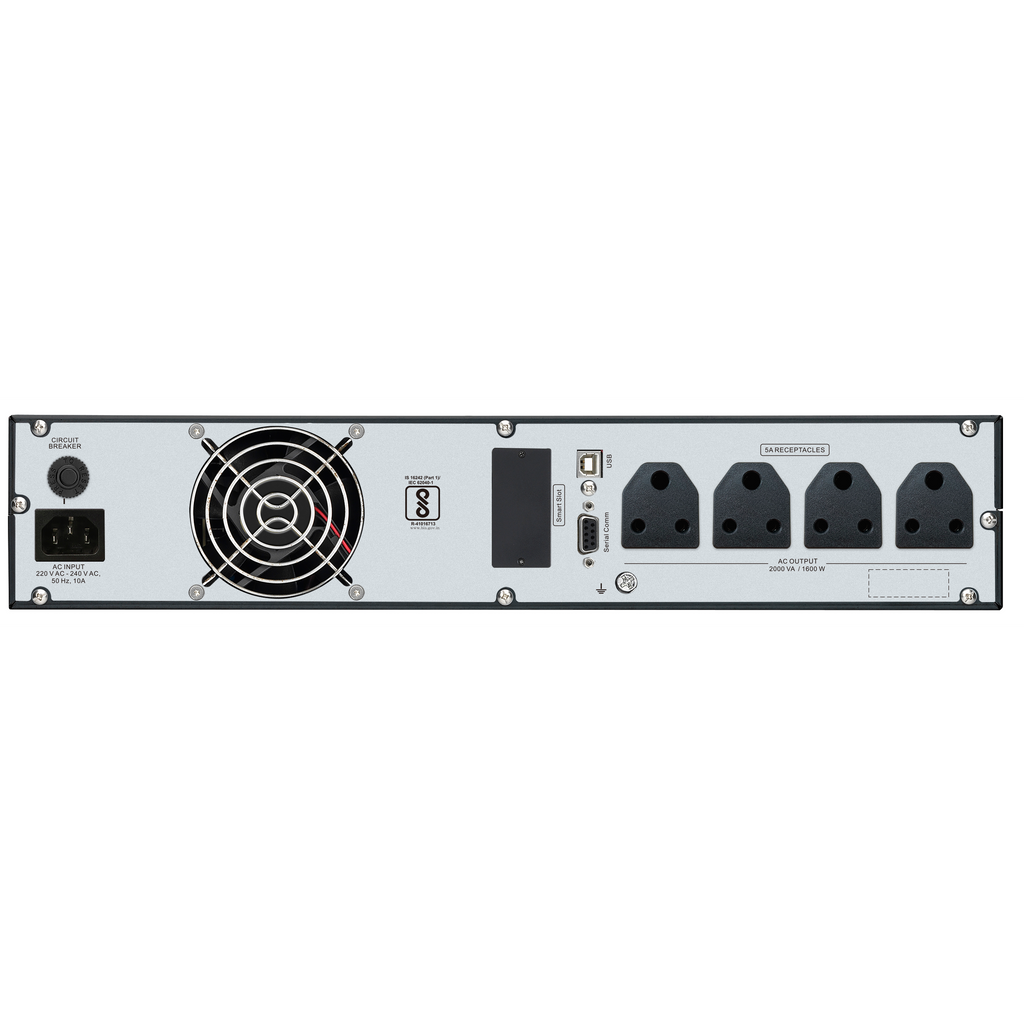

- Smart Connectivity: Includes 4 Indian 6A outlets, USB and RS-232 ports, plus an Intelligent Slot for optional network management cards, enabling remote control and monitoring.
- Energy Efficient: Achieves up to 90% efficiency in double-conversion mode and 95% in ECO mode, reducing energy consumption and operational costs for your business.
- Enhanced Safety & Compatibility: Features Emergency Power Off (EPO) support and is generator compatible for robust power continuity.
- BIS Certified & 2-Year Warranty: BIS certified for quality assurance and backed by a comprehensive manufacturer's 2-year repair or replace warranty for peace of mind.
Key Features:
-
Power Capacity: 2000 VA / 1600 W – suitable for servers, networking gear, and sensitive electronics.
-
Topology: True double-conversion online – ensures clean, uninterrupted power.
-
Input Voltage Range: 160–280V (full load), 110–280V (half load) – ideal for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Battery Backup: 4 x 12V 9Ah sealed lead-acid batteries; 10 minutes at half load, 2 minutes at full load.
-
Recharge Time: 4 hours to 90% capacity.
-
Efficiency: Up to 90% in double-conversion mode, 95% in ECO mode – reduces energy and cooling costs.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management.
-
Display: Multi-function LCD with LED indicators for real-time system status.
-
Safety: Emergency Power Off (EPO) with NC contacts.
-
Design: Rack-mountable 2U form factor; dimensions: 438 x 88 x 462 mm; weight: 19 kg.
-
Environment: Operates at 0–40°C, <50 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 1600 W / 2000 VA |
| Run Time @ Full Load | 0 min 58 sec |
| Max Runtime | 3 minutes |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V AC |
| Other Input Voltage | 220 V, 240 V |
| Input Voltage Limits | 110–280 V (half load), 160–280 V (full load) |
| Input Protection | Circuit breaker |
| Input Frequency | 40–70 Hz auto sensing |
| Input Connector Type | IEC 60320 C14 |
| Switching Current Capacity | 13 A |
| Output Connector Type | 4× India 3-pin 6A |
| UPS Type | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | ≤ 3% |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Efficiency (Full Load) | 88% |
| Battery Type | Lead-acid battery |
| Battery Voltage | 48 V |
| Replacement Battery | APCRBCV201 |
| Extended Runtime | No |
| Battery Slots (Filled / Free) | 1 / 0 |
| Battery Recharge Time | 4 hours |
| Battery Charger Power | 70 W rated |
| Mounting Mode | Rack-mounted with kit |
| Mounting Units | 2U |
| Mounting Location | Front |
| Mounting Position | Vertical |
| Color | Black (RAL 7010) |
| USB Compatible | No |
| Dimensions (H × W × D) | 8.8 × 43.8 × 46.2 cm |
| Product Weight | 19 kg |
| Included Equipment | Power cable, USB cable, RS-232 config cable, rack brackets, wall feet, manual |
| Control Panel | Multifunction LCD status and control console |
| Alarm Types | Audible and visible, prioritized by severity |
| Surge Energy Rating | 600 J |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 745 BTU/h |
| IP Rating | IP20 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% non-condensing |
| Package Dimensions (H×W×L) | 21.8 × 70 × 55 cm |
| Package Weight | 21 kg |
| Warranty | 2 Years Repair or Replace |
