Description
About the item
- High-Capacity Data Center Protection: Powerful 3000VA/2700W Line-Interactive UPS delivers robust, pure sine wave power for high-density IT, servers, storage, and mission-critical equipment in data centers and enterprise environments.
- Optimized for Indian Power: Features Automatic Voltage Regulation (AVR) and a wide input voltage range (151-302V adjustable), ensuring stable and clean power delivery despite fluctuating local conditions.
- Reliable Battery Backup: Equipped with 4 x 17Ah sealed lead-acid batteries, providing up to 13.6 minutes of backup at 50% load and 5.5 minutes at full load for crucial shutdown time.

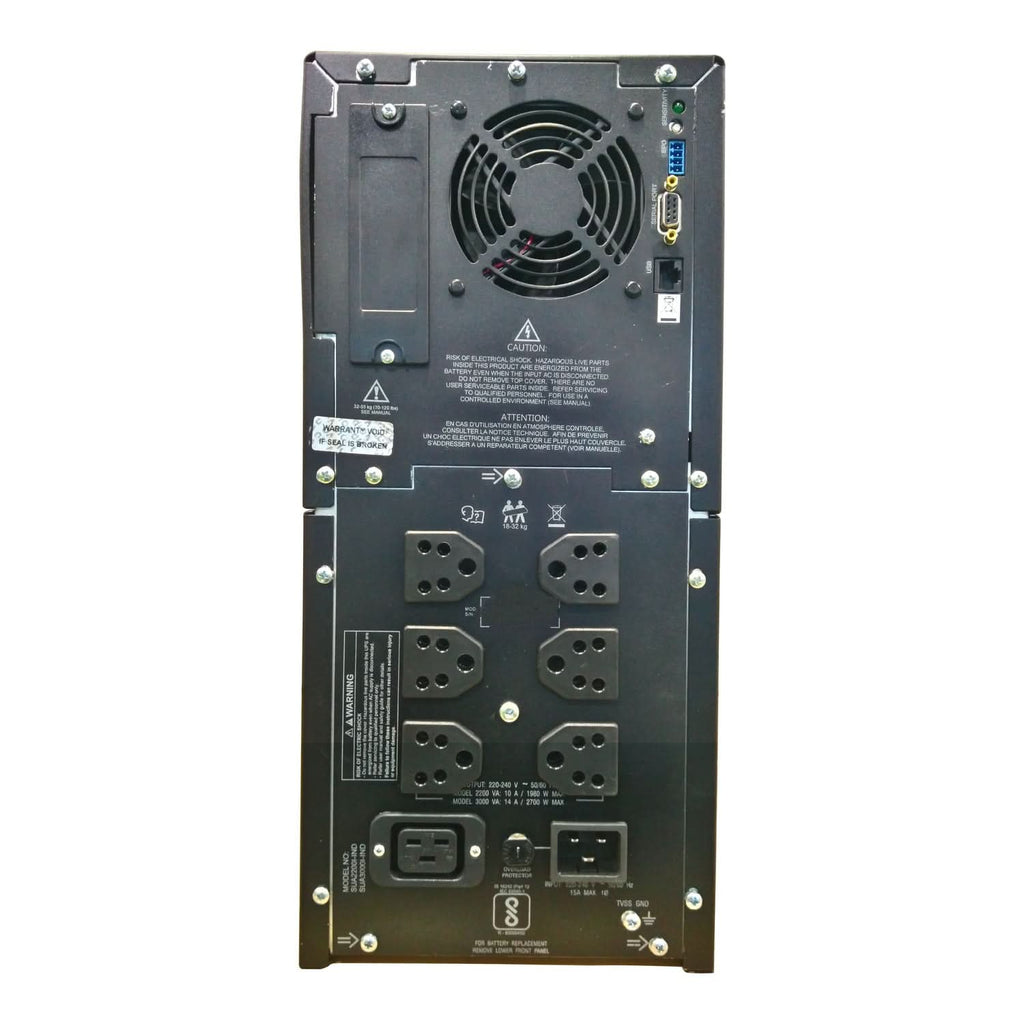

- Comprehensive Connectivity & Management: Includes 6 India 6A outlets, plus USB, serial (DB-9 RS-232), and SmartSlot interfaces for network management cards and seamless integration with PowerChute Business Edition software.
- Intuitive Monitoring & Alerts: LED indicators, load/battery bar graphs, and audible alarms offer clear, real-time status updates on power conditions and battery levels.
- Advanced Surge Protection: Provides 365 Joules of surge protection, effectively safeguarding your valuable data center equipment from damaging voltage spikes.
- User-Replaceable Battery: Designed for simplified maintenance and extended UPS lifespan with a user-replaceable battery, minimizing downtime and service costs.
- Certified Reliability: BIS certified for quality assurance and safety compliance, guaranteeing dependable performance in demanding IT environments.
- 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind and support.
Key Features:
-
Power Output: 3000VA / 2700W – supports high-density IT and enterprise equipment.
-
Input Voltage Range: 165–285V (extended: 151–302V) – optimized for Indian power conditions.
-
Output Voltage: 230V nominal with pure sine wave output.
-
Battery Backup: 4 x 17Ah sealed lead-acid batteries; 5.5 minutes at full load, 13.6 minutes at 50% load.
-
Connectivity: USB, DB-9 RS-232 serial port, and Smart-Slot for optional network management.
-
User Interface: LED status indicators, load and battery bar graphs, and audible alarms.
-
Surge Protection: 365 Joules – protects against voltage spikes and surges.
-
Software Integration: Compatible with PowerChute Business Edition for safe shutdown and energy management.
-
Design: Tower form factor (432 x 196 x 544 mm), 55.79 kg weight.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Category | Specification |
|---|---|
| Availability | Usually in Stock |
| Power Specs | |
| Product Type | Uninterruptible Power Supply (UPS) |
| Rated Power | 2700 W / 3000 VA |
| Load Range | 270–2700 W |
| Runtime @ Full Load | 5 min 31 sec |
| Max Capacity Used | 100% |
| Output Voltage | 230 V (Configurable: 220 / 230 / 240 V) |
| UPS Type | Line Interactive |
| Wave Type | Pure Sine Wave |
| Transfer Time | 2 ms typical |
| Output Frequency | 47–53 Hz for 50 Hz nominal (sync to mains) |
| Efficiency | 95% (at full load) |
| Harmonic Distortion | < 5% |
| Battery & Runtime | |
| Battery Type | Lead-acid |
| Battery Recharge Time | 3 hours |
| Battery Life | 2–4 years |
| Battery Charger Power | 271 W rated |
| Extended Runtime | No |
| Battery Slots (Filled/Free) | 0 / 0 |
| Input | |
| Input Voltage | 230 V |
| Input Range | 151–302 V (adjustable); 160–285 V |
| Input Connection Type | India 3-pin 16A |
| Plug Standard | India 3-pin 16A |
| Network Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Output Connections | |
| 6x India 3-pin 6A | Yes |
| 1x IEC 60320 C19 | Yes |
| Physical | |
| Dimensions (HxWxD) | 43.2 × 19.6 × 54.4 cm |
| Weight | 55.79 kg |
| Mounting | Not rack-mountable |
| USB Compatible | No |
| Environmental | |
| Operating Temp | 0–40 °C |
| Storage Temp | -15–45 °C |
| Humidity (Operating/Storage) | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Acoustic Level | 53 dBA |
| Heat Dissipation | 375 BTU/h |
| Communications & Alerts | |
| Control Panel | LED indicators: on-line, on-battery, replace battery, overload |
| Alarm | On battery, low battery, overload |
| Communication Port | SmartSlot |
| Surge Protection & Filtering | |
| Surge Energy Rating | 365 J |
| Noise Suppression | Full-time multi-pole filtering, UL 1449 compliant |
| Packaging | |
| Package Dimensions (HxWxL) | 68 × 76 × 38 cm |
| Package Weight | 64.86 kg |
| Warranty | 2 years repair or replace |
