Description
About the item

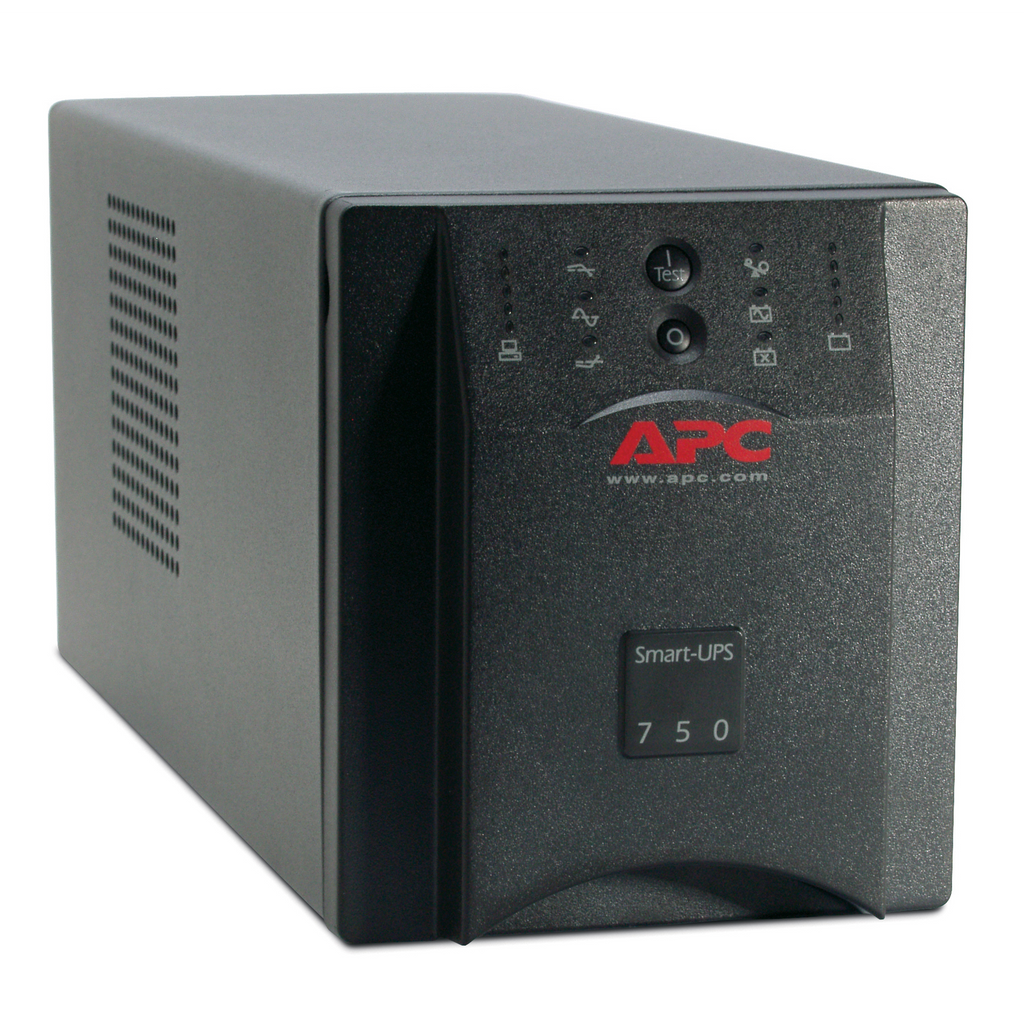

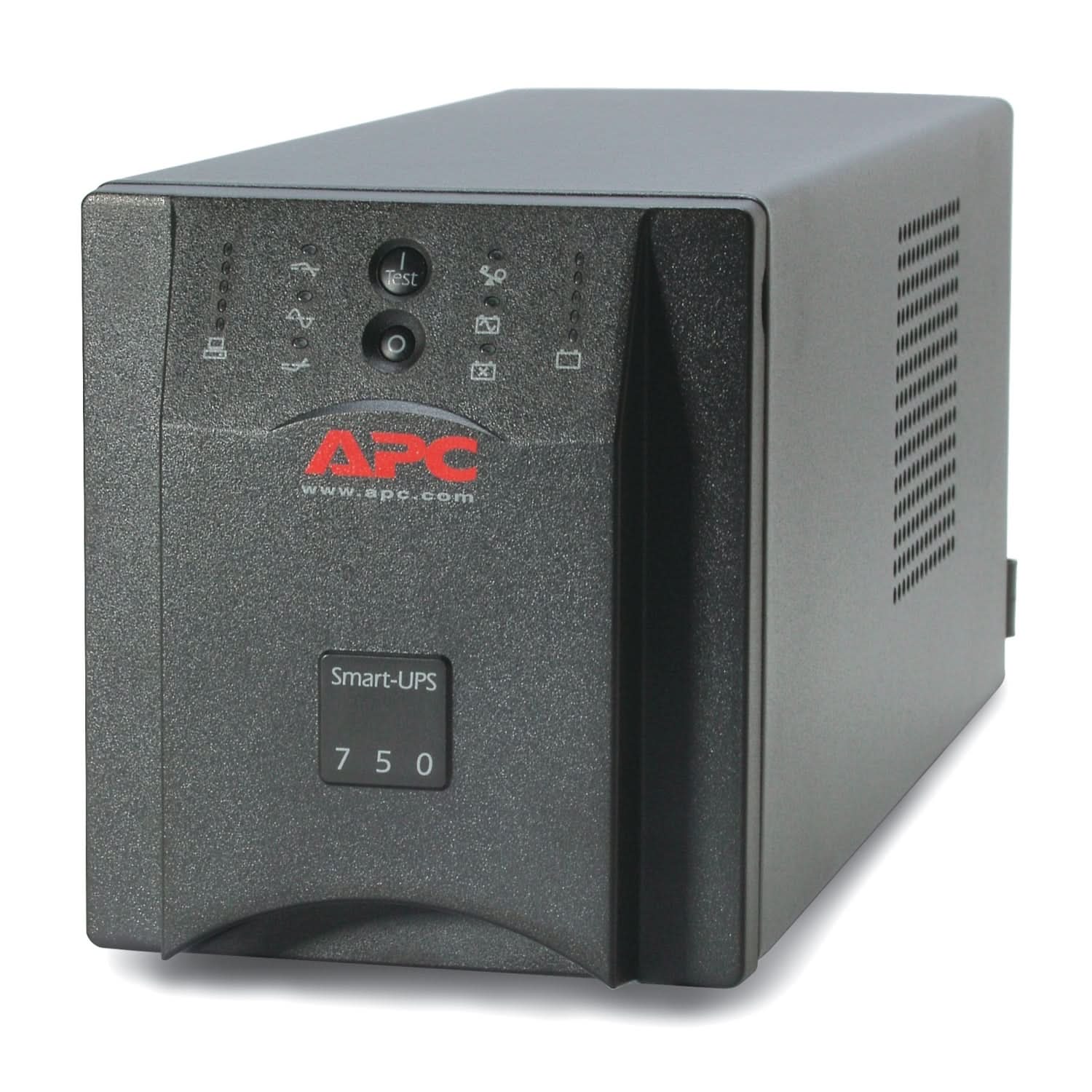

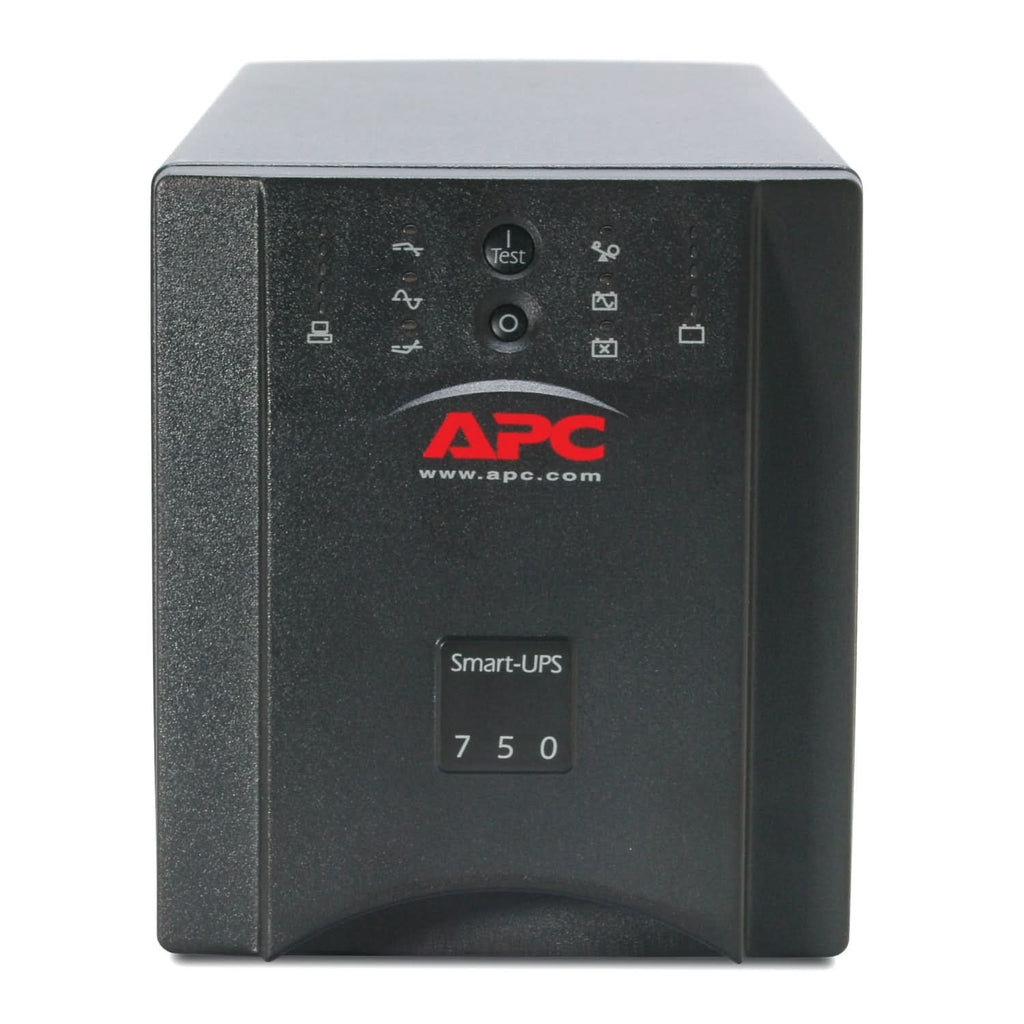

- Compact & Reliable Power Protection: 750VA/500W Line-Interactive UPS provides essential pure sine wave power backup for small servers, networking devices, POS systems, and critical equipment in small businesses and home offices.
- Optimized for Indian Power: Features Automatic Voltage Regulation (AVR) and a wide input voltage range (151-302V adjustable), ensuring stable and clean power delivery despite fluctuating local conditions.
- Sufficient Runtime for Safety: Equipped with 2 x 7Ah sealed lead-acid batteries, offering up to 16.4 minutes of backup at 50% load and 4.8 minutes at full load for safe system shutdowns.
- Smart Connectivity & Management: Includes 4 India 6A outlets, plus USB, serial (DB-9 RS-232), and SmartSlot interfaces for network management cards and remote monitoring via PowerChute Business Edition software.
- Intuitive Monitoring & Alerts: LED indicators, load/battery bar graphs, and audible alarms provide clear, real-time status updates on power conditions and battery levels.
- Effective Surge Protection: Offers 340 Joules of surge protection, effectively safeguarding your valuable IT assets from damaging voltage spikes.
- User-Replaceable Battery: Designed for easy maintenance and extended UPS lifespan with a user-replaceable battery, reducing service costs.
- Certified & Efficient: BIS certified for quality assurance and safety, ensuring reliable and energy-efficient performance.
- 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind and support.
Key Features:
-
Power Output: 750VA / 500W – ideal for small servers, networking devices, and POS systems.
-
Input Voltage Range: 165–285V (extended: 151–302V) – optimized for Indian power conditions.
-
Output Voltage: 230V nominal with pure sine wave output.
-
Battery Backup: 2 x 7Ah sealed lead-acid batteries; 4.8 minutes at full load, 16.4 minutes at 50% load.
-
Connectivity: USB, DB-9 RS-232 serial port, and Smart-Slot for optional network management.
-
User Interface: LED status indicators, load and battery bar graphs, and audible alarms.
-
Surge Protection: 340 Joules – protects against voltage spikes and surges.
-
Software Integration: Compatible with PowerChute Business Edition for safe shutdown and energy management.
-
Design: Compact tower form factor (157 x 137 x 361 mm), 13.15 kg weight.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Category | Specification |
|---|---|
| Availability | Usually in Stock |
| Power Specs | |
| Product Type | Uninterruptible Power Supply (UPS) |
| Rated Power | 500 W / 750 VA |
| Load Range | 50–500 W |
| Max Capacity Used | 100% |
| Output Voltage | 230 V (Configurable: 220 / 230 / 240 V) |
| UPS Type | Line Interactive |
| Wave Type | Sine Wave |
| Transfer Time | 2 ms typical |
| Output Frequency | 47–53 Hz (for 50 Hz sync to mains) |
| Harmonic Distortion | < 5% |
| Battery & Runtime | |
| Battery Type | Lead-acid |
| Battery Recharge Time | 4 hours |
| Battery Replacement Qty | 1 |
| Extended Runtime Support | No |
| Battery Slots (Filled/Free) | 0 / 0 |
| Input | |
| Input Voltage | 230 V |
| Input Range | 151–302 V adjustable; 160–282 V operating |
| Input Connection Type | IEC 60320 C14 |
| Network Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Output Connections | |
| 4x India 3-pin 6A | Yes |
| Physical | |
| Dimensions (HxWxD) | 15.7 × 13.7 × 36.1 cm |
| Weight | 13.15 kg |
| Mounting | Not rack-mountable |
| USB Compatible | No |
| Environmental | |
| Operating Temp | 0–40 °C |
| Storage Temp | -15–45 °C |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Humidity (Op/Storage) | 0–95% |
| Acoustic Level | 41 dBA |
| Communications & Alerts | |
| Control Panel | LED display (on-line, on-battery, replace battery, overload) |
| Alarm | On battery, low battery, configurable delay alarms |
| Communication Port | SmartSlot, RS-232 |
| Packaging | |
| Package Dimensions (HxWxL) | 29 × 50 × 27 cm |
| Package Weight | 14.55 kg |
| Surge Protection | Basic (not specified) |
| Warranty | 2 years repair or replace |
