PRAMA PT-NC143D3-WNM(D2) 4MP Fixed Turret Network Camera | 2K | Smart Dual Light | Built-in Mic | 30m | 120dB WDR | IP67 | 1 Year Warranty

SKU: PT-NC143D3-WNM (D2)

In Stock
0 people are currently viewing this product
₹ 6,900
Taxes included. Free Shipping.
Exclusive Pricing Available
Connect with our team for personalised pricing and the latest available offers on this product. Contact us
4.6
(285 reviews)

ADD-ON PRODUCTS

COMPARE

DESCRIPTION

PRAMA PT-NC143D3-WNM(D2) 4MP Fixed Turret Network Camera | 2K | Smart Dual Light | Built-in Mic | 30m | 120dB WDR | IP67 | 1 Year Warranty

Product Description

The PRAMA PT-NC143D3-WNM(D2) is a 4MP Fixed Turret Network Camera designed for professional indoor and outdoor surveillance. It delivers a maximum resolution of 2560 × 1440 using a 1/3-inch Progressive Scan CMOS sensor and features Smart Dual Light with IR and white-light illumination up to 30 metres. The camera also supports human and vehicle classification, built-in microphone audio, efficient H.265/H.264 compression, and IP67 water and dust resistance.

The camera provides 120dB WDR, BLC, HLC and 3D DNR for improved image performance in challenging lighting conditions. It supports IEEE 802.3af PoE, making installation easier by carrying network connectivity and power through a single Ethernet cable.

Available from Suntronix, a trusted Prama Dealer in Chennai, Tamil Nadu, with product availability and delivery across India.


About This Product

The PRAMA PT-NC143D3-WNM(D2) combines high-resolution 4MP imaging, intelligent target classification, Smart Dual Light and audio monitoring in a compact fixed turret design. The camera supports 2.8mm and 4mm fixed focal lens options, allowing the appropriate field of view to be selected according to the installation requirement.

Its Smart Dual Light system uses IR and white light, with supplementary illumination up to 30m. The camera also includes a built-in microphone with environment noise filtering and supports up to 6-channel simultaneous live view.


Key Features

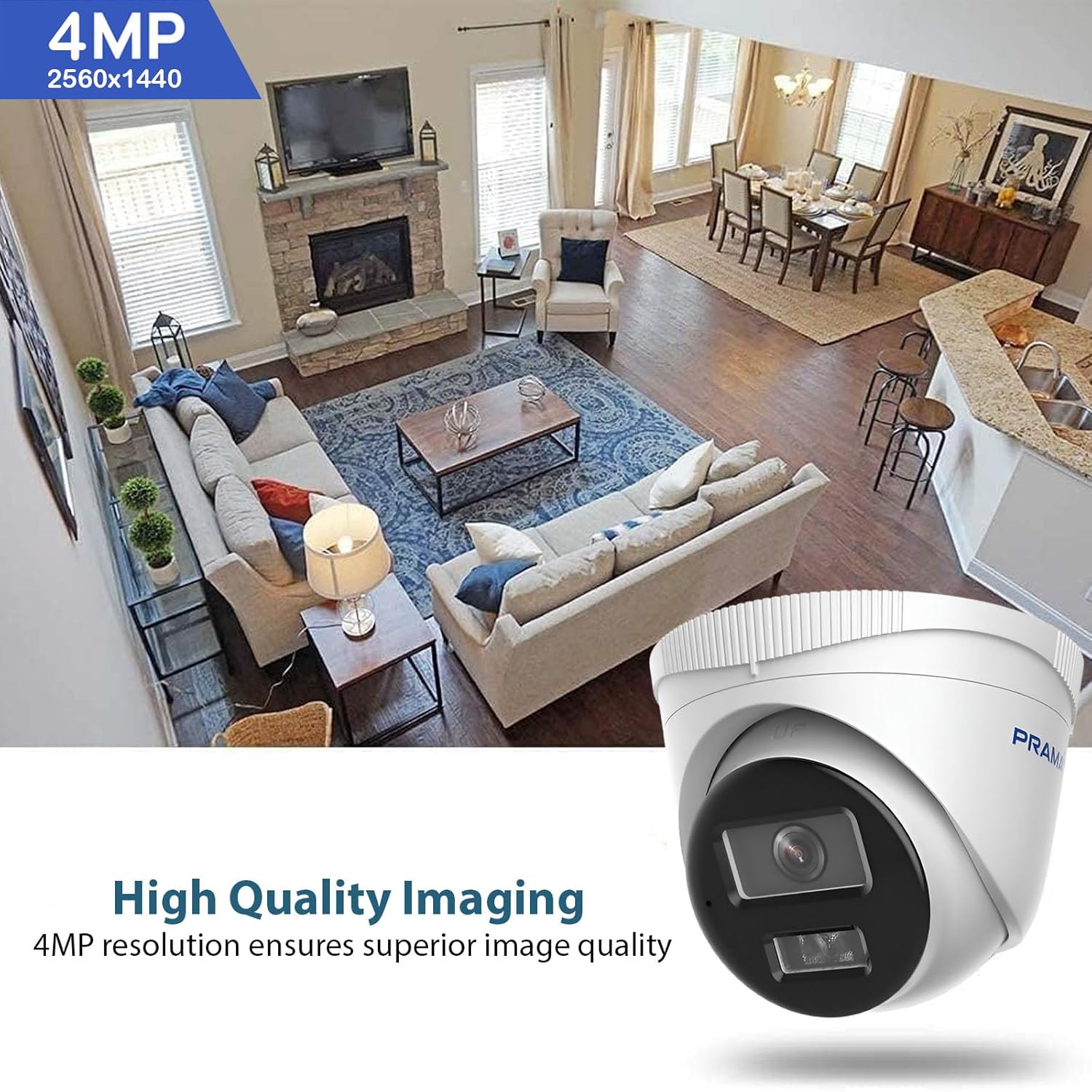

  • 4MP Fixed Turret Network Camera
  • 2560 × 1440 Maximum Resolution
  • 1/3-inch Progressive Scan CMOS
  • Smart Dual Light
  • IR + White Light
  • Up to 30m Supplement Light Range
  • Built-in Microphone
  • Human & Vehicle Classification
  • 120dB WDR
  • BLC / HLC / 3D DNR
  • H.265 / H.264 Video Compression
  • 2.8mm / 4mm Fixed Lens Options
  • IEEE 802.3af PoE
  • IP67 Water & Dust Protection
  • ONVIF Profile S & Profile T
  • Up to 6-Channel Simultaneous Live View
  • 4 Programmable Polygon Privacy Masks
  • English & Hindi Language Support

Ideal Applications

The PRAMA PT-NC143D3-WNM(D2) is suitable for:

  • Homes & Apartments
  • Offices & Corporate Spaces
  • Retail Stores
  • Shops & Showrooms
  • Warehouses
  • Commercial Buildings
  • Educational Institutions
  • Industrial Facilities
  • Parking Areas
  • Residential Communities
  • Outdoor Perimeter Security
  • Government & Institutional Projects
  • Professional CCTV Installations

Why Buy from Suntronix?

With over 25 years of industry experience, Suntronix provides genuine PRAMA security and surveillance solutions in Chennai, Tamil Nadu, and across India. Get professional assistance for IP cameras, NVRs, CCTV systems, surveillance storage and complete security solutions.

SPECIFICATION

Brand

PRAMA

Model

PT-NC143D3-WNM(D2)

Product Type

4MP Fixed Turret Network Camera

Image Sensor

1/3-inch Progressive Scan CMOS

Maximum Resolution

2560 × 1440

Minimum Illumination

Colour: 0.005 Lux @ F1.6, AGC ON
B/W: 0 Lux with IR

Shutter Time

1/3s to 1/100,000s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°

Lens Type

Fixed Focal Lens

Focal Length

2.8mm / 4mm Optional

Field of View

2.8mm: Horizontal 98°, Vertical 54°, Diagonal 114°
4mm: Horizontal 78°, Vertical 42°, Diagonal 93°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI Distance

2.8mm: Detect 63m, Observe 25m, Recognize 12m, Identify 6m
4mm: Detect 78m, Observe 31m, Recognize 15m, Identify 7m

Supplement Light Type

IR + White Light

Supplement Light Range

Up to 30m

Smart Supplement Light

Yes

IR Wavelength

850nm

Main Stream

50Hz: 20fps at 2560 × 1440; 25fps at 1920 × 1080 / 1280 × 720
60Hz: 20fps at 2560 × 1440; 24fps at 1920 × 1080 / 1280 × 720

Sub Stream

50Hz: 25fps at 1280 × 720 / 640 × 480 / 640 × 360
60Hz: 24fps at 1280 × 720 / 640 × 480 / 640 × 360

Video Compression

Main Stream: H.265 / H.264
Sub Stream: H.265 / H.264 / MJPEG

Video Bit Rate

32Kbps to 8Mbps

H.264 Profile

Baseline Profile / Main Profile / High Profile

H.265 Profile

Main Profile

Bit Rate Control

CBR / VBR

Region of Interest

1 Fixed Region for Main Stream

Audio

Mono Sound

Built-in Microphone

Yes

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz / 16kHz

Audio Compression

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Audio Bit Rate

64Kbps G.711ulaw
64Kbps G.711alaw
16Kbps G.722.1
16Kbps G.726
32–160Kbps MP2L2
16–64Kbps AAC-LC

Wide Dynamic Range

120dB WDR

SNR

≥52dB

Image Enhancement

BLC / HLC / 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance

Privacy Mask

4 Programmable Polygon Privacy Masks

Target Classification

Human & Vehicle Classification

Network Interface

1 × RJ45 10/100M Self-Adaptive Ethernet Port

Simultaneous Live View

Up to 6 Channels

ONVIF

Profile S / Profile T

Network Protocols

TCP/IP, UDP, Multicast, NTP, DDNS, SNMP, QoS, IPv4, IPv6, DHCP, DNS, HTTP, HTTPS, RTSP, SRTP/RTSPS, Bonjour, NAT, UPnP, RTCP, ONVIF, SSH, SMTP and ARP

Users

Up to 32 Users

User Levels

Administrator, Operator and User

Security

Password Protection, Complicated Password, Watermark, HTTP Digest Authentication, ONVIF WSSE/Digest Authentication and TLS 1.3

Event Detection

Motion Detection with Human & Vehicle Target Classification, Video Tampering Alarm and Exception

Linkage

Upload to FTP/SFTP, Send Email, Notify Surveillance Centre and Trigger Capture

Power Supply

12VDC ±25%, 0.5A

PoE

IEEE 802.3af, Class 3

Power Consumption

12VDC: Maximum 6W
PoE: Maximum 7.2W

Material

Metal & Plastic

Protection Rating

IP67

Dimensions

Ø112 × 82mm

Package Dimensions

150 × 150 × 141mm

Weight

Approximately 340g

Package Weight

Approximately 560g

Operating Temperature

-30°C to +60°C

Operating Humidity

Up to 95%, non-condensing

Language

English, Hindi

General Functions

Heartbeat, anti-banding, mirror, password protection and password reset via email
