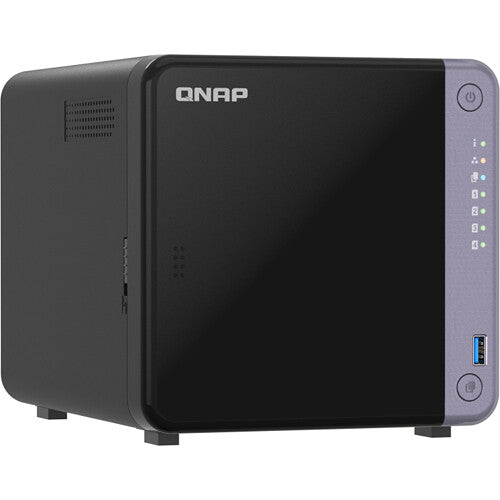

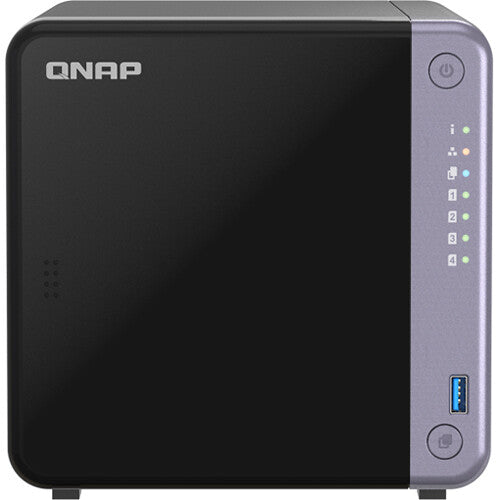

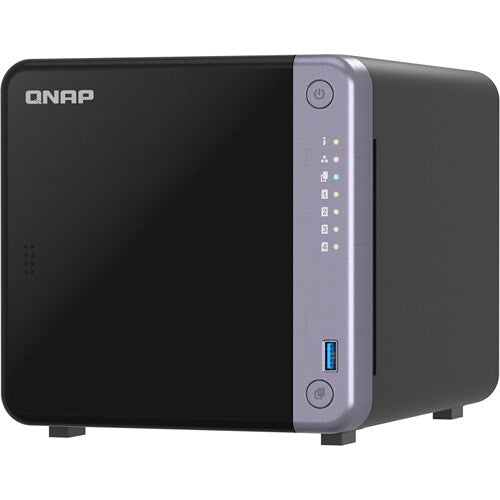

QNAP TS-432X-4G Quad Core 4 Bay 10GbE Desktop NAS with ARM Alpine AL524 - Black
| Model | TS-432X-4G |
| CPU | |
| CPU Model | Alpine AL524 |
| CPU Architecture | 64-bit ARM |
| CPU Core | 4 |
| CPU Frequency | 2.0 GHz |
| Hardware Encryption Engine | Yes(AES-NI) |
| Memory | |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory Capacity | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 Support ECC memory |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Storage | |

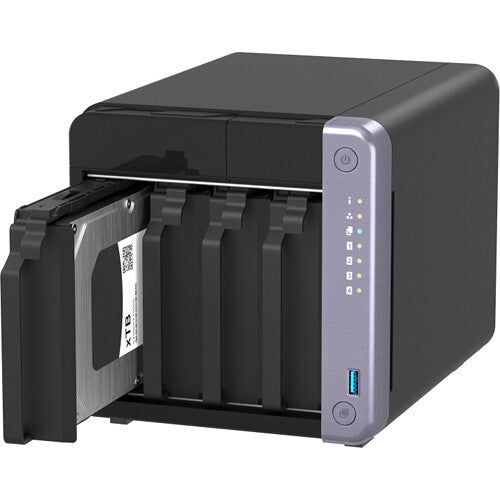

| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Compatible Drive Type |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot Swappable Drive | Yes |

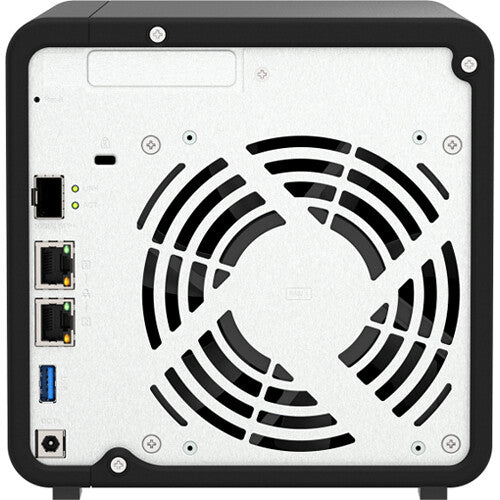

| External Ports | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| PCIe Slot | Slot 1: PCIe Gen 3 x4 |
| USB 3.2 Gen 1 port | 2 |
| File System | |
| Supported Client OS |
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
|
| Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
| LUN feature | LUN Mapping LUN Masking WWPN Aliases Import/Export Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
| RAID Type | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
| Others | |
| System Fan | 1 x 120mm, 12VDC |
| Power Supply Unit / Adapter | 90W adapter (12VDC), 100-240VAC |
| System Warning | Buzzer |
| Buttons | Power Reset USB Auto Copy |
| AC Input Power Voltage | 100V to 240V AC |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| LED Indicators | System Status LAN USB HDD1~2 |
| Miscellaneous | |
| Dimensions(Height x Width x Depth) | 165 × 170 × 226.5 mm |
| Net Weight | 1.99 kg |
| Warranty | 2 Year Standard Warranty |
| Package Contents |
TS-216G
Ethernet cable x 1
Power cord x 1
AC Adapter
Flat head screw (for 3.5" HDD) x 8
Flat head screw (for 2.5" HDD)
Quick installation guide (QIG)
Drive tray keys x 2
|
