StarTech Extreme Networks Compatible 1GbE BiDi Single-Mode Fiber SFP Transceiver | Lifetime Warranty | 10057-ST

Product Description

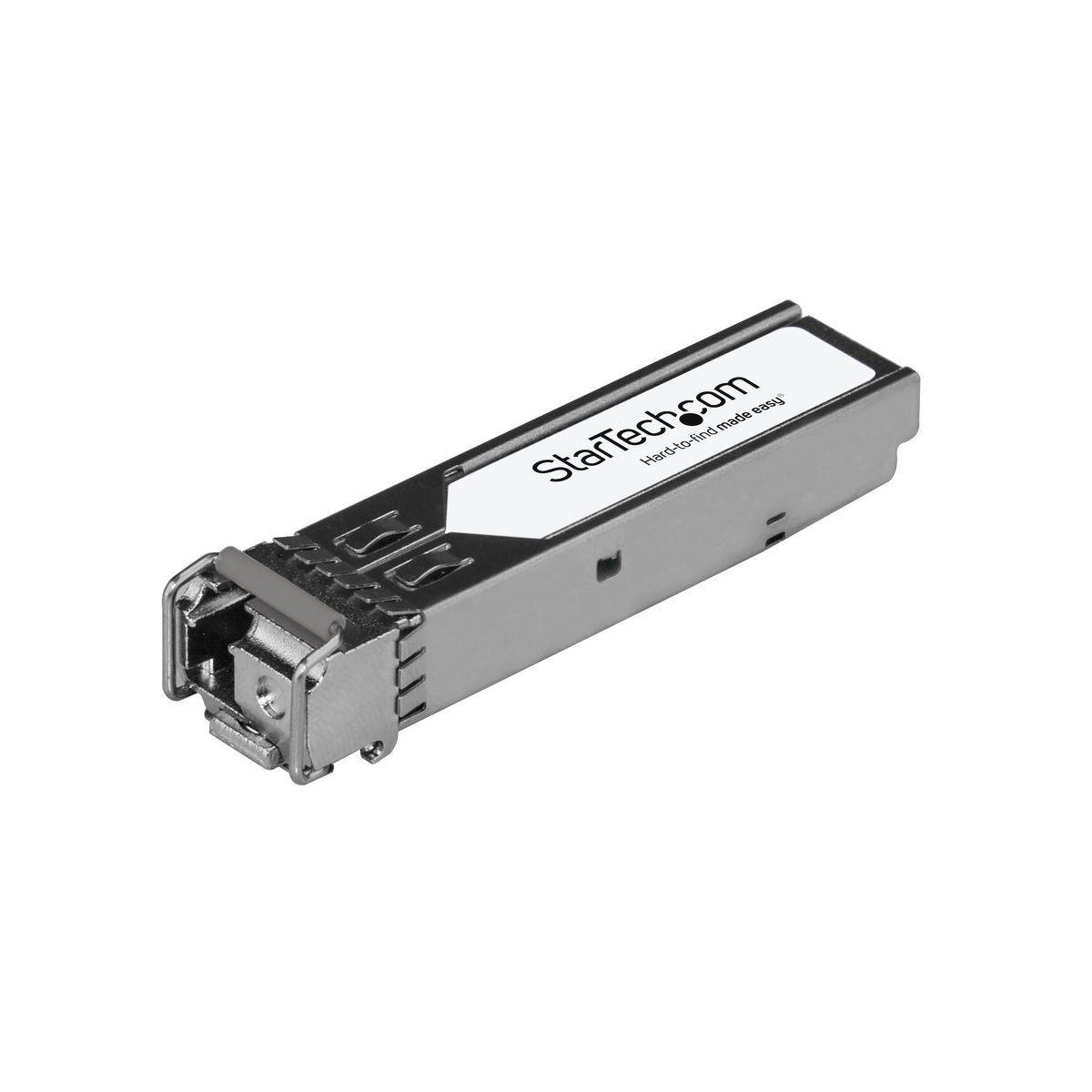

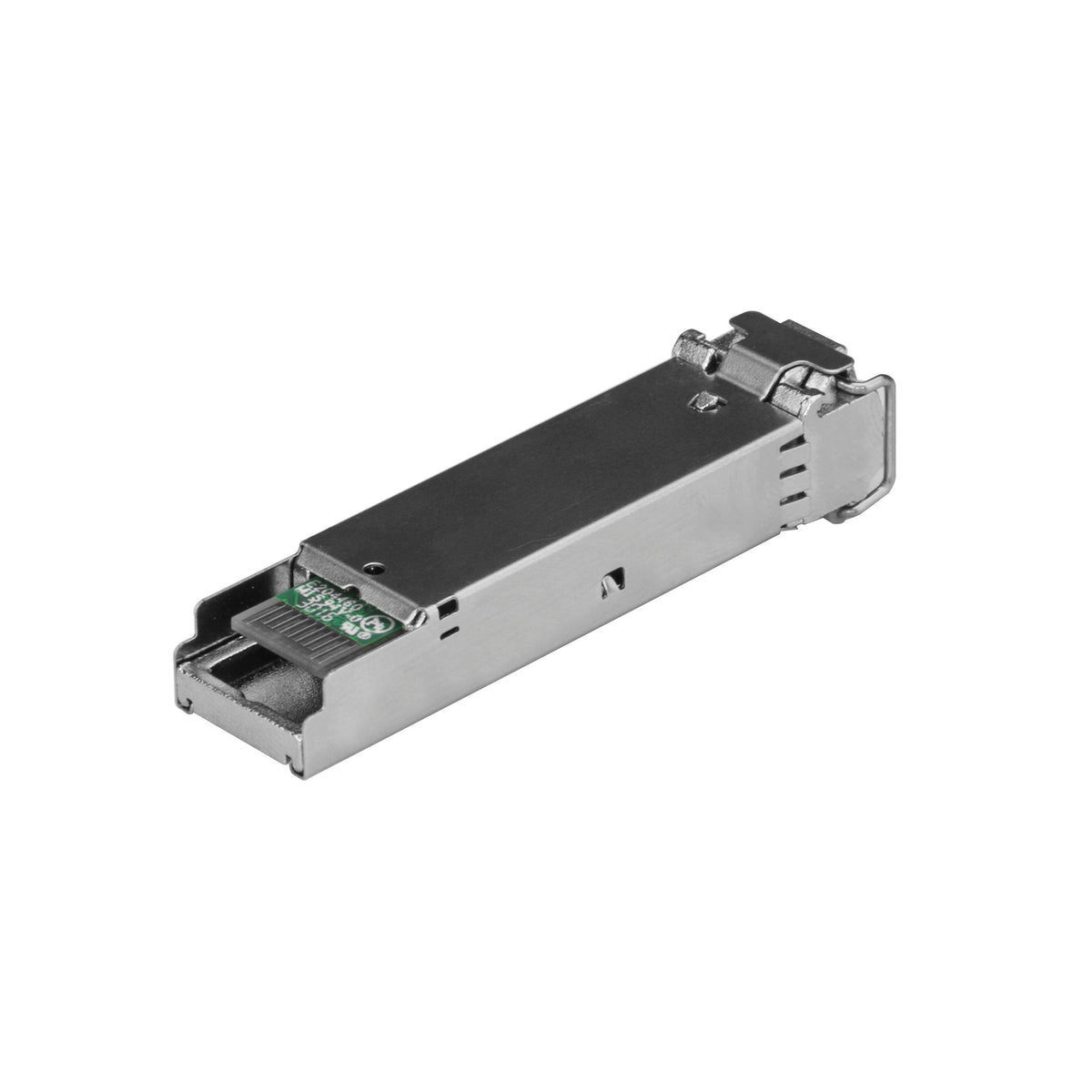

The StarTech 10057-ST Gigabit Ethernet BiDi SFP Transceiver is an Extreme Networks-compatible upstream fiber-optic module designed to provide reliable 1Gbps Ethernet connectivity over a single strand of single-mode fiber. Supporting the 1000BASE-BX-U standard, it transmits at 1310 nm and receives at 1490 nm, supporting fiber connections over distances up to 10 km (6.2 miles).

Designed for compatible Extreme Networks switches and routers, this hot-swappable transceiver simplifies network upgrades and replacement. Its bidirectional (BiDi) technology enables data transmission and reception over one fiber strand, helping reduce fiber cabling requirements. It also supports Digital Diagnostics Monitoring (DDM) and includes a lifetime warranty and lifetime technical support from StarTech.com.

About StarTech 10057-ST

The StarTech 10057-ST is an upstream BiDi fiber SFP transceiver designed for compatible networking equipment supporting 1000BASE-BX-U. It pairs with the StarTech 10056-ST downstream transceiver, using complementary optical wavelengths to communicate over a single strand of single-mode fiber.

With support for 1Gbps Ethernet, an LC connector, and transmission distances up to 10 km, it is suitable for enterprise networking, business infrastructure, and fiber network expansion. Its hot-swappable design helps simplify installation and replacement in compatible network devices.

Key Features

• Brand: StarTech

• Model / Part Number: 10057-ST

• Product Type: 1GbE upstream BiDi fiber SFP transceiver

• Compatible Brand: Extreme Networks

• Ethernet Standard: 1000BASE-BX-U

• Data Transfer Rate: Up to 1Gbps

• Fiber Type: Single-mode fiber (SMF)

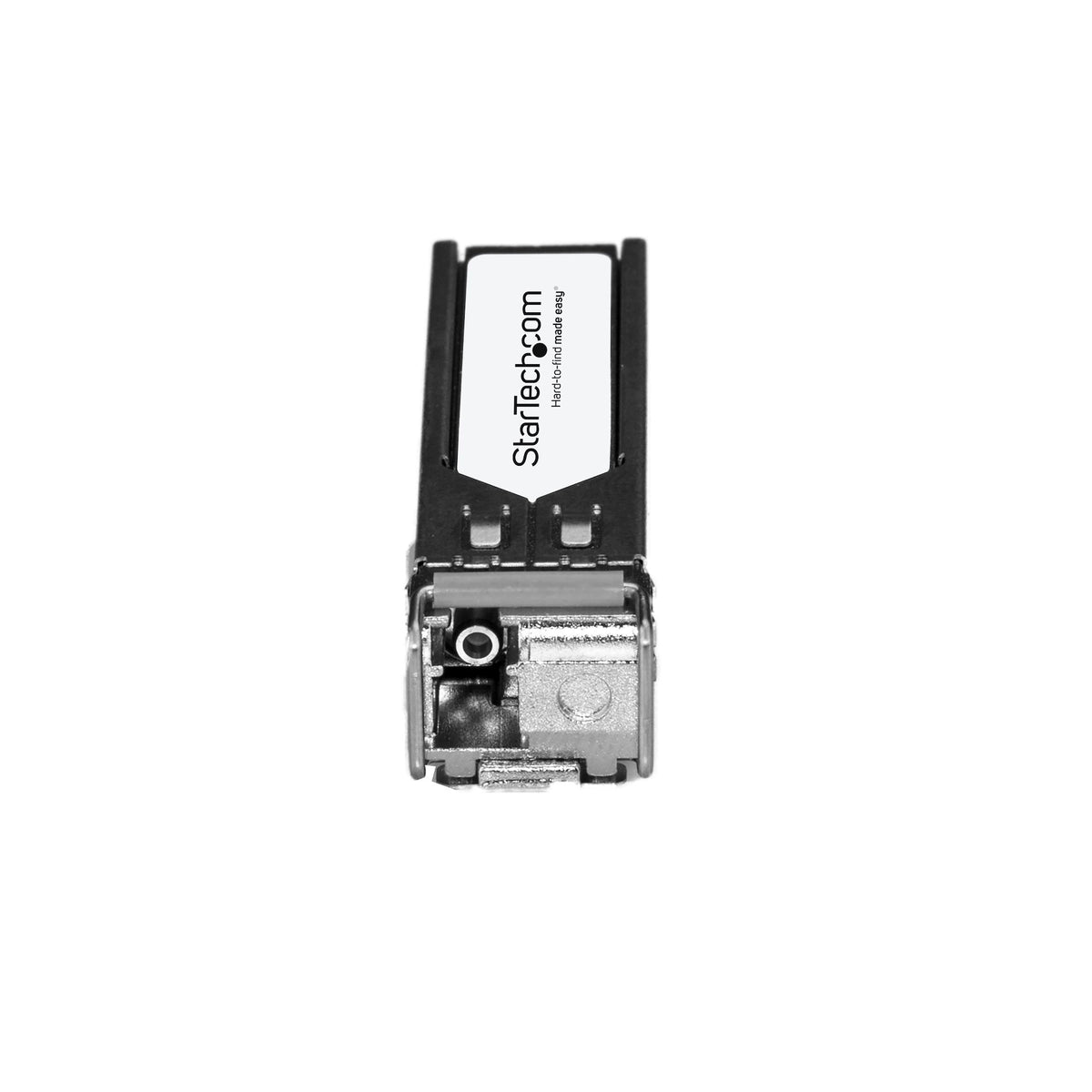

• Connector: LC

• Transmit Wavelength: 1310 nm

• Receive Wavelength: 1490 nm

• Maximum Transmission Distance: 10 km (6.2 miles)

• Operating Mode: Full-duplex

• Digital Diagnostics Monitoring (DDM): Supported

• Hot-Swappable: Yes

• Power Consumption: Less than 1.3W

• Warranty: Lifetime

Ideal Use Cases

• Enterprise Networking: Add Gigabit fiber connectivity to compatible switches and routers.

• Single-Fiber Network Links: Transmit and receive data over one strand of single-mode fiber.

• Long-Distance Connectivity: Support fiber connections up to 10 km using compatible equipment.

• Network Equipment Replacement: Replace a compatible upstream 1000BASE-BX-U SFP transceiver.

• Fiber Infrastructure Optimization: Reduce fiber strand requirements with a compatible BiDi transceiver pair.
