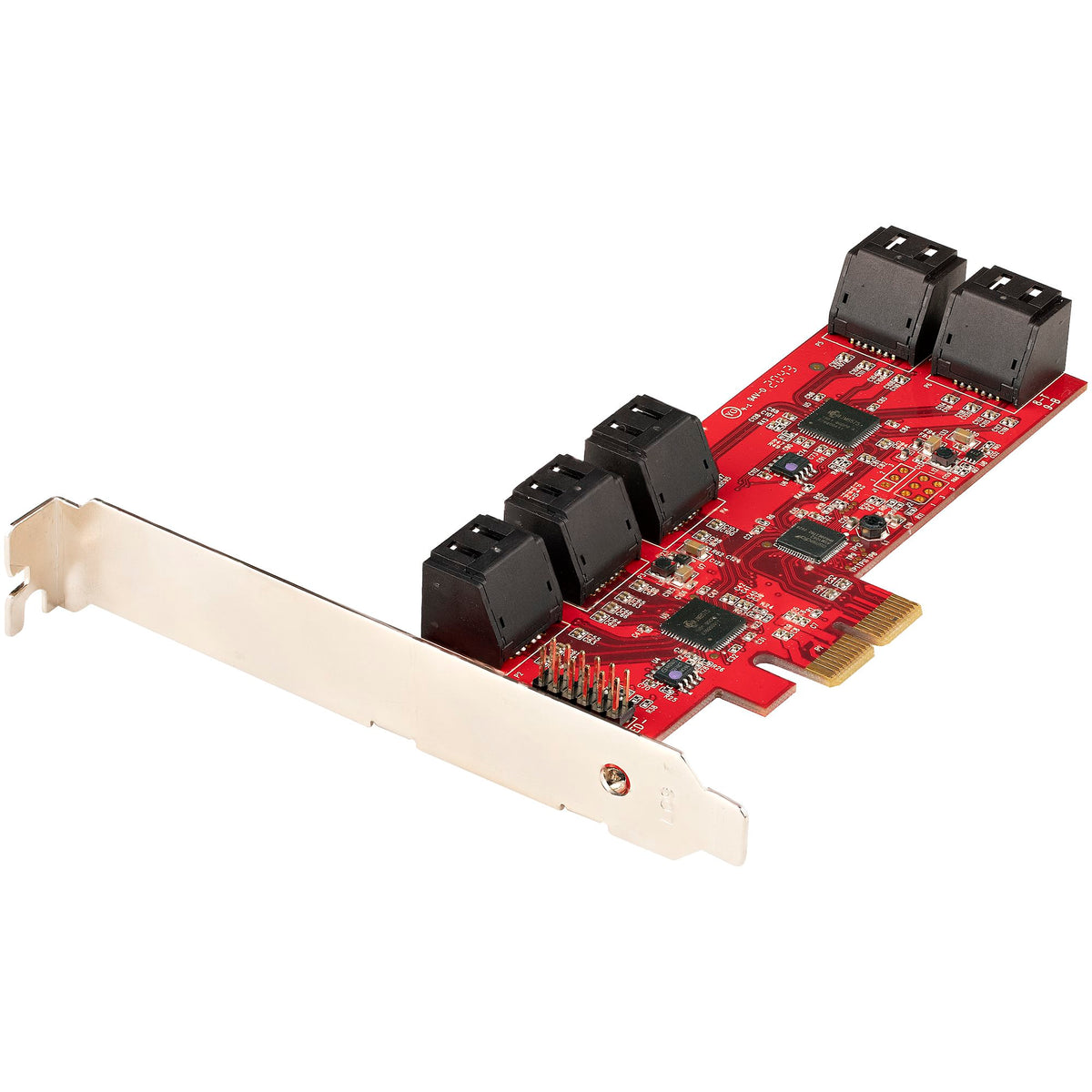

StarTech 10P6G-PCIE-SATA-CARD 10-Port SATA PCIe Expansion Card – 6Gbps, 2-Year Warranty

Product Description

The StarTech 10P6G-PCIE-SATA-CARD is a 10-port SATA III PCIe expansion card designed to add internal storage connectivity to compatible desktop computers and servers. It supports SATA data rates of up to 6Gbps per port and allows you to connect up to ten SATA hard disk drives (HDDs) or solid-state drives (SSDs), making it suitable for expanding storage capacity in business and professional IT environments.

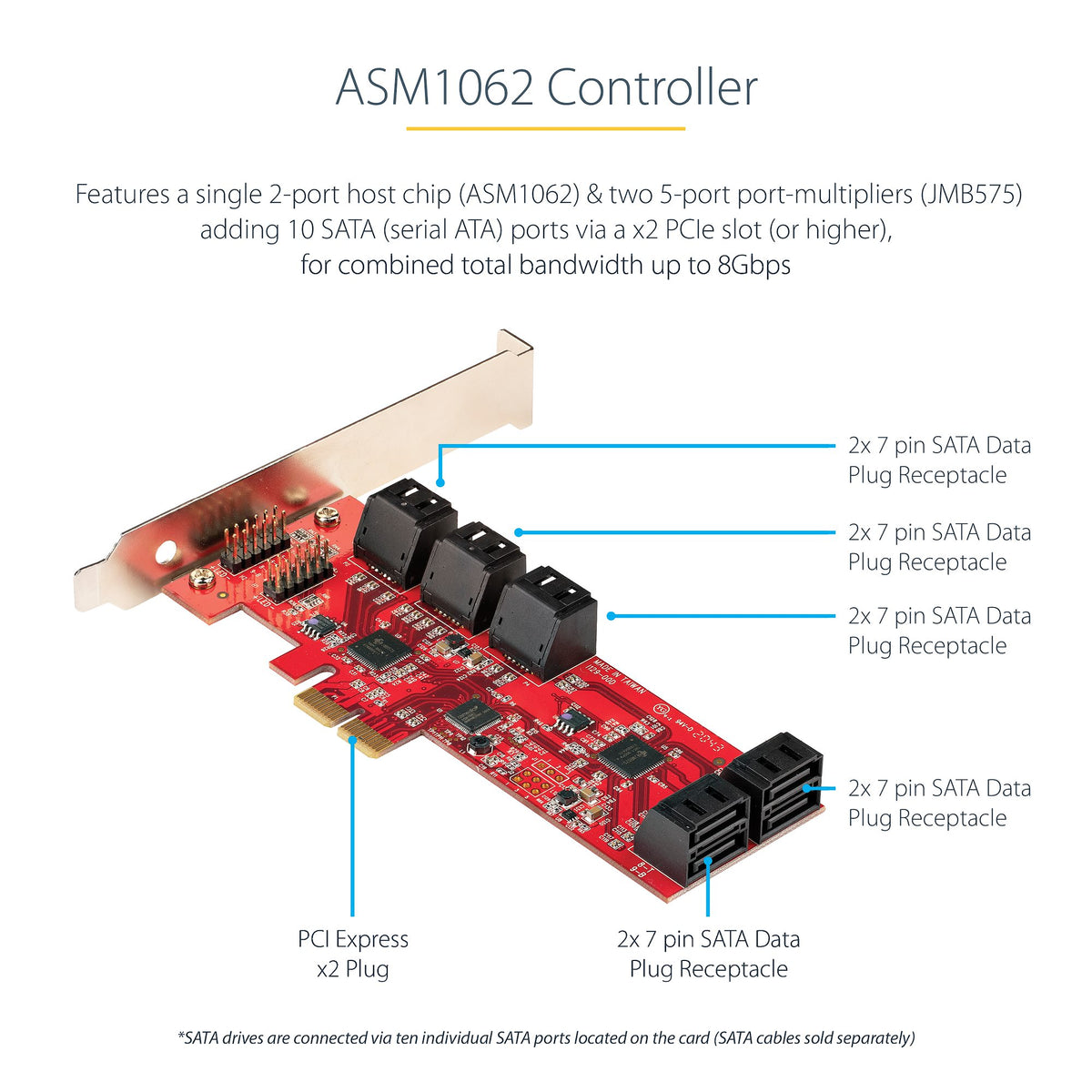

Featuring an ASMedia ASM1062 controller and two JMicron JMB575 port multipliers, the card connects through an available PCIe x2 slot and provides combined throughput of up to 8Gbps. It supports software RAID, Native Command Queuing (NCQ), TRIM, S.M.A.R.T. monitoring, and 4Kn drives. A low-profile bracket is included for installation in compatible compact computer systems.

Explore more computer connectivity and expansion products in the StarTech Collection at Suntronix.

About StarTech 10P6G-PCIE-SATA-CARD

The StarTech 10P6G-PCIE-SATA-CARD is designed for users who need to expand the number of internal SATA connections available on a computer or server. Its ten SATA ports support compatible storage devices, helping administrators build larger storage configurations without replacing the existing motherboard.

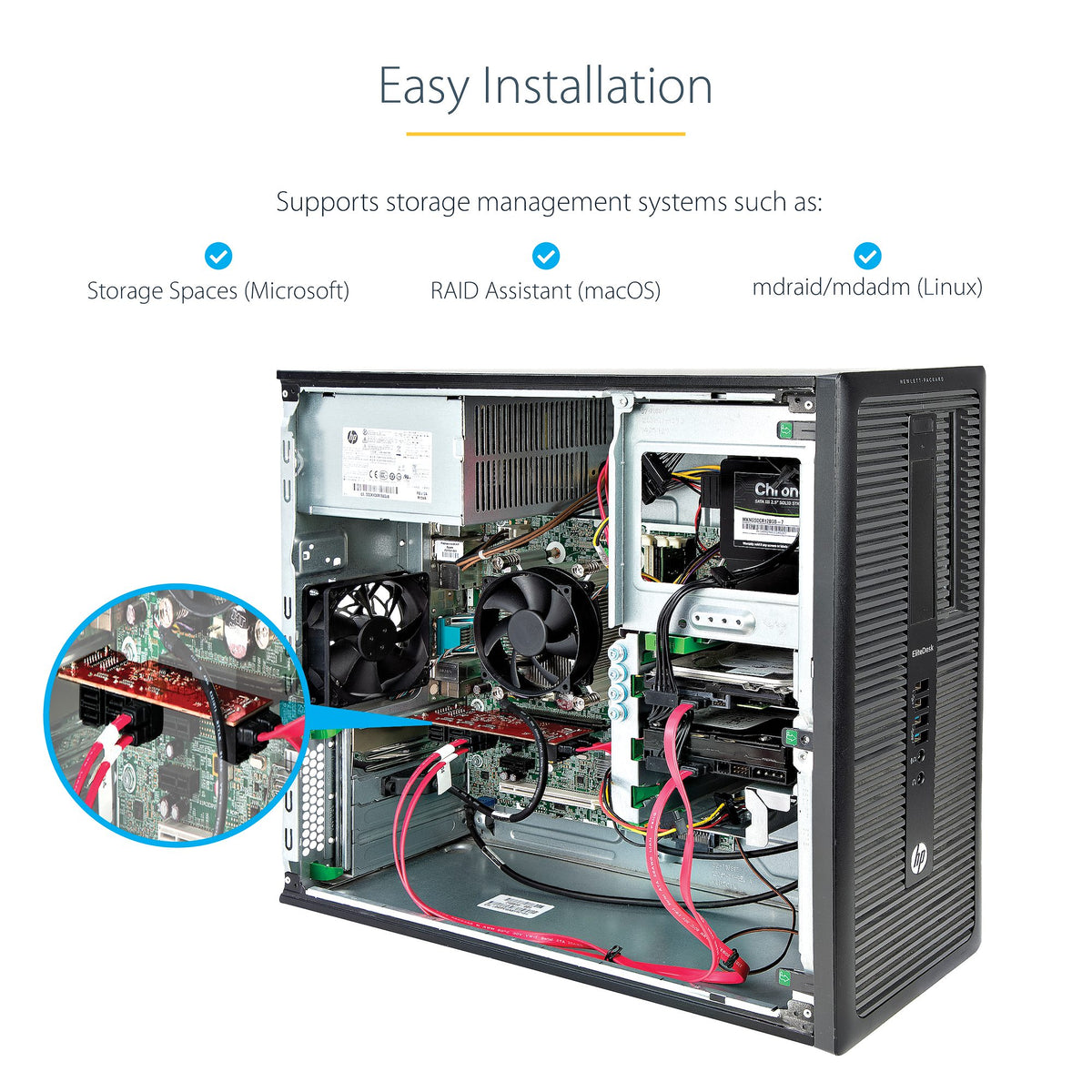

The card supports PCI Express 2.0 and SATA III standards, with backward compatibility for earlier supported generations at lower performance. It does not include a built-in hardware RAID controller, but it supports software RAID through compatible operating system storage tools, including Windows Storage Spaces, macOS RAID Assistant, and Linux mdraid/mdadm.

Key Features

• 10 SATA Ports: Connect up to ten compatible SATA storage devices.

• SATA III Performance: Supports data transfer rates of up to 6Gbps per port.

• PCIe x2 Interface: Installs in a compatible PCI Express slot.

• Up to 8Gbps Combined Throughput: Supports combined bandwidth of up to 8Gbps.

• ASM1062 Controller: Uses the ASMedia ASM1062 controller with JMicron port multipliers.

• Software RAID Support: Supports RAID configuration through compatible operating system tools; no built-in hardware RAID controller.

• Port Multiplier Support: Allows multiple drives to be connected through a compatible port multiplier setup.

• Storage Monitoring: Supports TRIM, S.M.A.R.T., NCQ, and 4Kn drives.

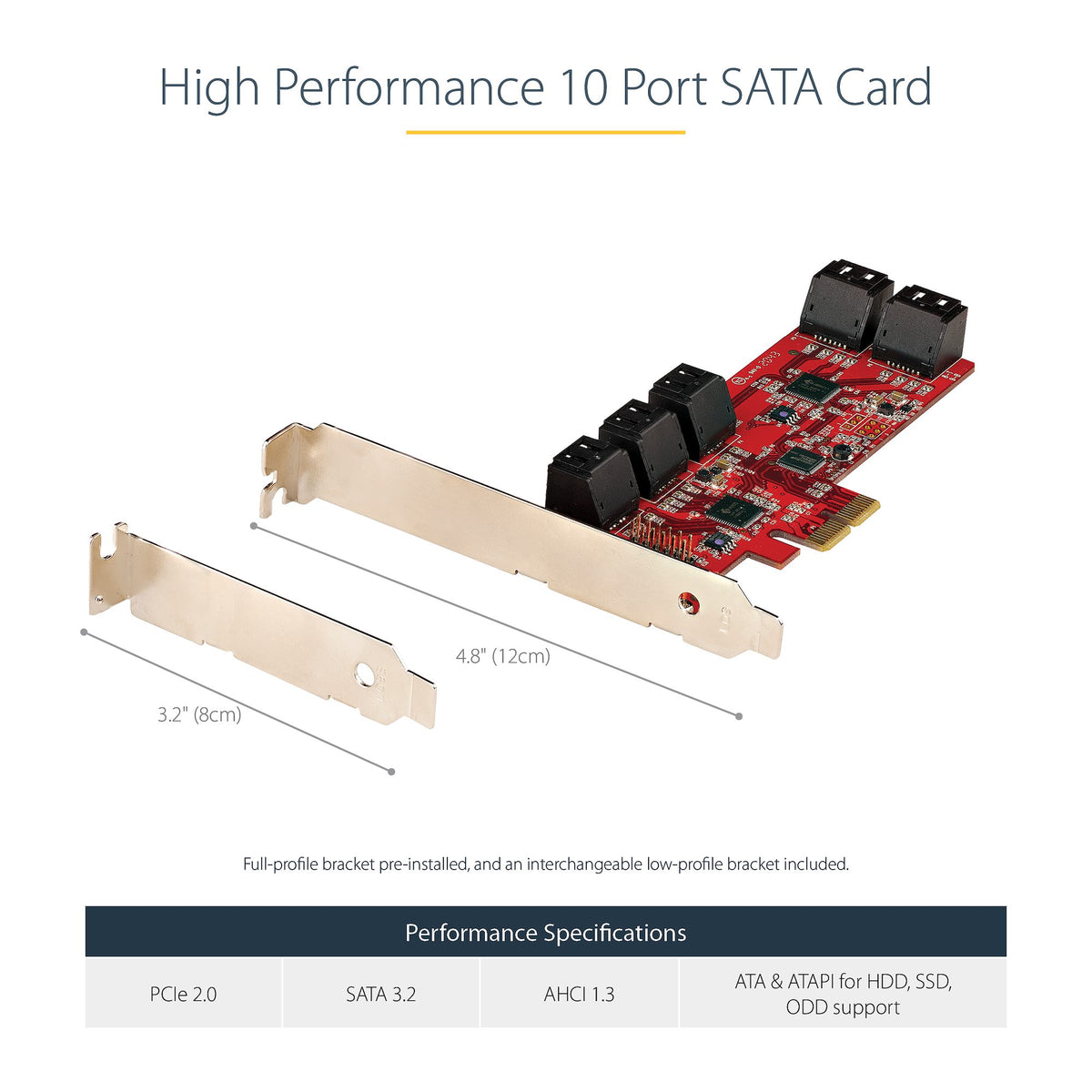

• Full- and Low-Profile Installation: Includes a full-profile bracket and an interchangeable low-profile bracket.

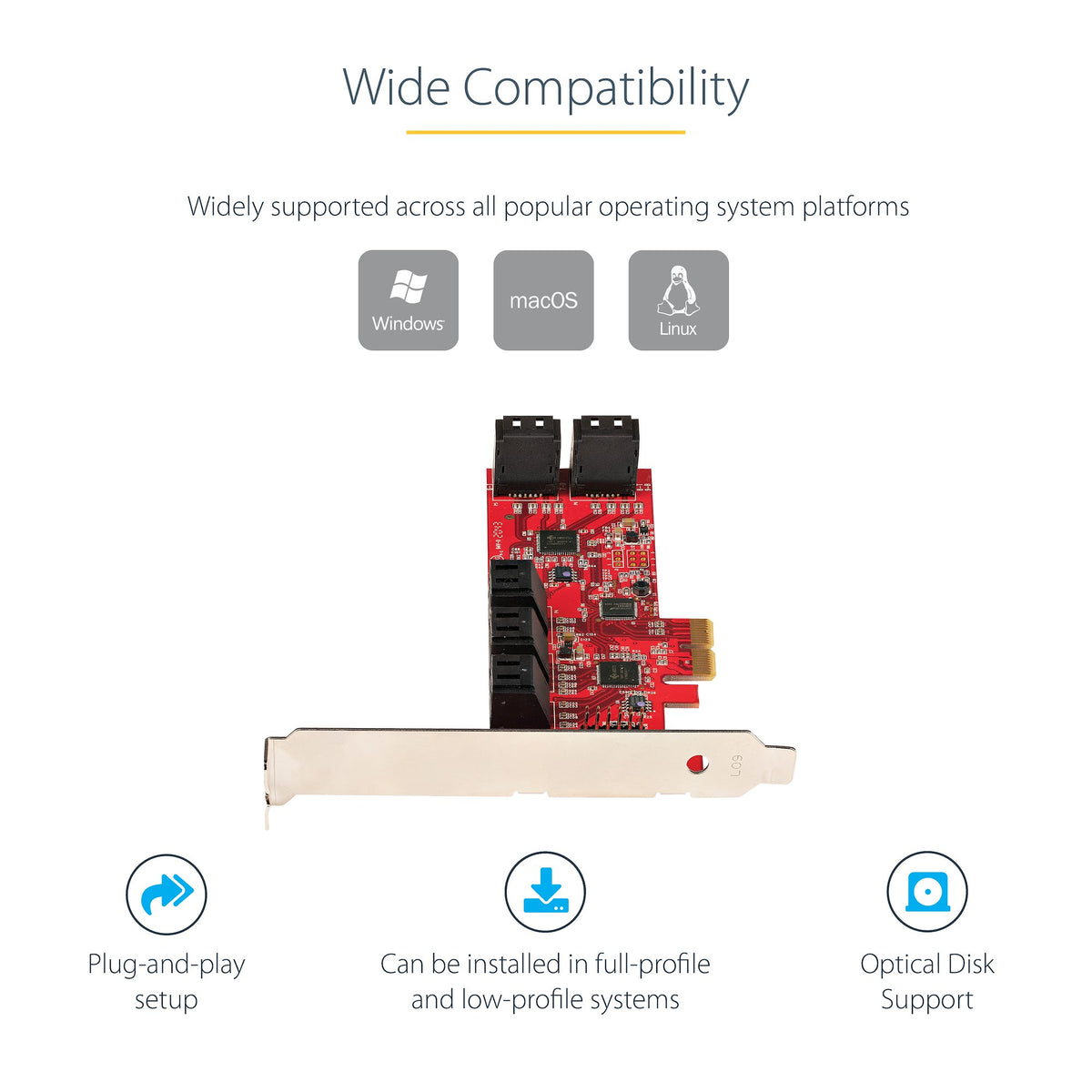

• Broad OS Compatibility: Supports Windows, macOS, and Linux versions specified by StarTech.com.

• Two-Year Warranty: Includes a manufacturer warranty and free lifetime multilingual technical support.

Ideal Use Cases

• Desktop Storage Expansion: Add SATA connections for additional internal HDDs and SSDs.

• Server Storage: Expand internal storage connectivity in compatible servers.

• Business Data Storage: Build larger storage configurations for business files and applications.

• Software RAID Systems: Connect drives for software-managed storage arrays using supported operating system tools.

• Compact Computer Builds: Install the card in compatible systems using the included low-profile bracket.

• IT Infrastructure Upgrades: Increase available SATA connectivity without replacing the motherboard.
