StarTech 117B-USBC-MULTIPORT Triple Monitor USB-C Dock – 4K, 100W PD, 3-Year Warranty

Product Description

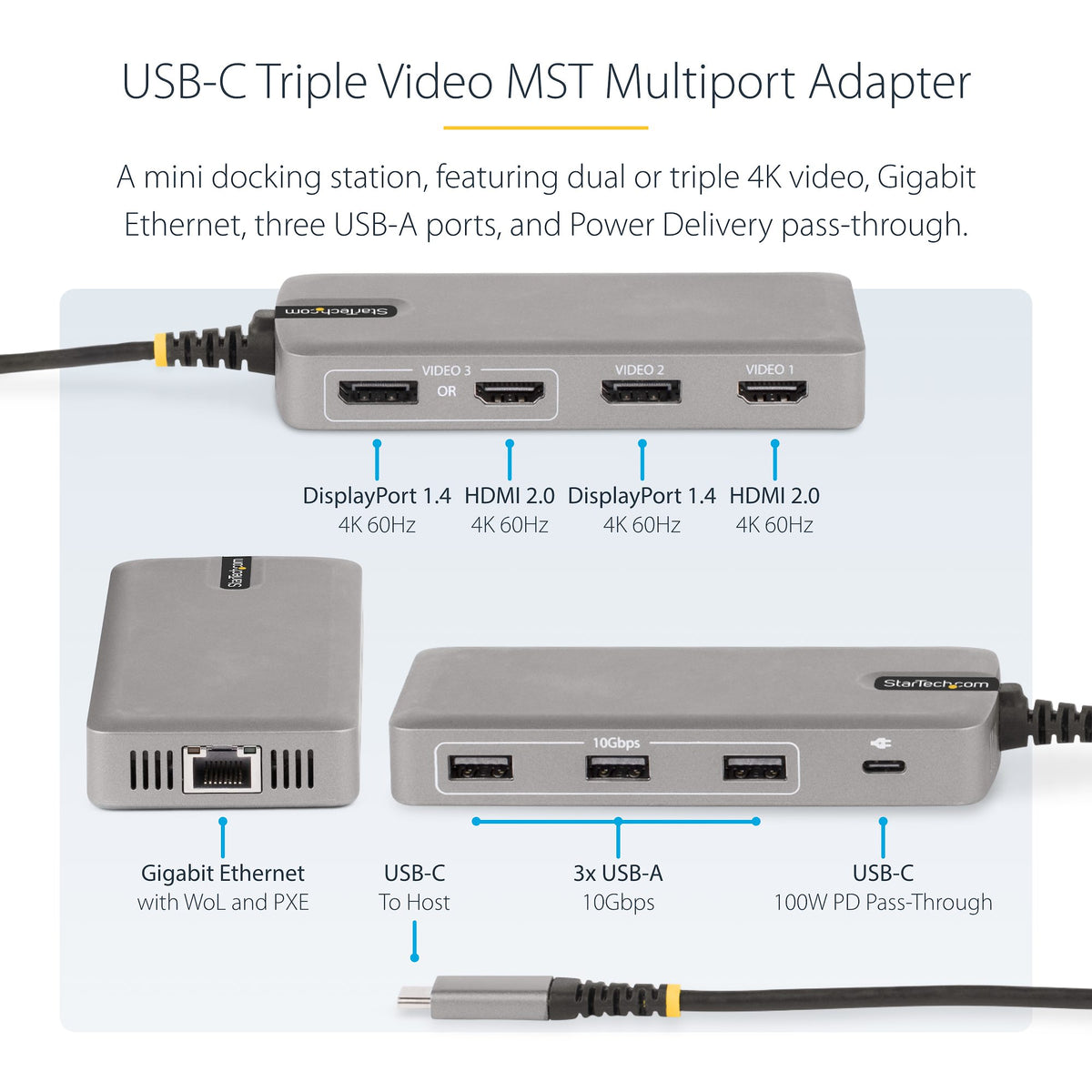

The StarTech 117B-USBC-MULTIPORT is a USB-C multiport adapter designed to expand laptop connectivity and support up to three external displays on compatible Windows and ChromeOS systems. It features two HDMI 2.0b ports, two DisplayPort 1.4 outputs, three USB-A 10Gbps ports, Gigabit Ethernet, and a dedicated USB-C Power Delivery pass-through port.

The adapter supports dual 4K displays at 60Hz or triple-display configurations of up to one 4K display at 60Hz and two 4K displays at 30Hz, depending on the host computer's graphics capabilities. It accepts up to 100W USB-C Power Delivery input, with up to 85W available for laptop charging. Its integrated 60cm USB-C host cable and driverless setup make it suitable for office workstations, business presentations, and mobile professionals.

Explore more docking stations and connectivity products in the StarTech Collection at Suntronix.

About StarTech 117B-USBC-MULTIPORT

The StarTech 117B-USBC-MULTIPORT provides multiple display and peripheral connections through a single USB-C host connection. It uses DisplayPort Alternate Mode and Multi-Stream Transport (MST) to support compatible multi-monitor configurations, making it useful for users who need additional screen space for productivity and professional applications.

Along with display expansion, the adapter provides high-speed USB connectivity, wired Gigabit Ethernet, and laptop charging pass-through. It also supports Wake-on-LAN and PXE boot on compatible systems. StarTech.com Connectivity Tools offer additional Windows utilities for network MAC address pass-through, USB event monitoring, Wi-Fi auto switching, and window layout management.

Key Features

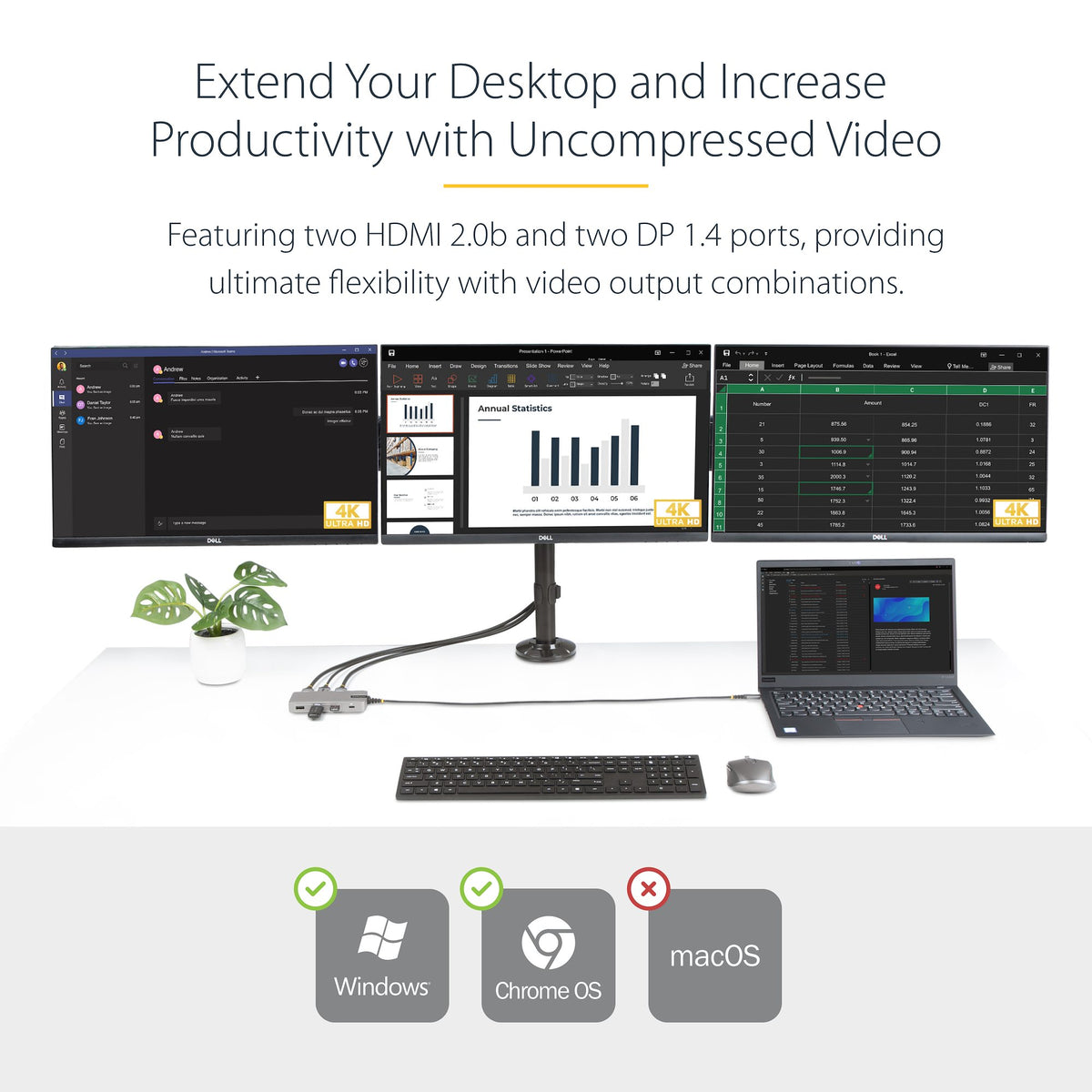

• Multi-Monitor Support: Supports up to three external displays on compatible host systems.

• Four Video Outputs: Includes two HDMI 2.0b ports and two DisplayPort 1.4 ports.

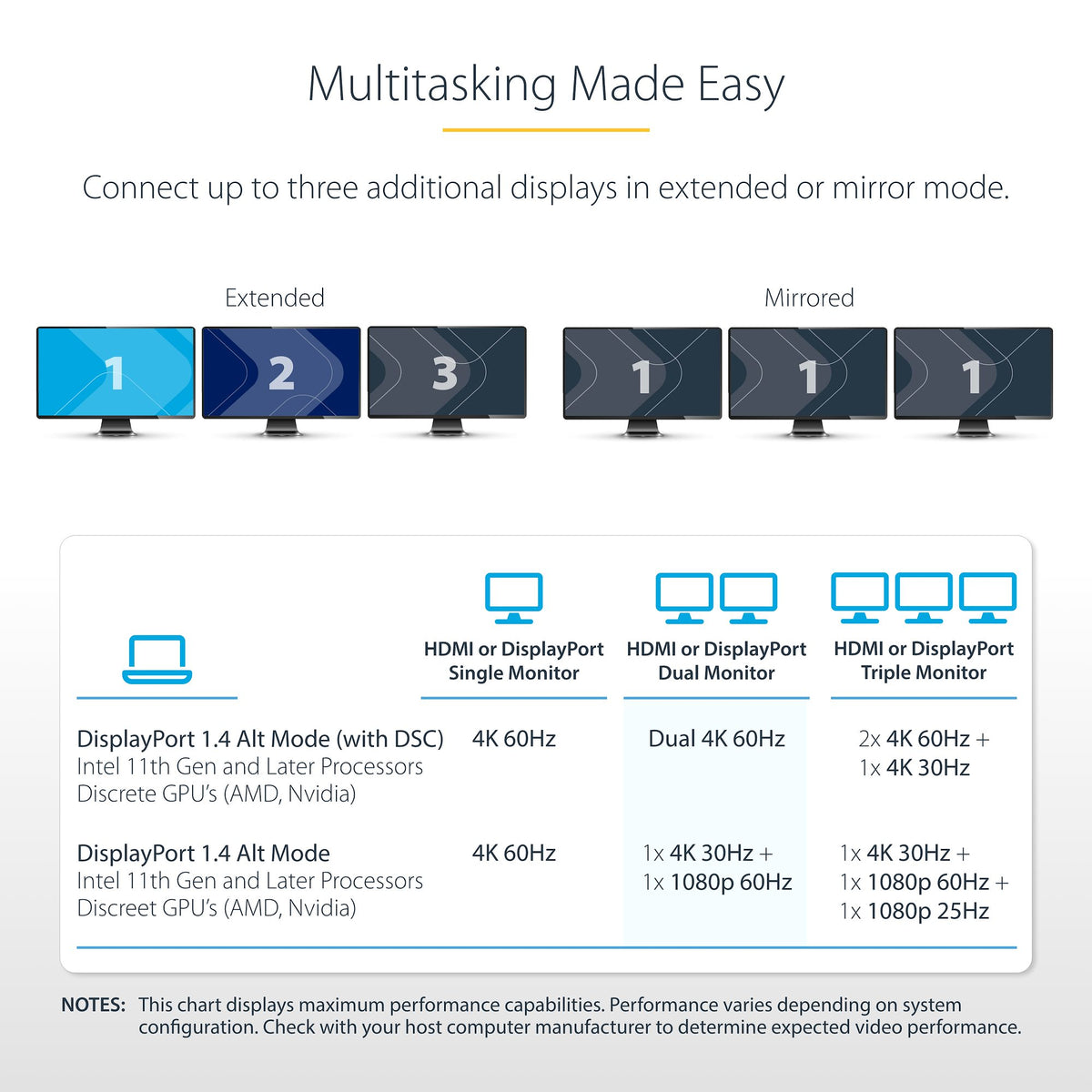

• Dual 4K at 60Hz: Supports two 4K displays at 60Hz with a compatible host configuration.

• Triple 4K Display: Supports one 4K display at 60Hz and two at 30Hz under supported configurations.

• Three USB-A Ports: USB 3.2 Gen 2 ports provide data transfer speeds up to 10Gbps.

• 100W Power Delivery: Accepts up to 100W USB-C PD input.

• Up to 85W Laptop Charging: Reserves 15W for the adapter and provides up to 85W to the host laptop.

• Gigabit Ethernet: Supports wired network speeds of 10/100/1000Mbps.

• Network Management Features: Supports Wake-on-LAN, PXE boot, and compatible Windows connectivity utilities.

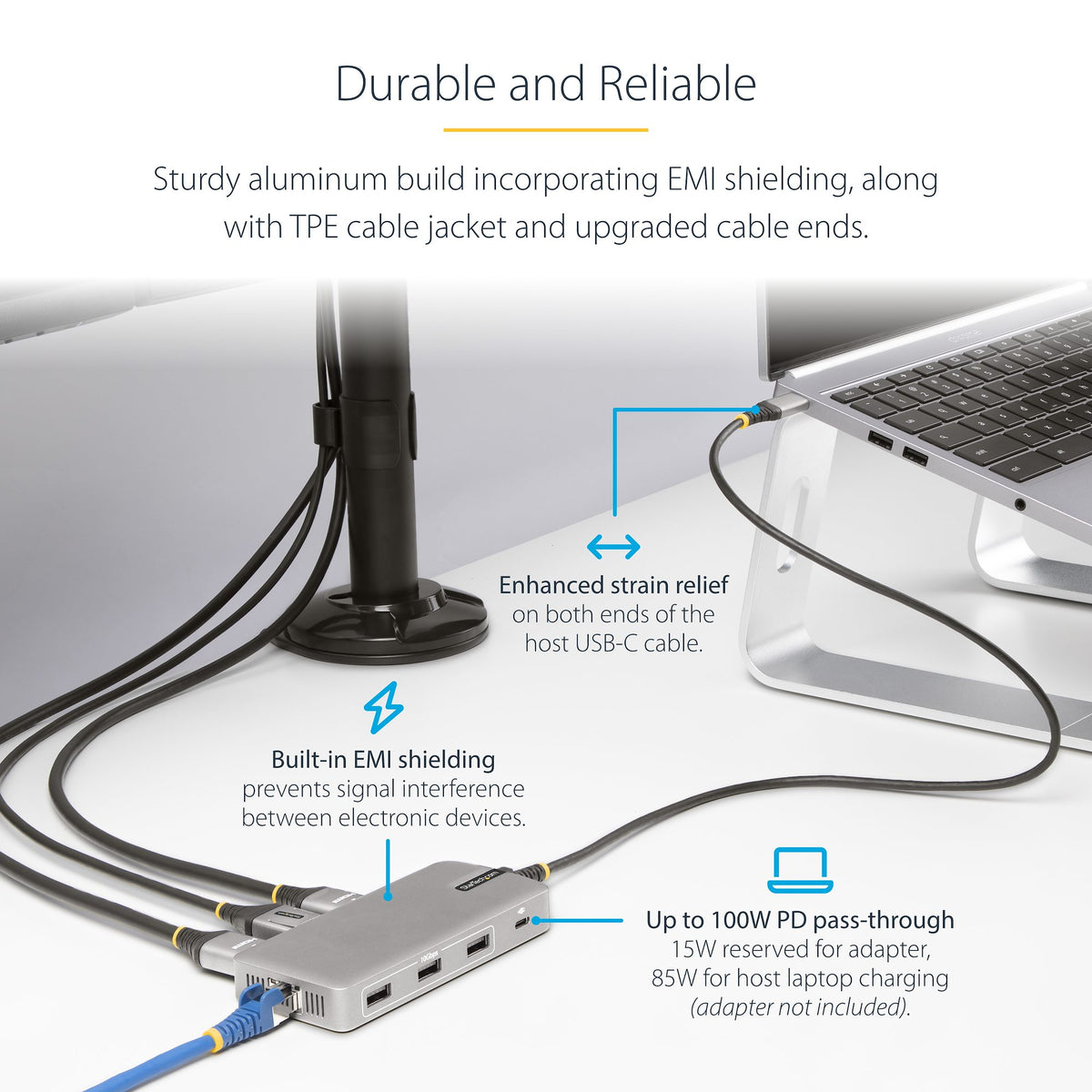

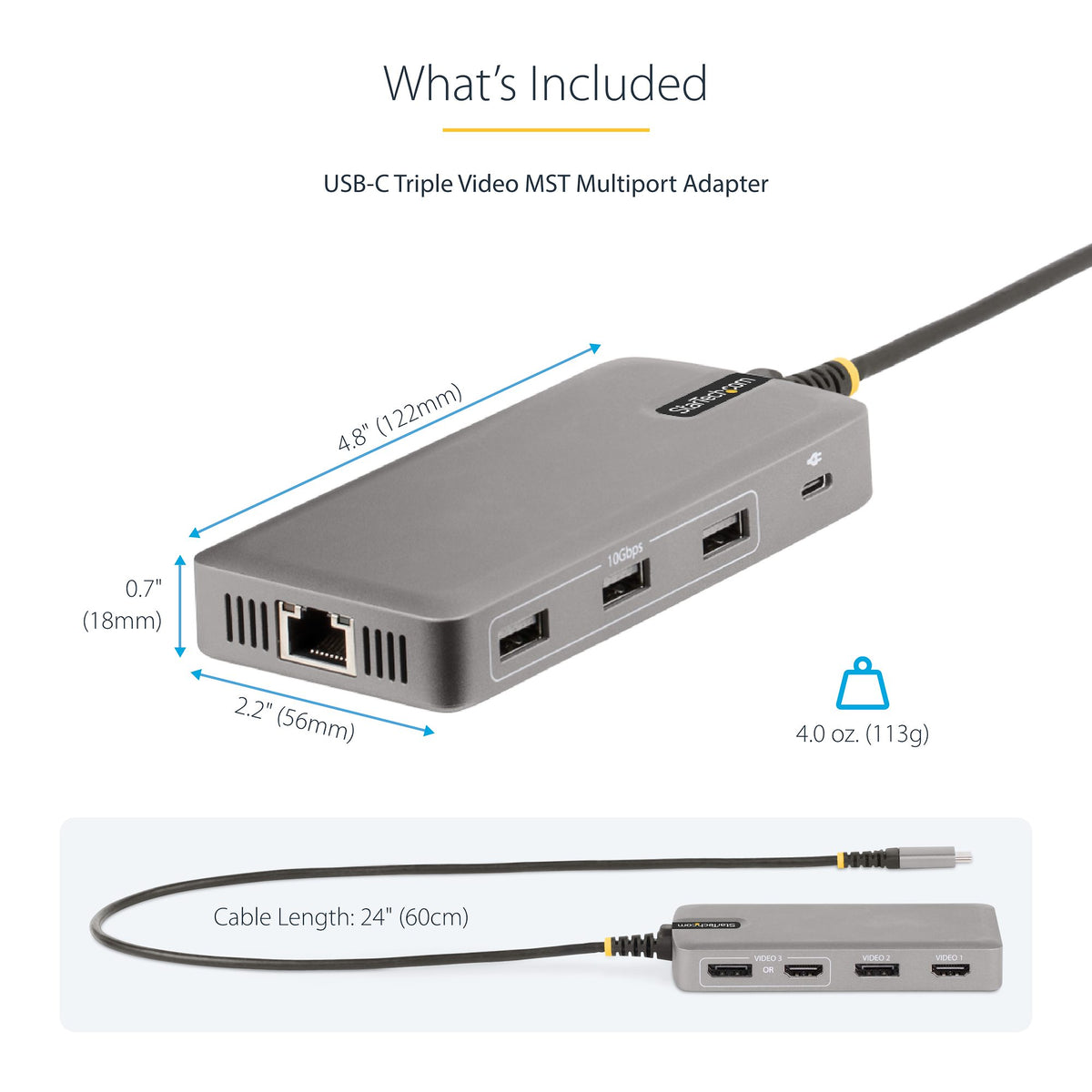

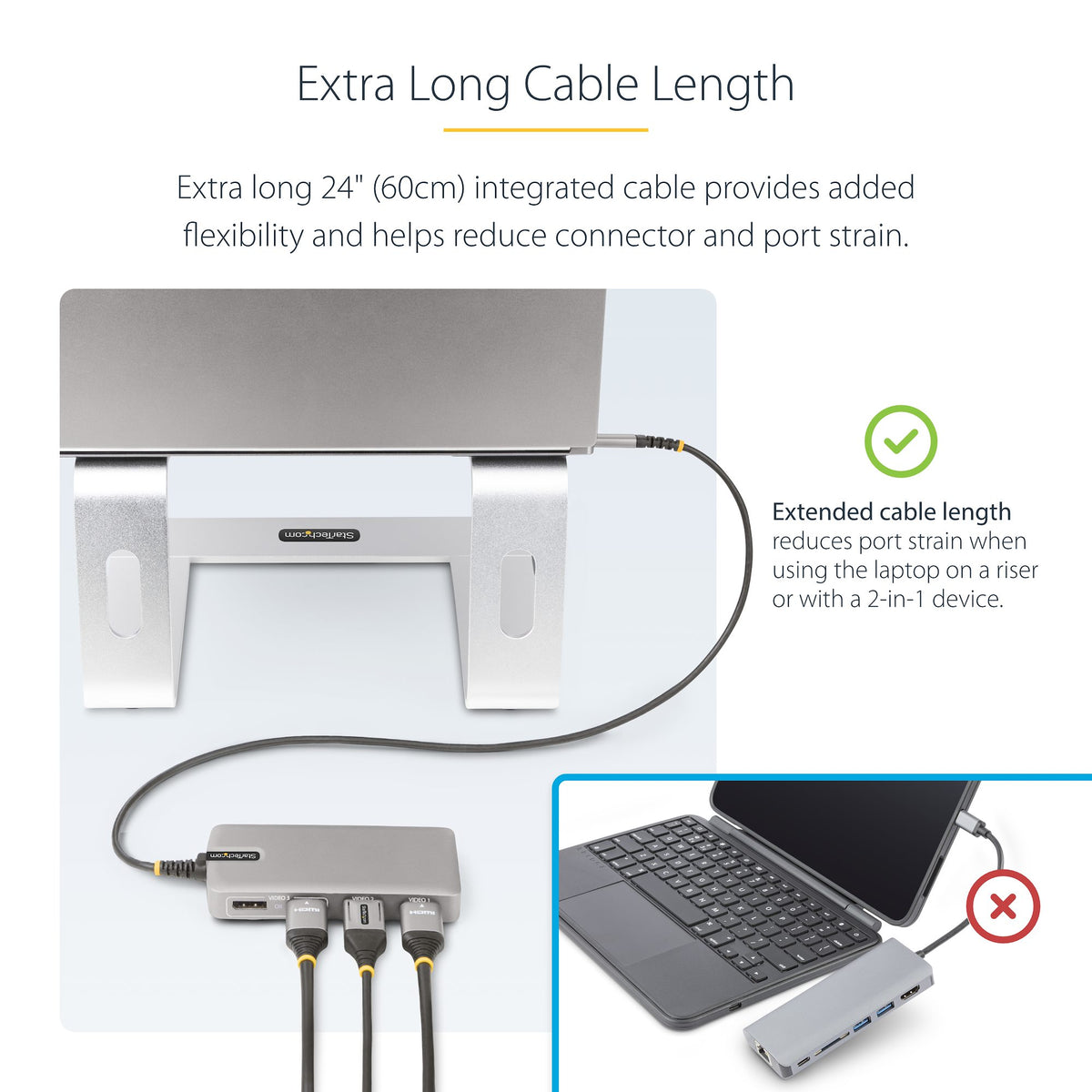

• Extended USB-C Cable: Features an integrated 60cm host cable with a TPE jacket and strain relief.

• Driverless Setup: Standard adapter functionality requires no additional drivers.

• Three-Year Warranty: Includes manufacturer warranty coverage and lifetime technical support.

Ideal Use Cases

• Office Workstations: Connect multiple monitors, USB peripherals, and wired Ethernet through one laptop connection.

• Business Presentations: Connect compatible computers to HDMI or DisplayPort monitors and presentation displays.

• Financial and Data Workflows: Expand screen space for spreadsheets, dashboards, and business applications.

• Creative Workstations: Support multi-display workflows on compatible graphics hardware.

• Hybrid Work Environments: Move between home and office setups with a compact travel dock.

• IT Administration: Use compatible network boot and device-management features in supported Windows environments.
