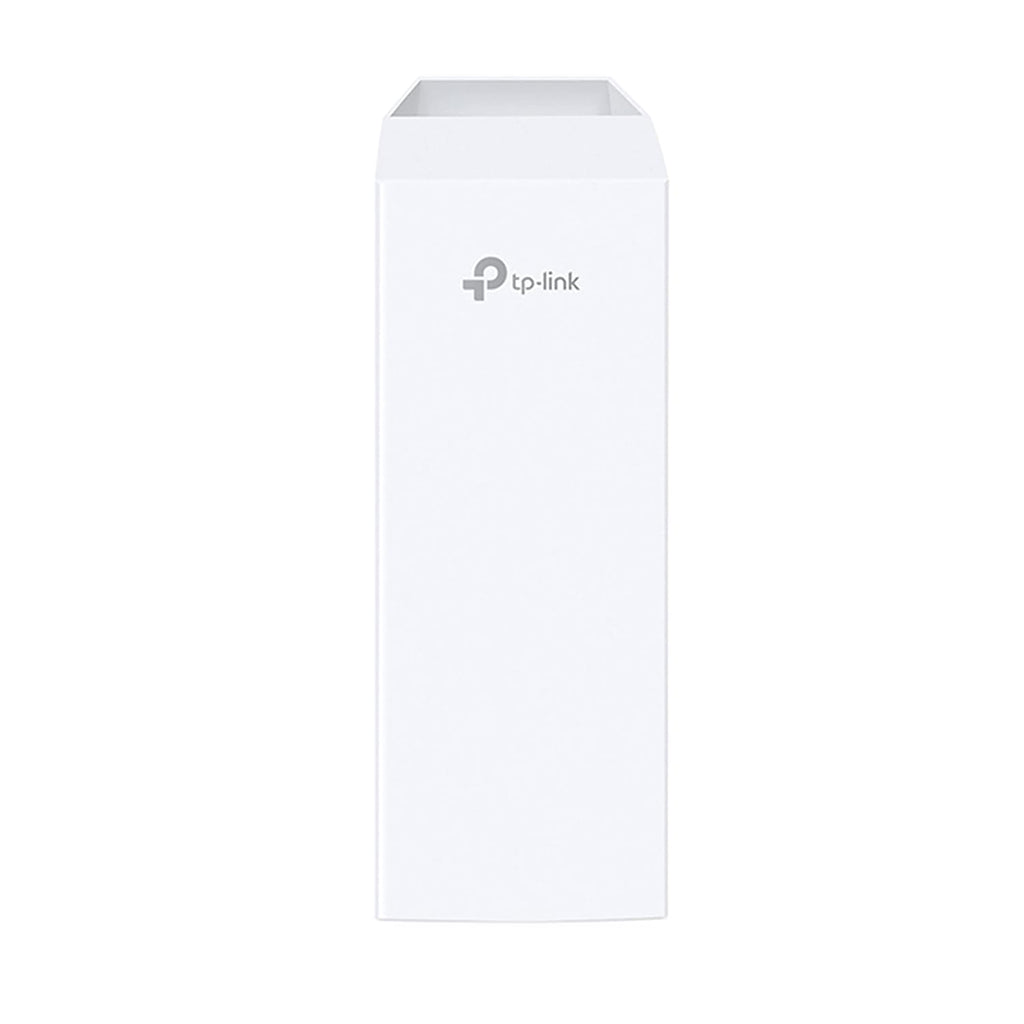

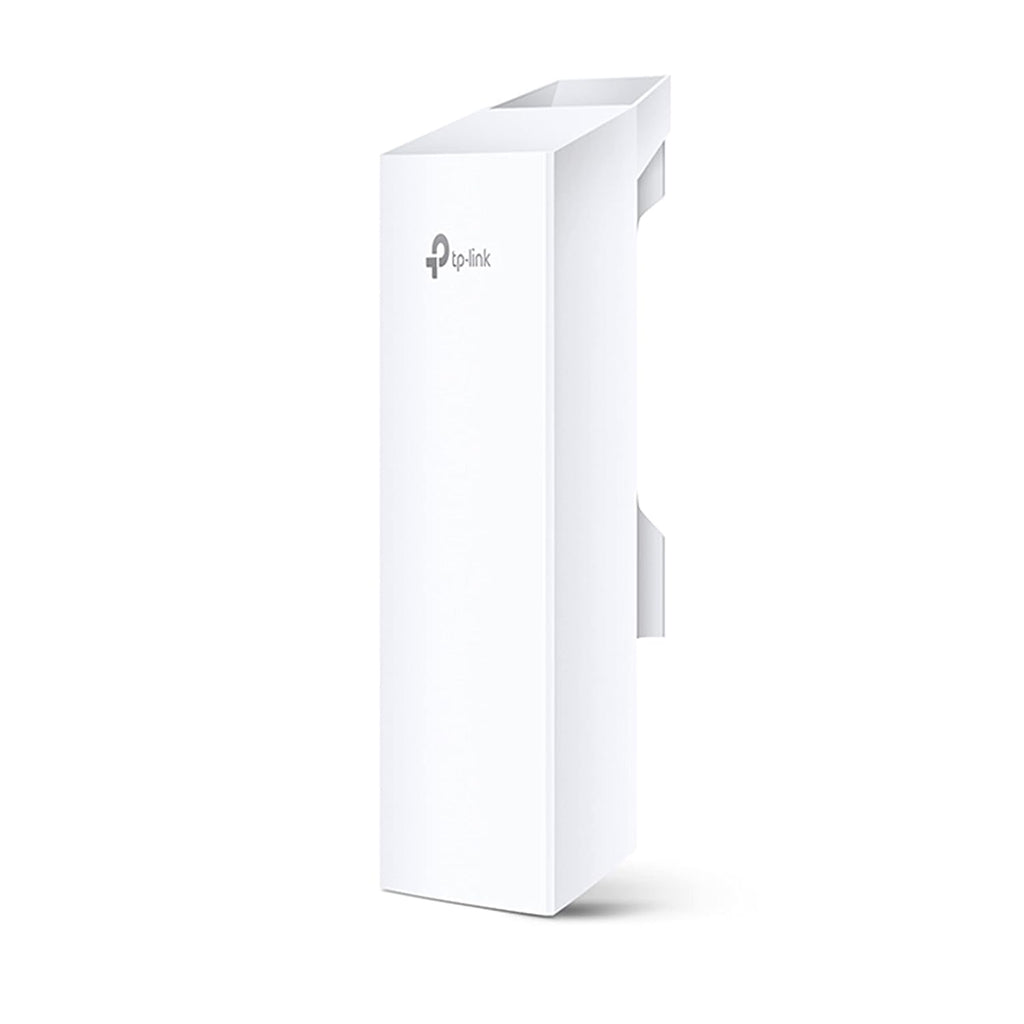

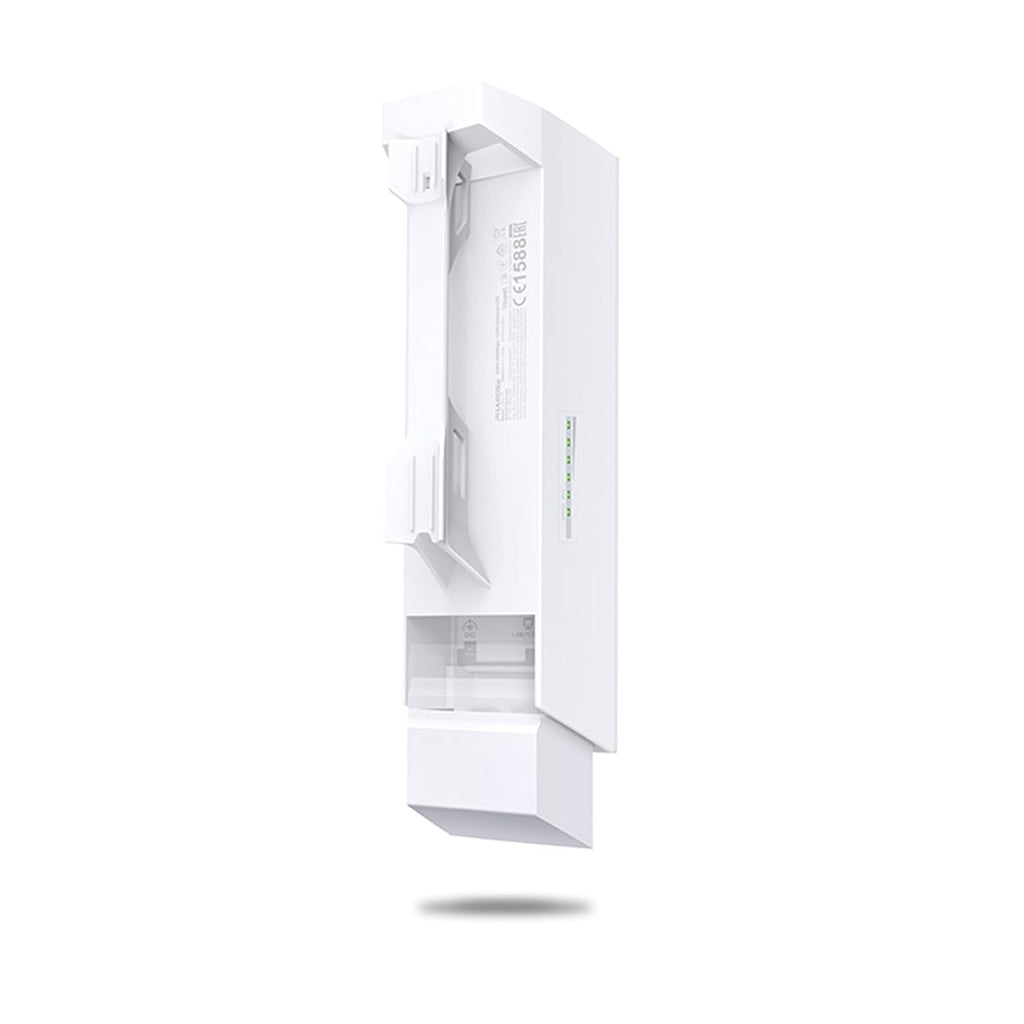

TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point

TP-Link CPE510 5GHz 300Mbps 13dBi Long Range Outdoor Wireless Access Point

CPE510
Sale price  ₹ 3,675 Regular price  ₹ 6,999
Taxes included. Free Shipping.
DESCRIPTION

High Gain Antenna: The CPE510 features a robust 13dBi 2x2 dual-polarized directional MIMO antenna, which significantly boosts signal strength and coverage, making it ideal for long-distance wireless communication.

Extended Range: Designed for long-range transmission, the CPE510 can reliably transmit data over distances exceeding 15 kilometers, making it perfect for extensive outdoor networking scenarios.

Advanced TDMA Technology: With TP-Link's MAXtream TDMA technology, the CPE510 enhances throughput, capacity, and latency performance, making it well-suited for point-to-multipoint (PtMP) applications.

Multiple Operation Modes: The device supports various operation modes, including Access Point (AP), Client, AP Router, and AP Client Router (WISP), offering flexibility to meet different networking needs.

Durable Outdoor Design: Built to withstand harsh outdoor conditions, the CPE510 operates effectively in temperatures ranging from -30°C to +70°C and includes 6KV lightning protection, ensuring reliable performance in diverse weather environments.

Model CPE510
Processor Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash

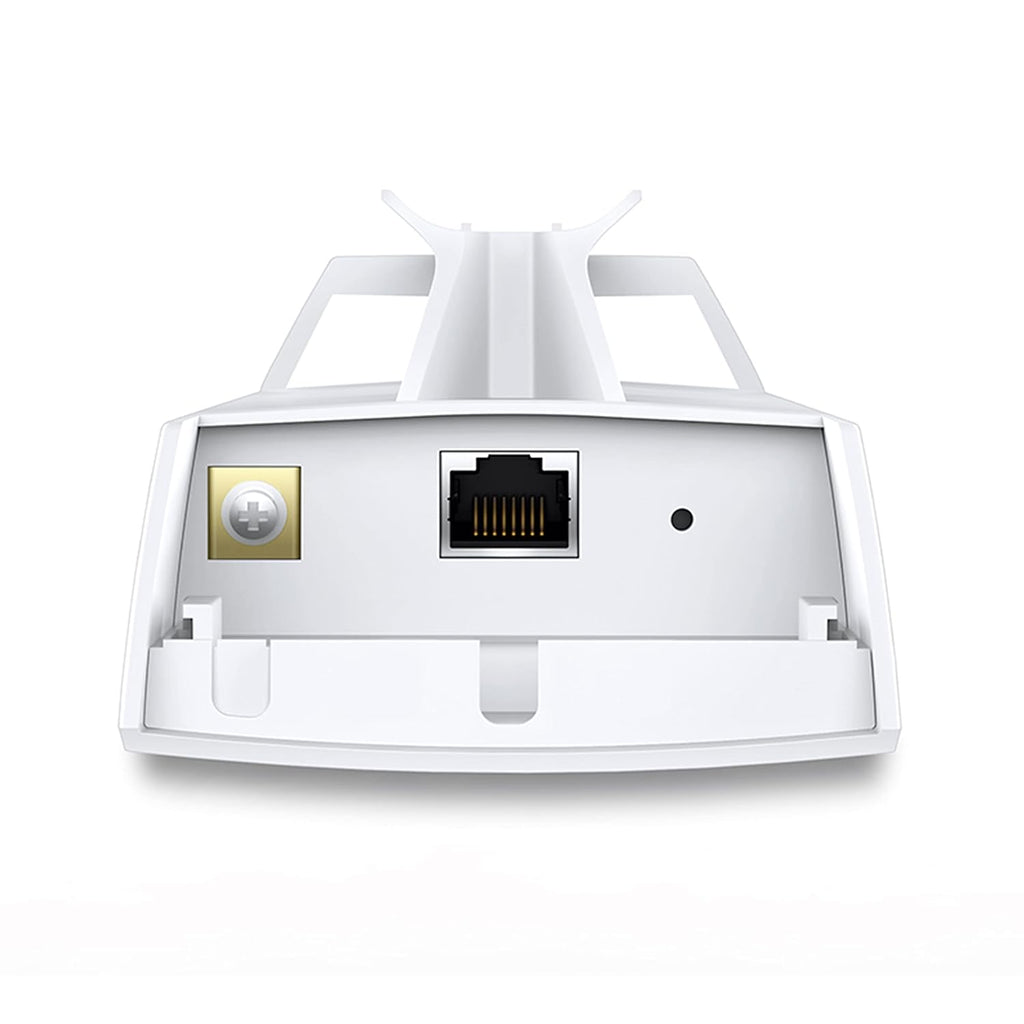

Interface 1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Max. Power Consumption 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection 15KV ESD Protection
6KV Lightning Protection
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Dimensions 4.3 x 2.2 x 1.3 in
Package Content Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Warranty 1 Year Brand Warranty
