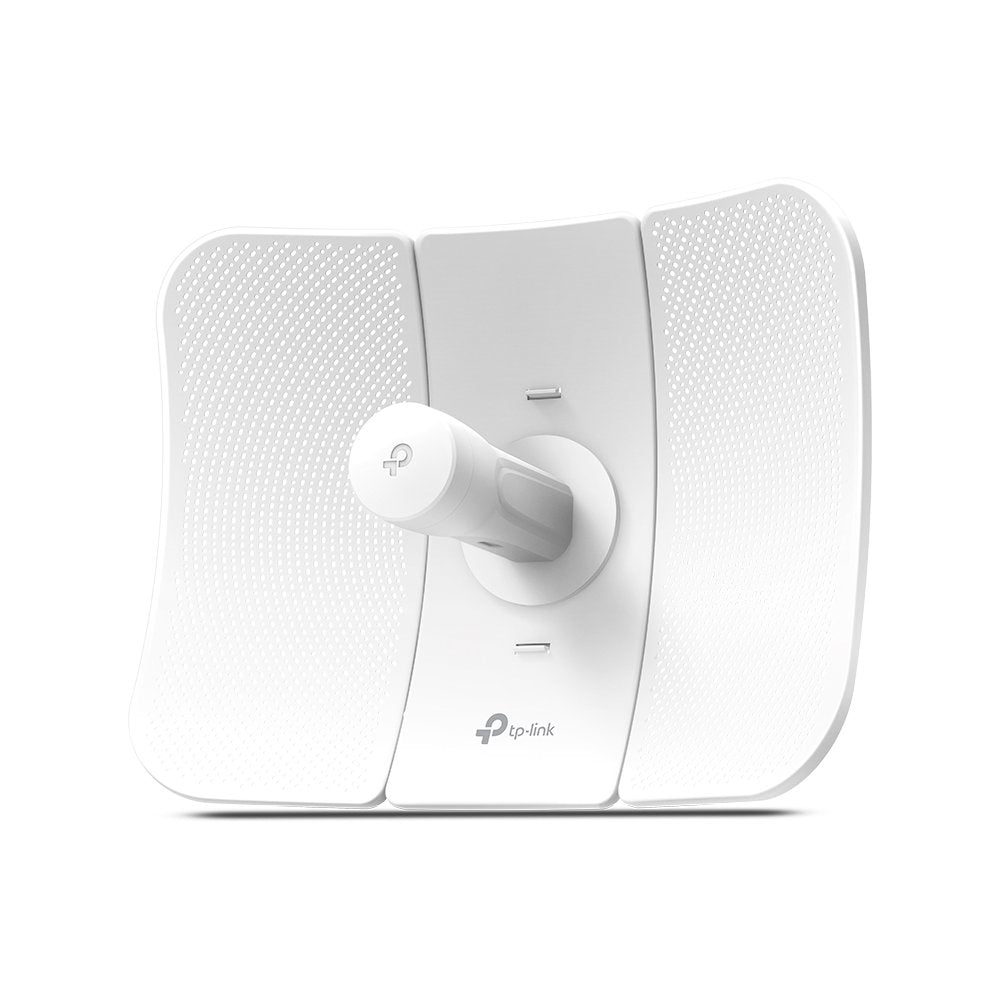

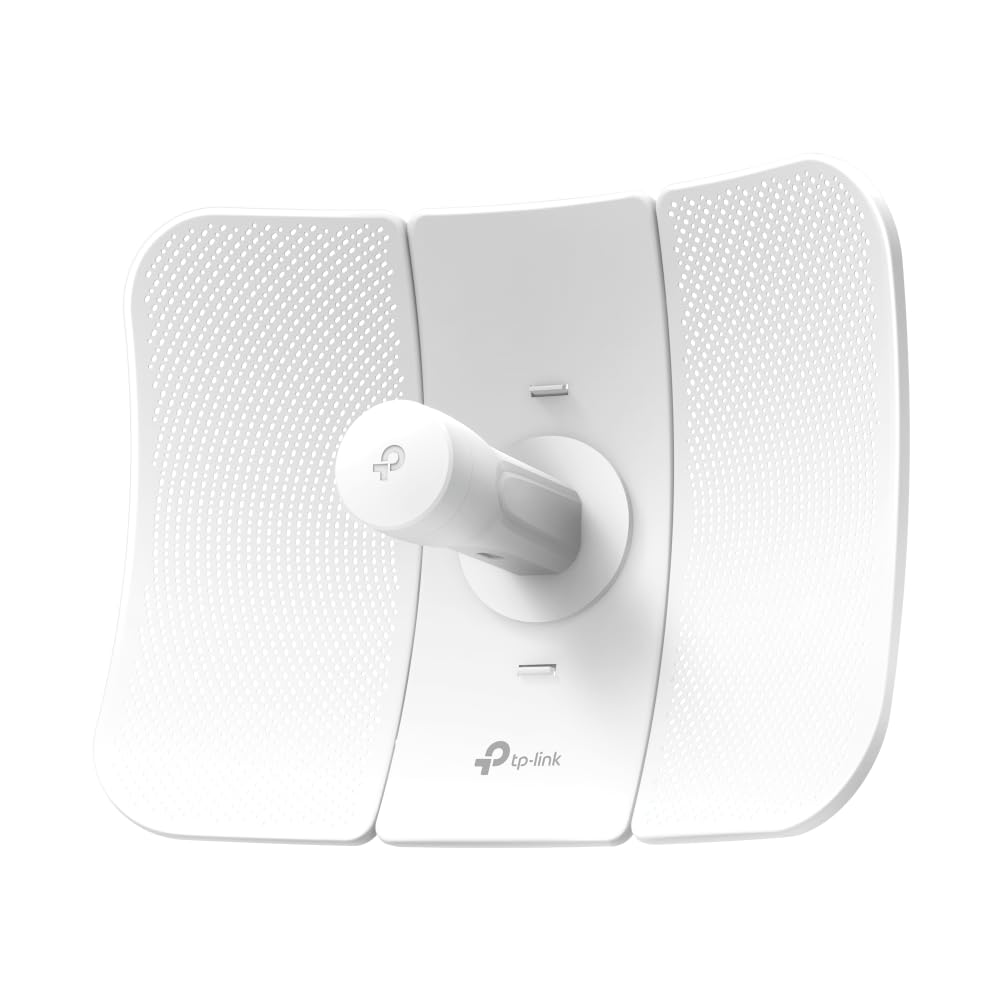

TP-Link CPE610 5GHz 300Mbps 23dBi Long Range Outdoor CPE Wireless Access Point

TP-Link CPE610 5GHz 300Mbps 23dBi Long Range Outdoor CPE Wireless Access Point

CPE610
Sale price  ₹ 4,599 Regular price  ₹ 7,999
Taxes included. Free Shipping.
DESCRIPTION

High Gain Antenna: The CPE610 is equipped with a powerful 23dBi 2x2 dual-polarized directional MIMO Cassegrain antenna, significantly boosting signal strength and coverage, making it ideal for long-distance wireless communication.

Extended Range: Designed for long-range transmission, the CPE610 can reliably transmit data over distances exceeding 20 kilometers, making it perfect for extensive outdoor networking scenarios.

Advanced TDMA Technology: With TP-Link's MAXtream TDMA technology, the CPE610 enhances throughput, capacity, and latency performance, making it well-suited for point-to-multipoint (PtMP) applications.

Robust Outdoor Design: Built to withstand harsh outdoor conditions, the CPE610 operates effectively in temperatures ranging from -30°C to +70°C and includes 6KV lightning protection and 15KV ESD protection, ensuring reliable performance in diverse weather environments.

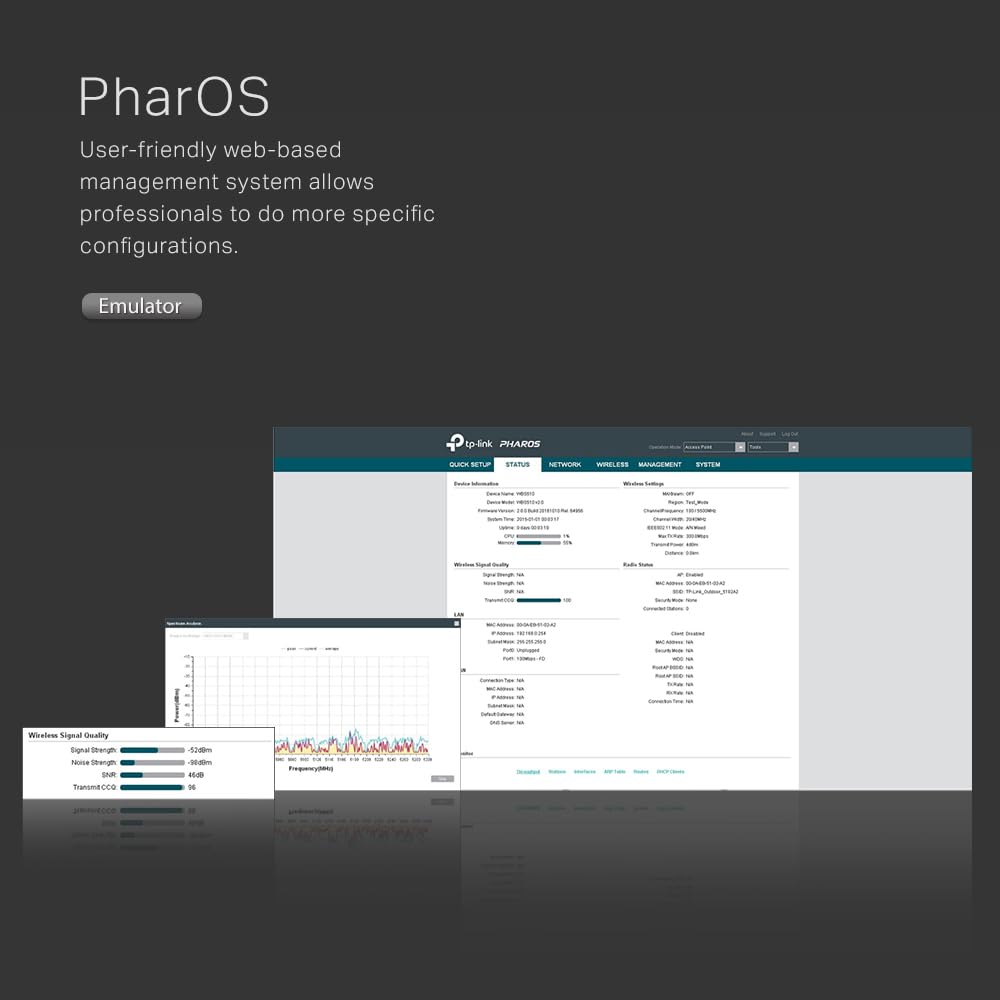

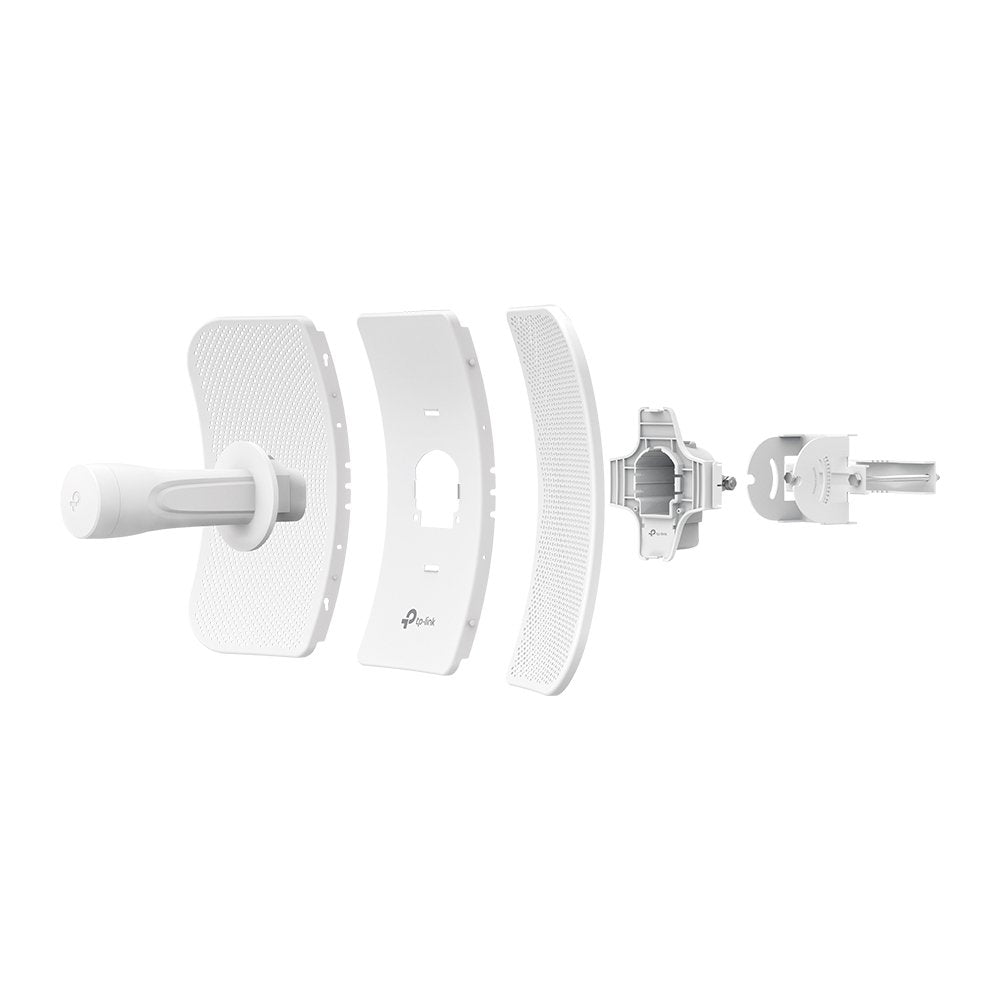

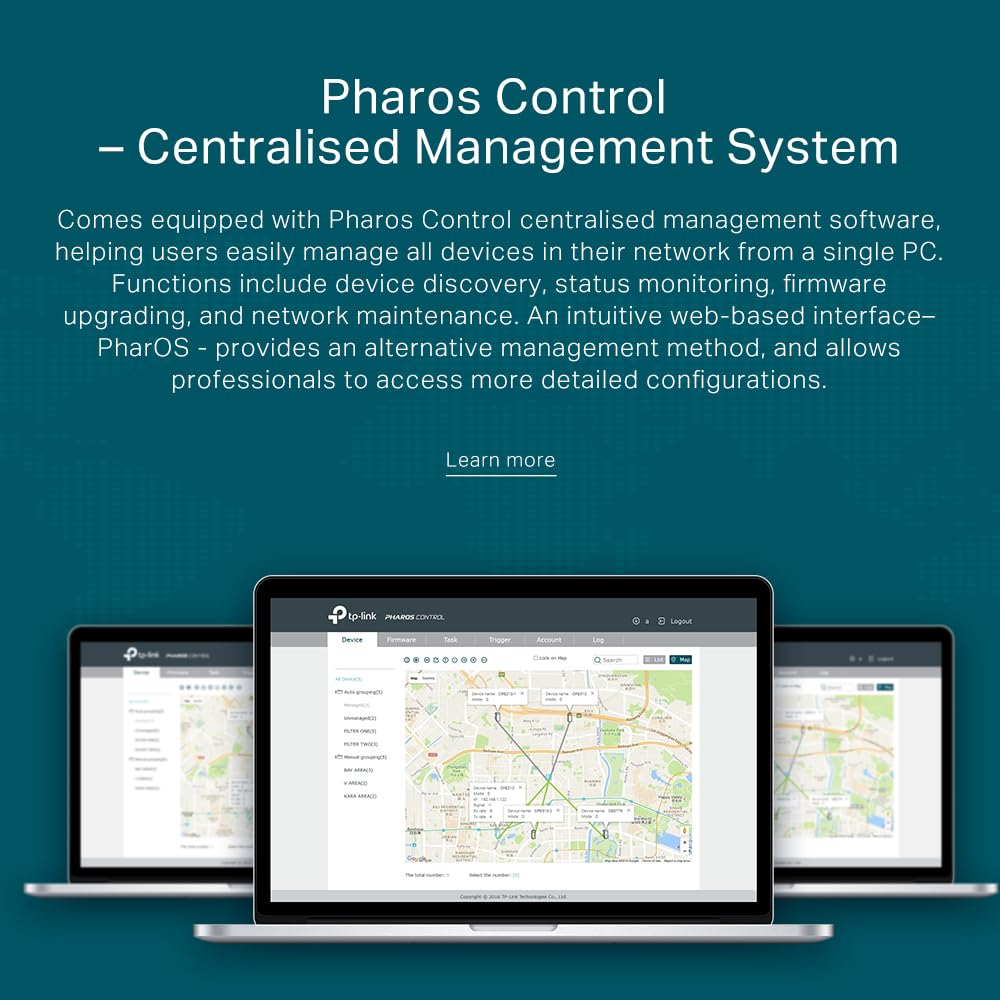

Easy Installation and Management: The CPE610 features innovative snap-lock parts for quick assembly and includes Pharos Control centralized management software, allowing users to easily manage all devices in their network from a single PC.

Model CPE610
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Max. Power Consumption 7.41 W
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna 23dBi
Protection 15KV ESD Protection
6KV Lightning Protection
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Dimensions 85.8×43.9×29.7 mm

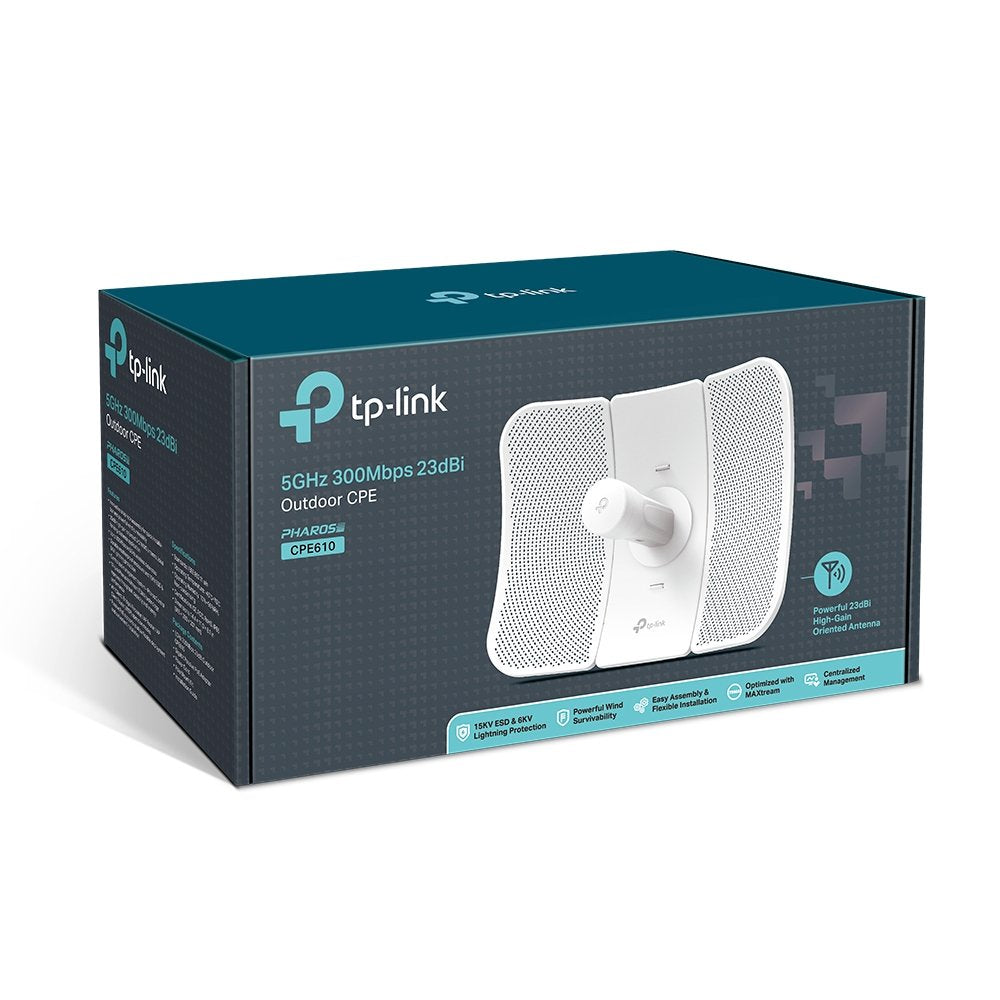

Package Content Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter

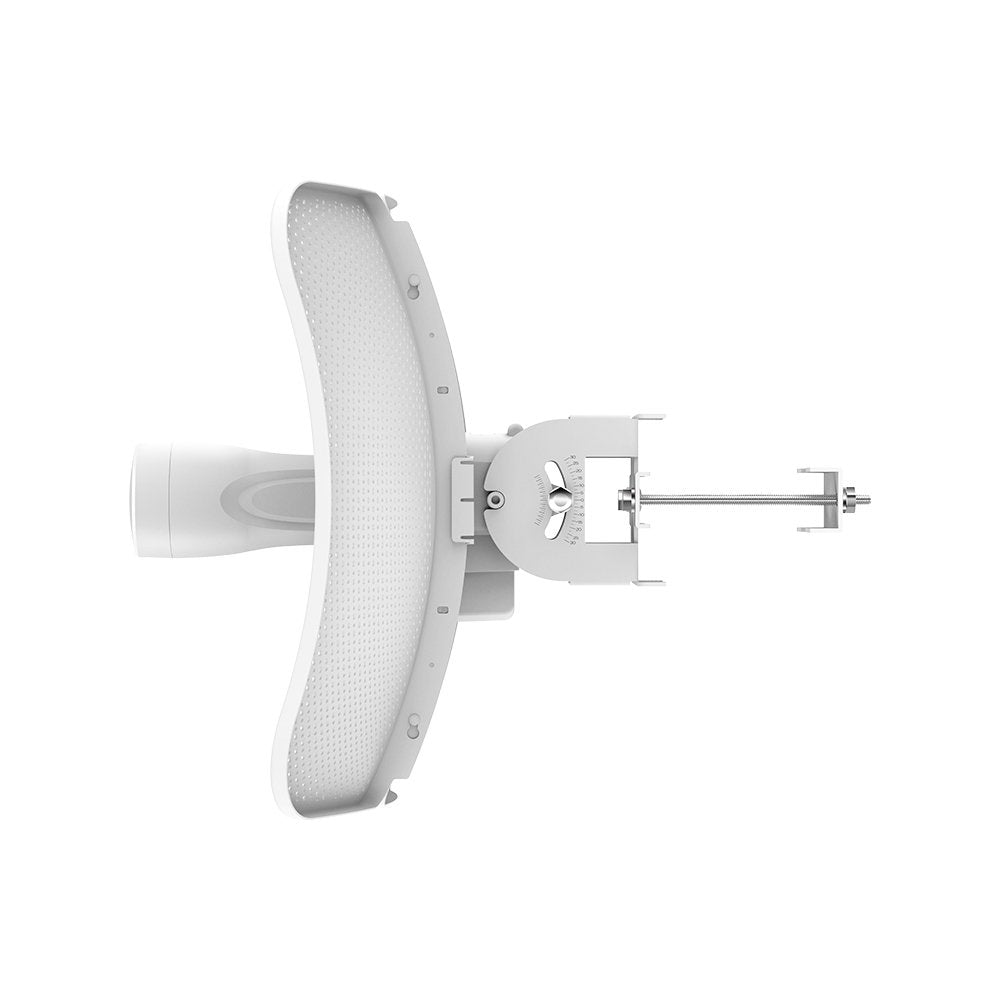

Pole Mounting Straps
AC Power Cord
Installation Guide
Warranty 1 Year Brand Warranty
