DESCRIPTION
10/100Mbps Connectivity: The MC100CM media converter offers reliable 10/100Mbps data transfer, bridging 100BASE-FX fiber and 100Base-TX copper networks efficiently.

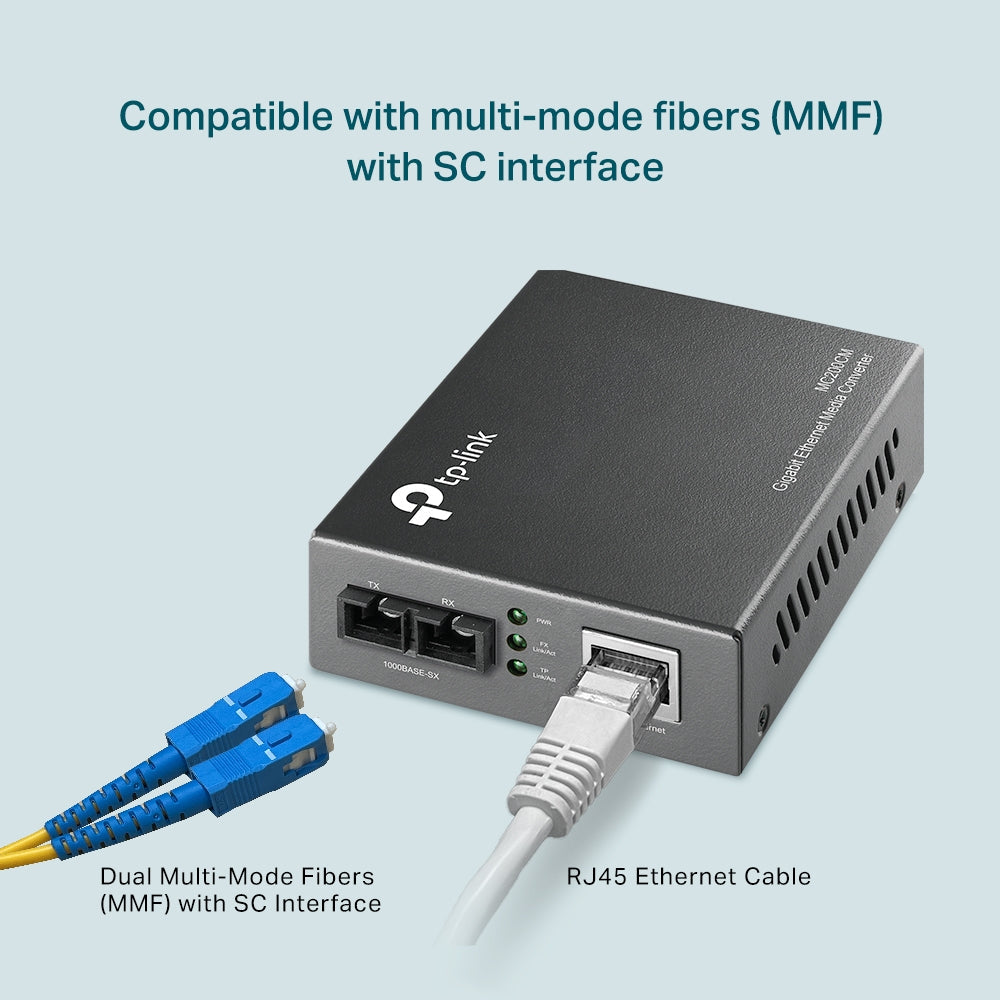

Multi-Mode Fiber Support: It is designed to work with multi-mode fiber cables using an SC-type connector, ensuring broad compatibility with various network configurations.
Extended Transmission Distance: Capable of transmitting data over distances up to 2 kilometers (1.2 miles), this converter is ideal for medium-range network extensions.
Auto MDI/MDI-X: Featuring auto MDI/MDI-X on the TX port, the MC100CM automatically adjusts for straight-through or crossover cables, simplifying installation and reducing setup time.
IEEE 802.3u Compliance: The device adheres to IEEE 802.3u standards for 10/100Base-TX and 100Base-FX, ensuring interoperability with other network devices and compliance with industry standards.
| Model | MC200CM |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 0.55km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |

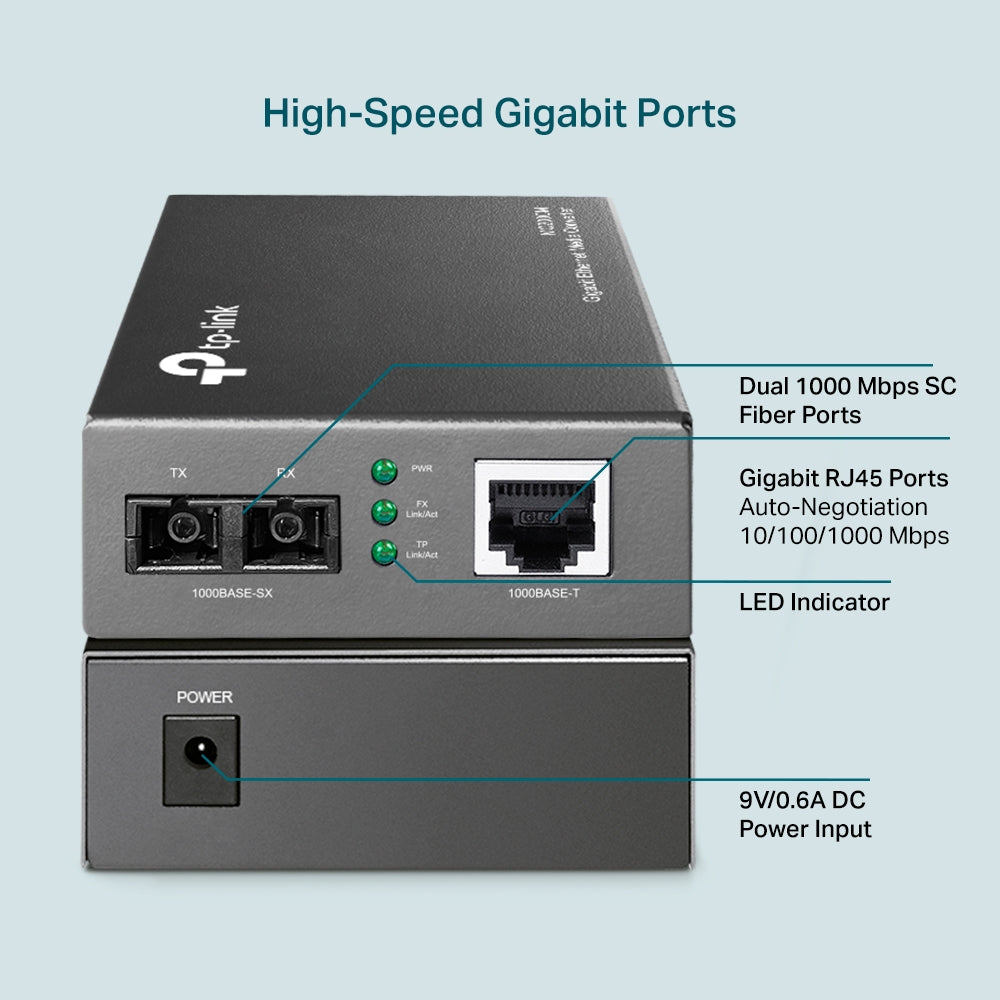

| Interface | 1 1000M SC/UPC port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter |
| LED | PWR, Link/Act |
| Max. Power Consumption | 1.66W |

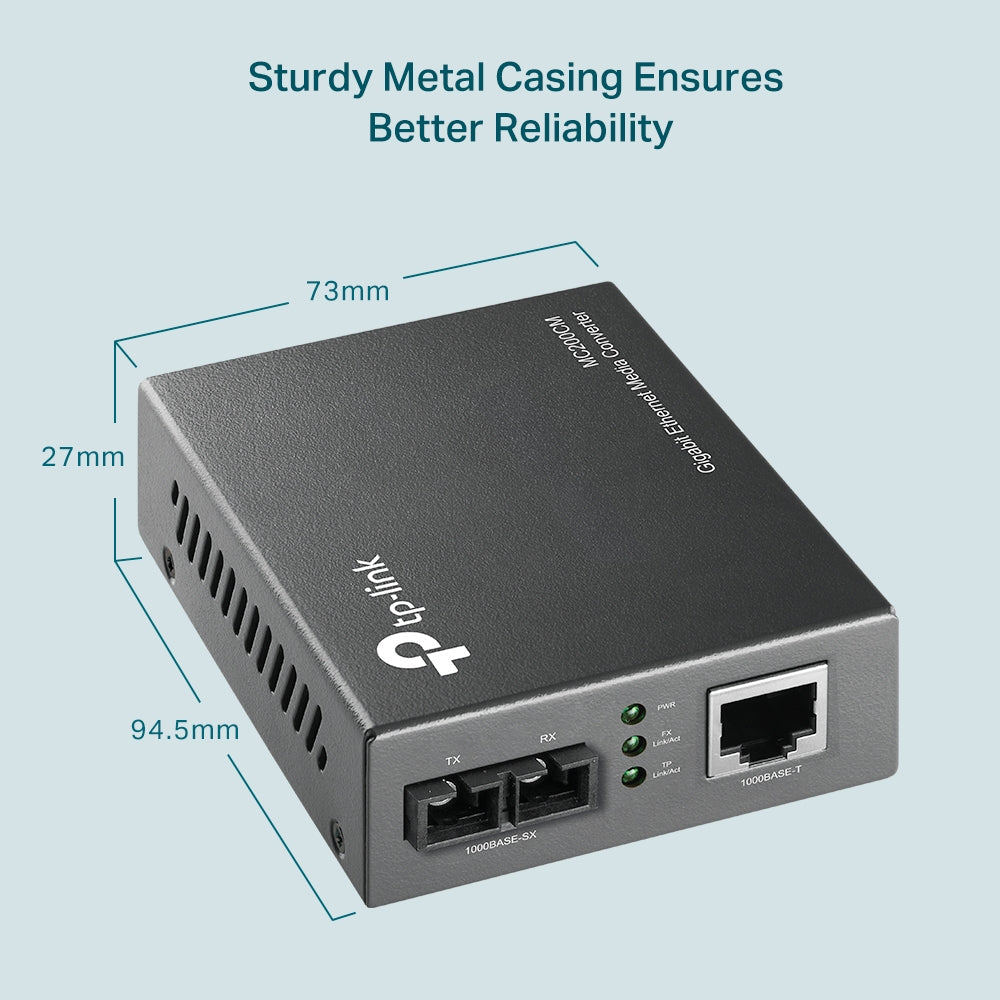

| Dimensions | 94.5 x 73.0 x 27.0 mm |
| Package Content | Media Converter MC200CM Power Adapter Installation Guide |
| Warranty | 3 Year Brand Warranty |
