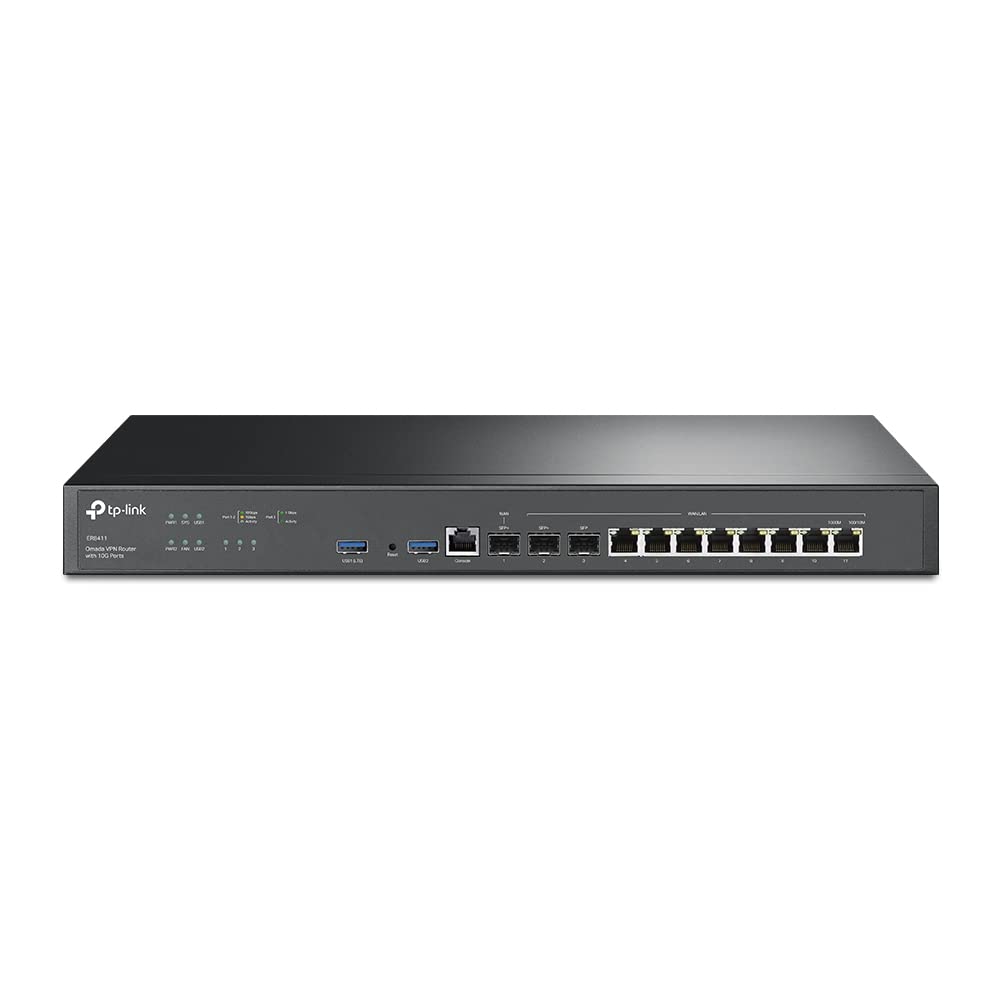

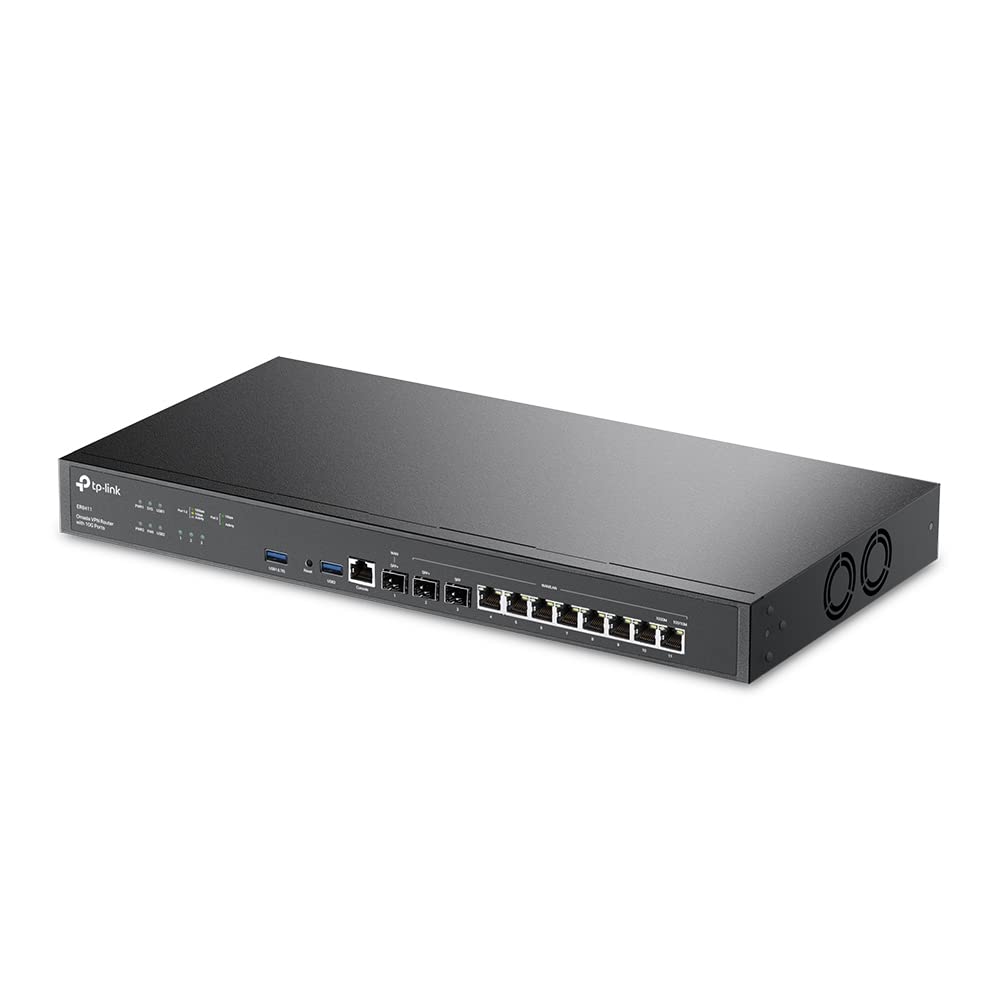

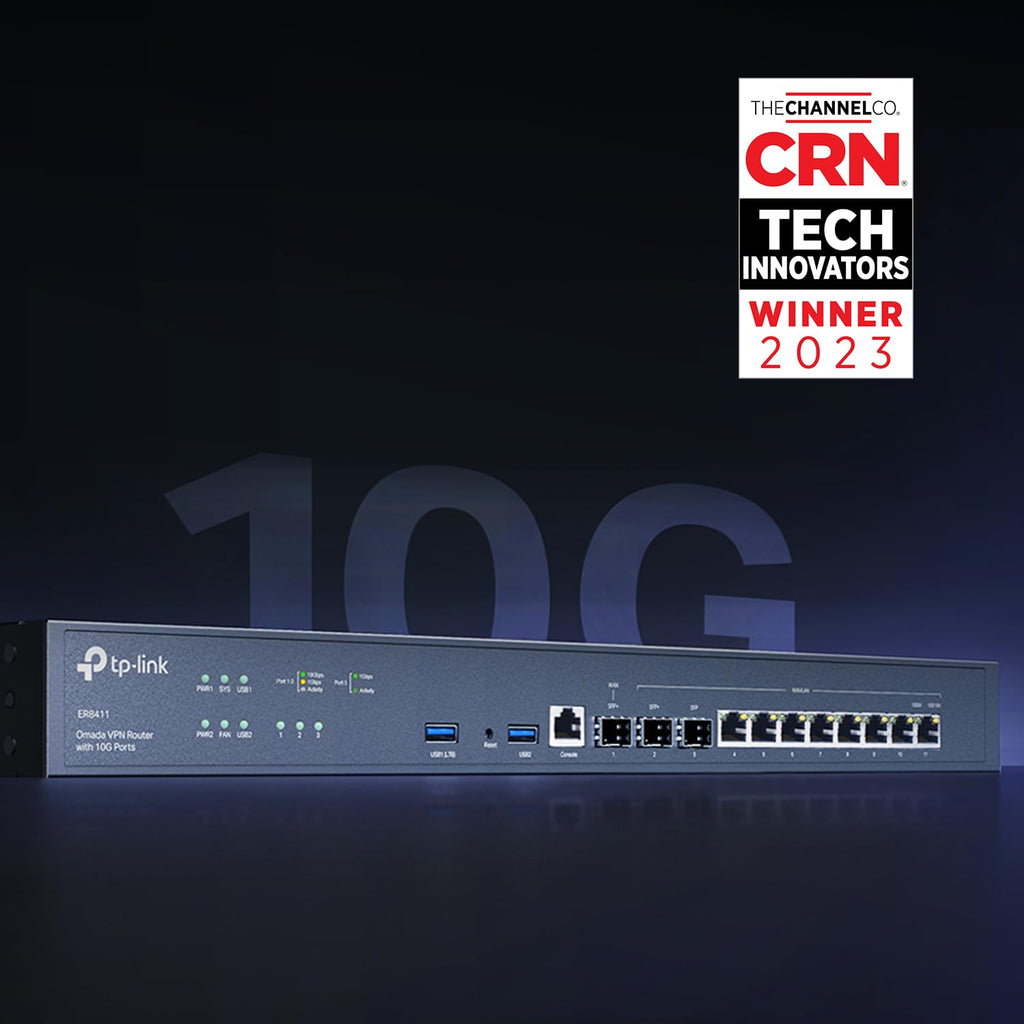

TP-Link Omada ER8411 2.2 GHz Enterprise Wired VPN Router with 10G Ports

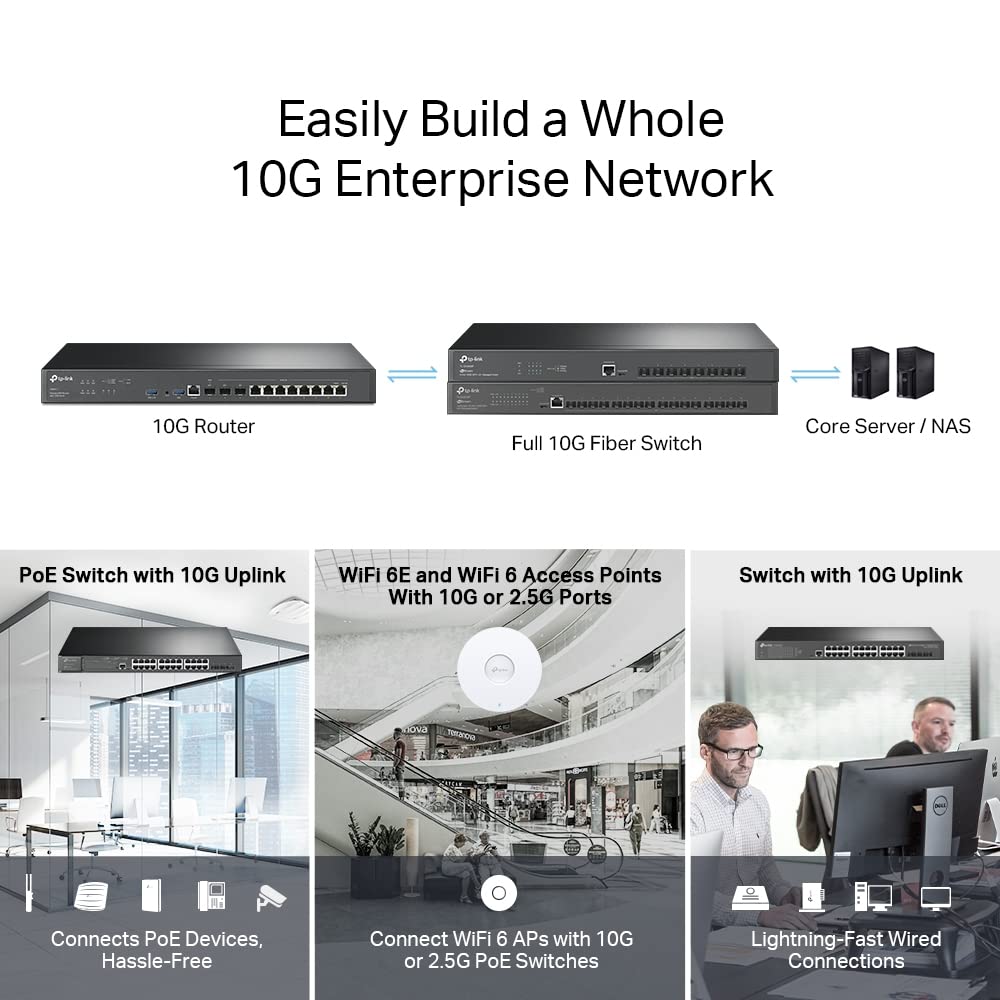

Enterprise-Grade Performance with 10G Connectivity
Equipped with two 10G SFP+ ports (1× WAN and 1× WAN/LAN), the ER8411 delivers ultra-fast wired connections, ideal for high-bandwidth enterprise environments like offices, campuses, and hotels.

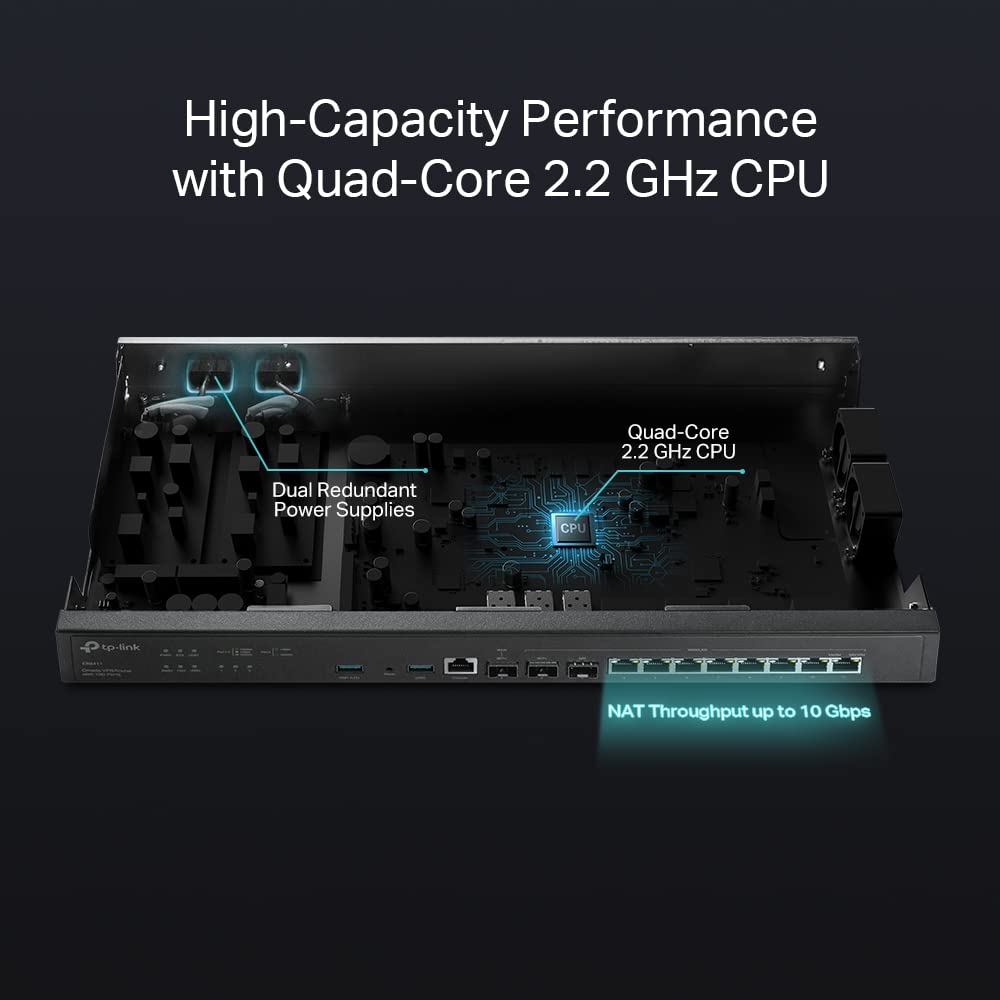

Powerful Quad-Core 2.2 GHz CPU for High-Capacity Networking
The router is powered by a robust quad-core processor, supporting up to 2.3 million concurrent sessions and over 1,000 clients, ensuring smooth performance even under heavy network loads.

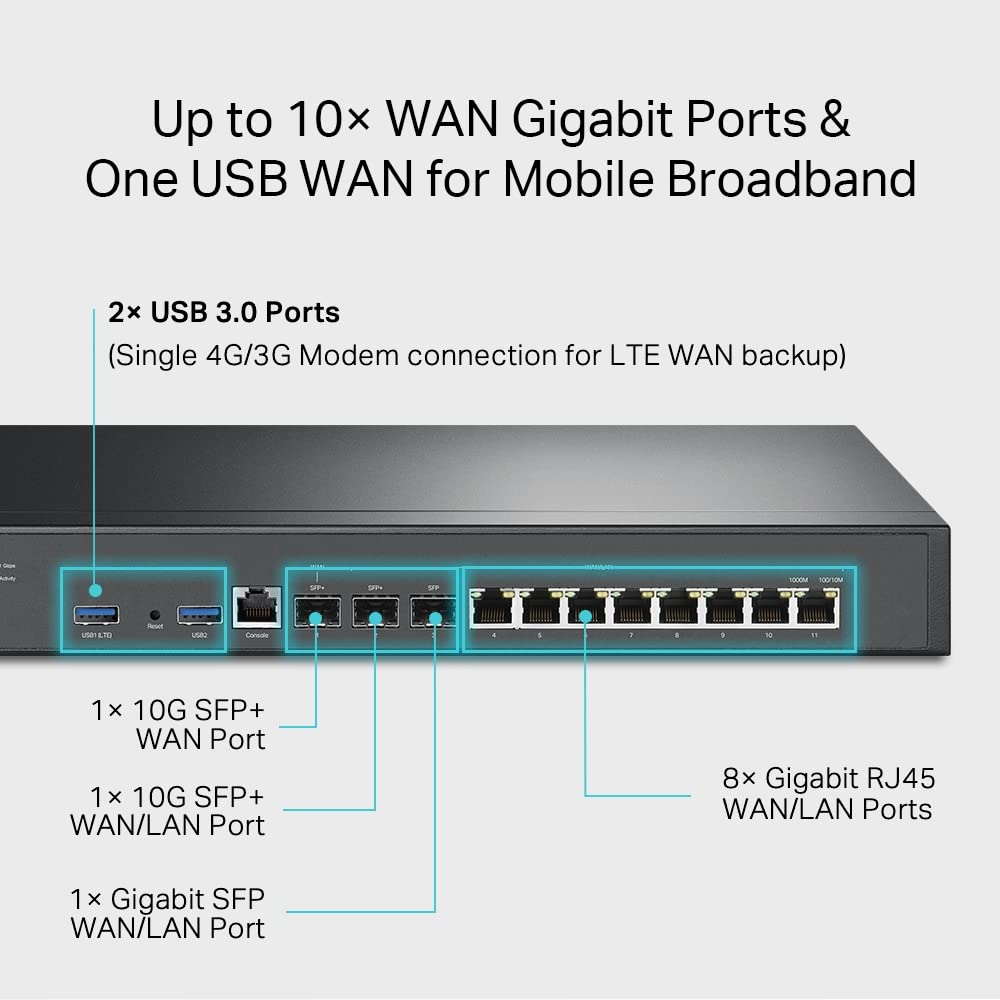

Flexible Multi-WAN Support with Load Balancing
With up to 10 WAN ports (including SFP, SFP+, and RJ45), the ER8411 supports multi-line broadband connections and intelligent load balancing to optimize bandwidth usage and ensure network reliability.

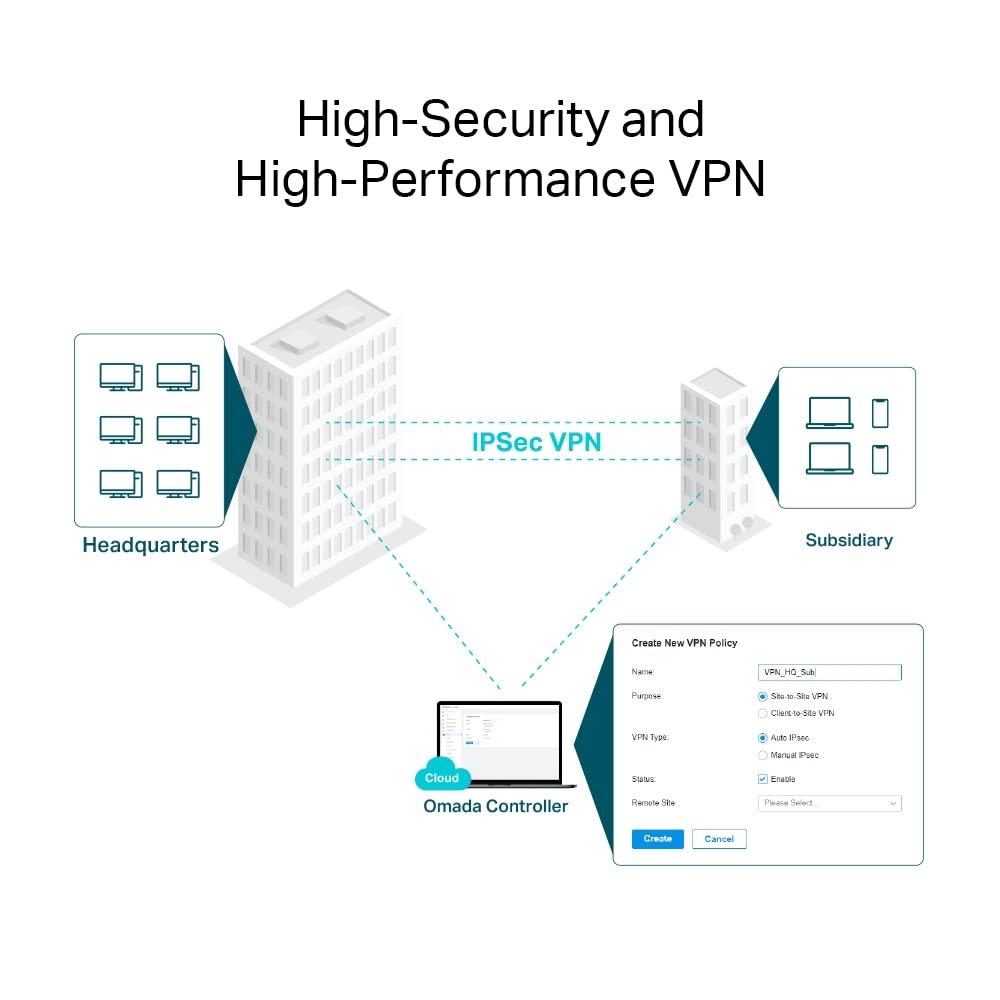

Advanced VPN and Security Features
Supports a wide range of VPN protocols including SSL, IPSec, PPTP, L2TP, and OpenVPN. It also includes enterprise-level security features like a powerful firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC binding.

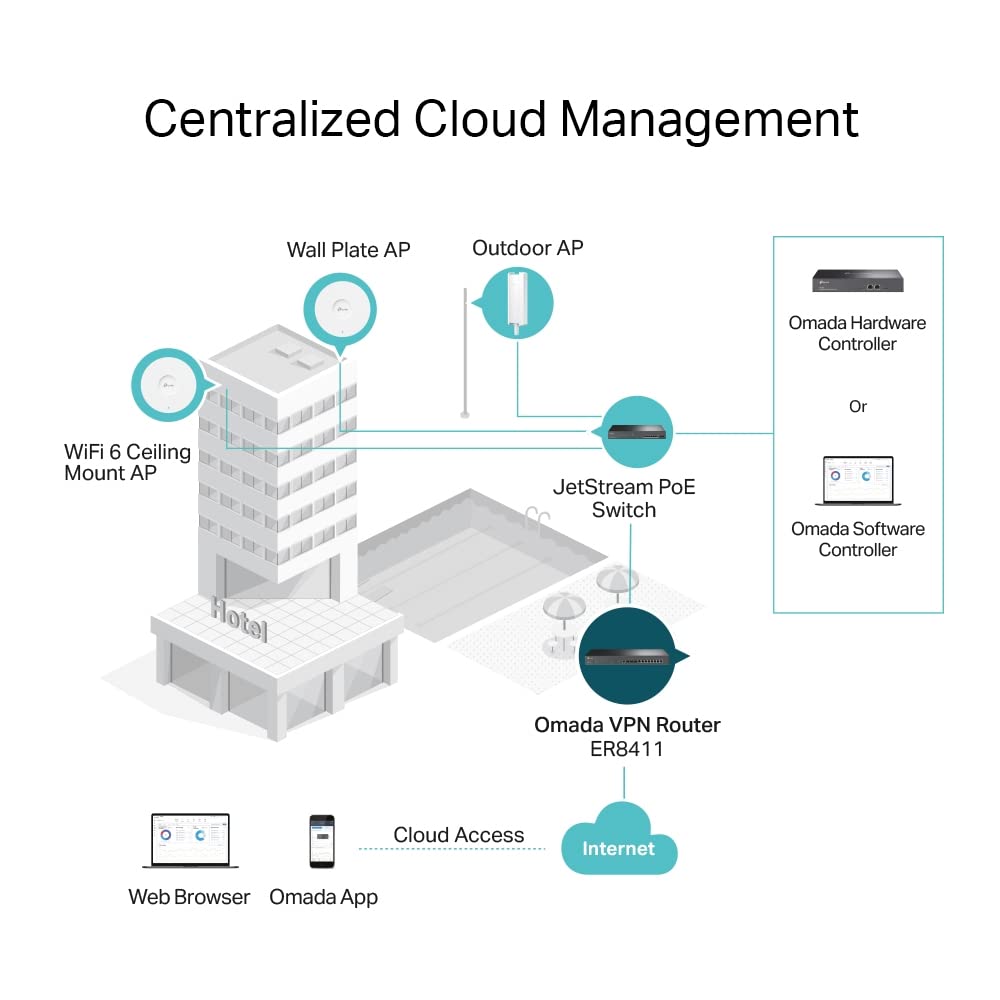

Centralized Cloud Management via Omada SDN
Seamlessly integrates with TP-Link’s Omada SDN platform, allowing centralized management through the Omada app, cloud portal, or hardware/software controllers—ideal for managing multiple sites from a single interface.
Model | ER8411 |
Access Control | Source Destination IP Based Access Control |
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |
Interface |
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
Fan Quantity | 2 |
Button | Reset Button |

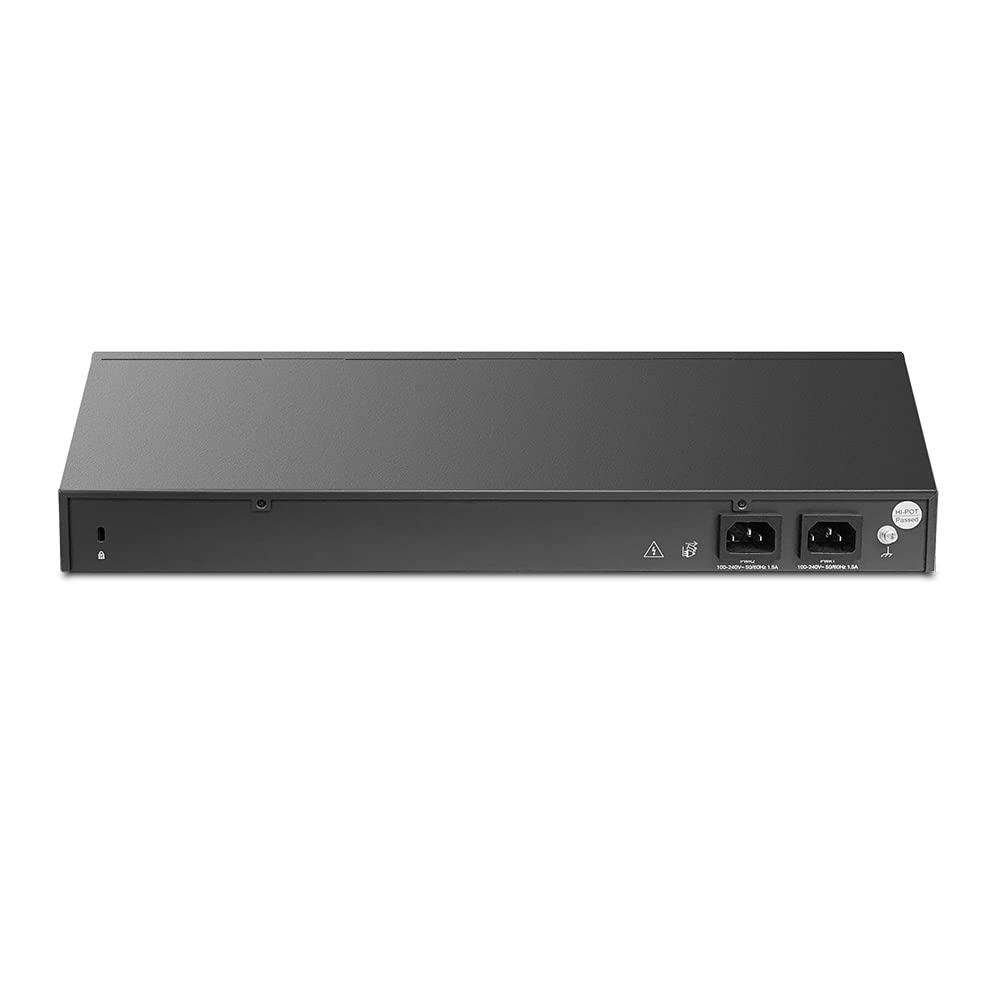

Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
Flash | 4MB SPI NOR + 256 MB NAND |
DRAM | 4 GB DDR4 |
Mounting | Rack Mountable |
Max. Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
Dimensions | 440 × 220 × 44 mm |
Package Content | Omada 10G Multi-WAN Security Gateway ER8411 Power Cord Rack-Mount Kit Quick Installation Guide |
Warranty | 5 Year Brand Warranty |
