DESCRIPTION

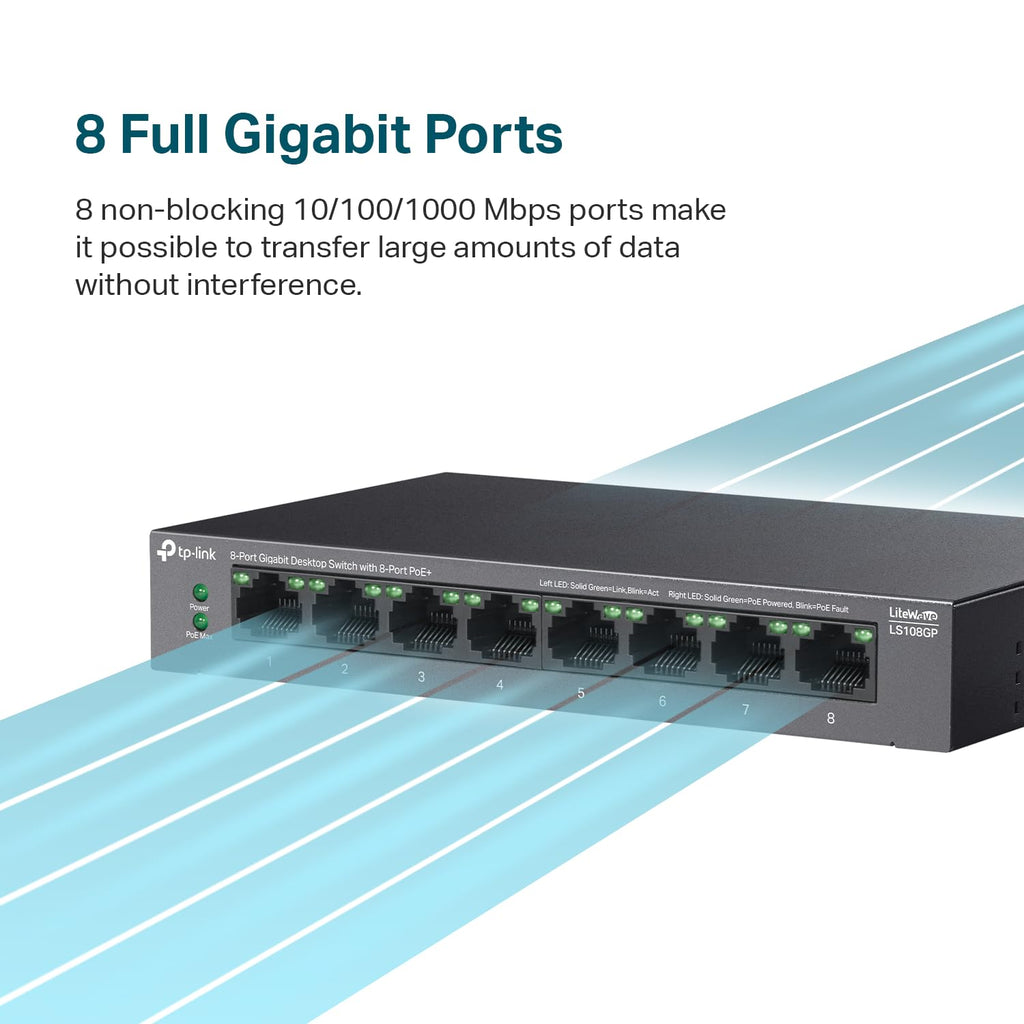

Full Gigabit Ports: The switch is equipped with eight gigabit Ethernet ports, each capable of auto-negotiation. This setup ensures a robust and high-speed network, supporting up to 16 Gbps of total switching capacity. This is ideal for handling large data transfers and ensuring smooth network performance across multiple devices.

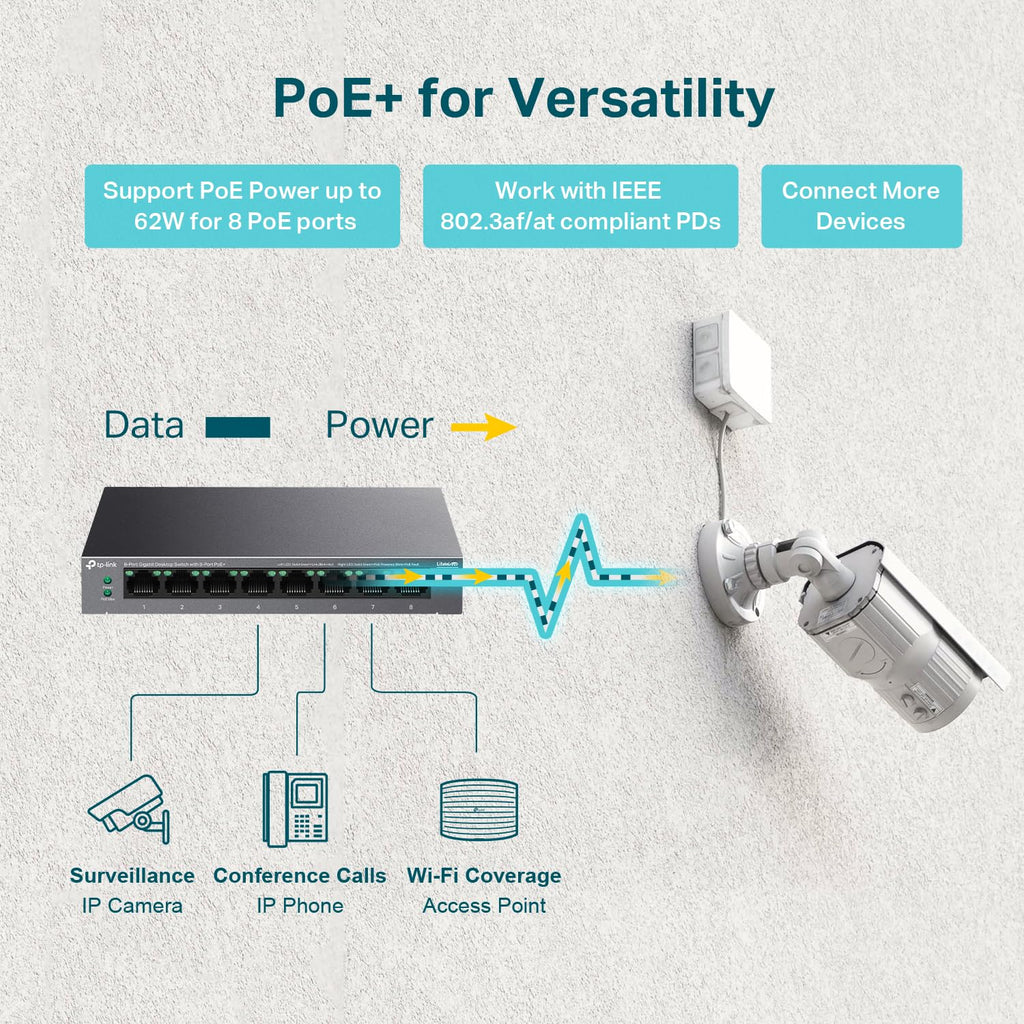

62 W PoE Budget: Each of the eight ports supports Power over Ethernet Plus (PoE+), with a total power budget of 62 watts. This means you can power devices like IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable, simplifying installation and reducing the need for additional power supplies.
Extended PoE Transmission: The switch features an Extend Mode that allows PoE transmission distances to reach up to 250 meters. This is particularly beneficial for deploying devices like surveillance cameras in larger areas, where standard Ethernet cables would typically fall short.

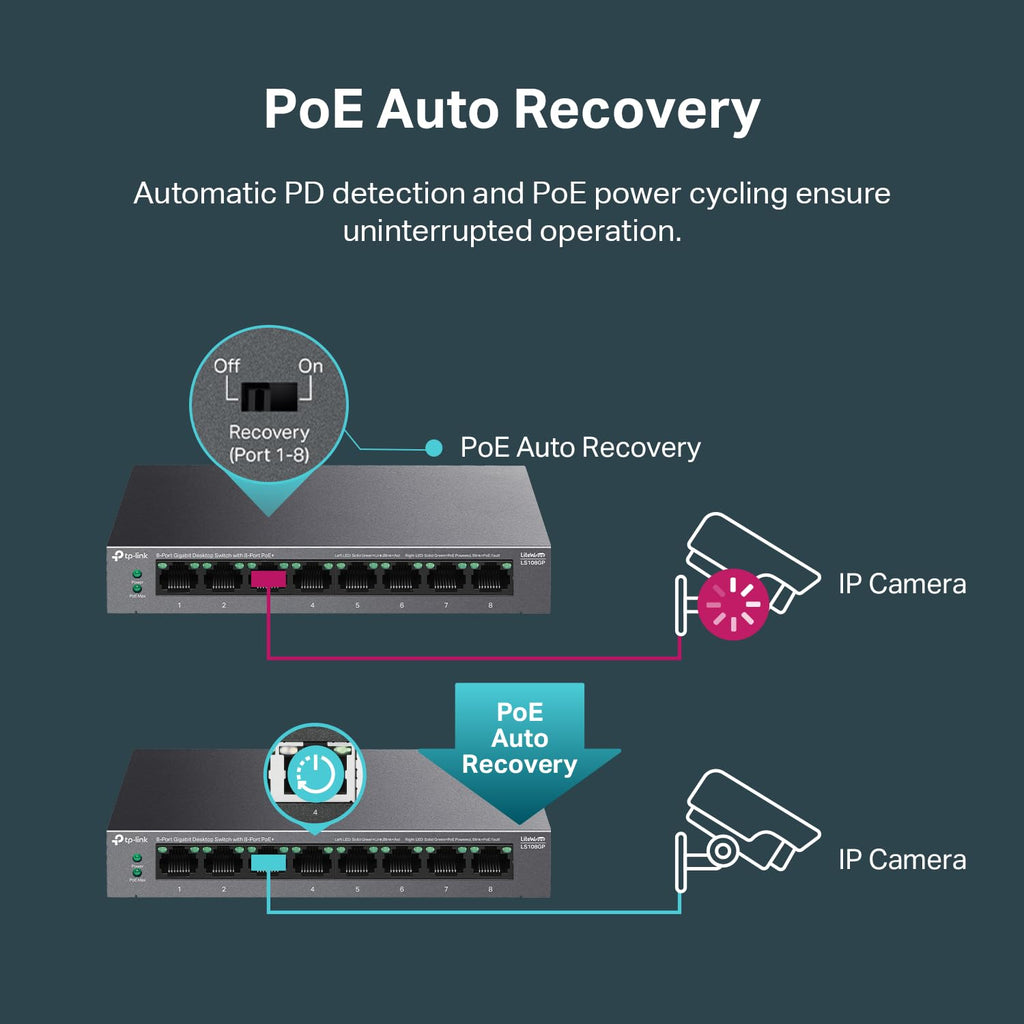

PoE Auto Recovery: One of the standout features is its ability to automatically detect and reboot unresponsive PoE-powered devices. This ensures that your network remains operational with minimal downtime, as the switch can autonomously manage and recover from device failures without manual intervention.

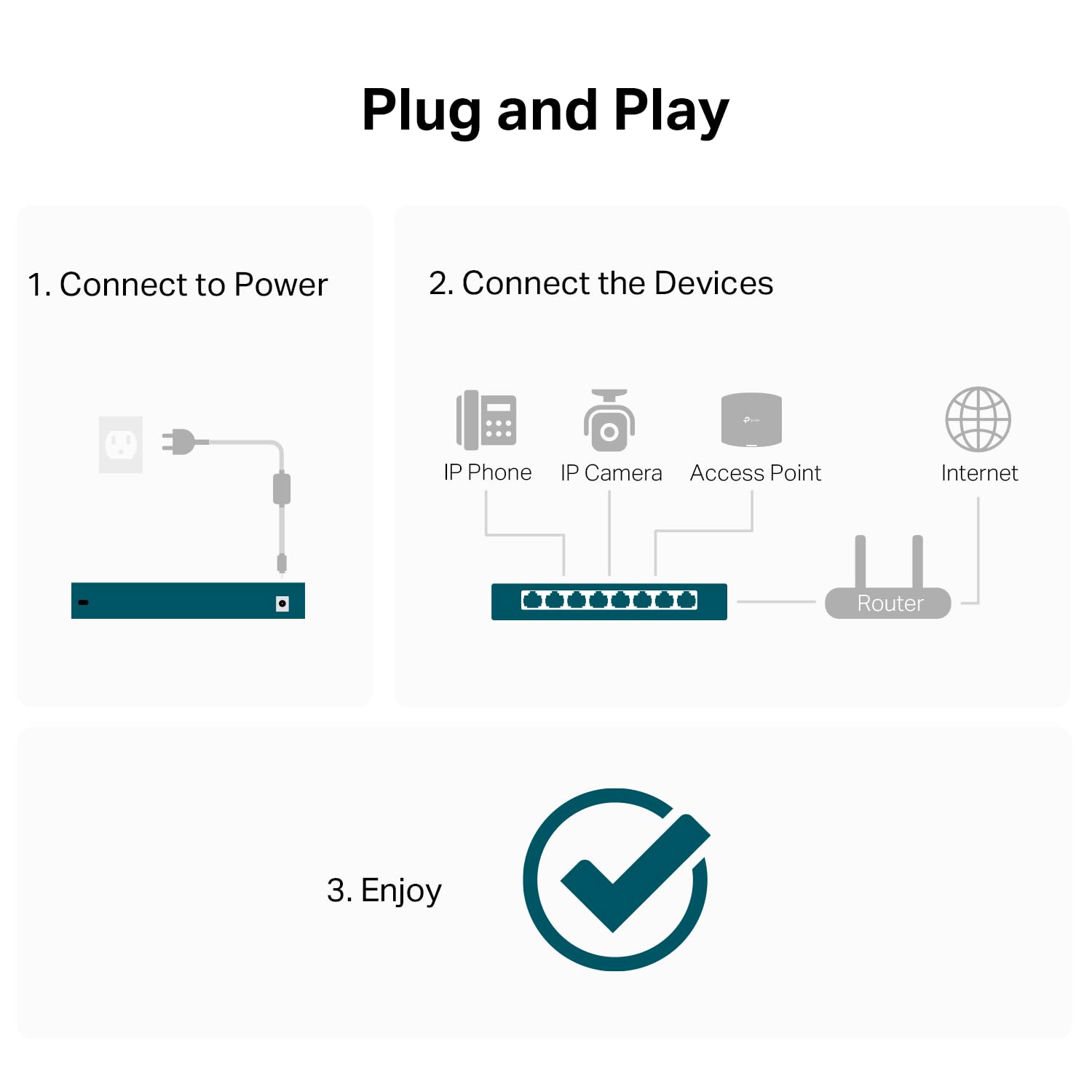

Plug and Play with Silent Operation: The LS108GP is designed for ease of use, requiring no configuration for setup. Its fanless design ensures silent operation, making it an excellent choice for environments where noise levels need to be kept to a minimum, such as offices or residential areas.
Model | LS108GP |
Interface | 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Installation | Desktop Wall Mounting |
PoE Ports (RJ45) |
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Budget: 62 W
|
Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Max. Power Consumption | 5.53 W (220 V/50 Hz. no PD connected) 71.61 W (220 V/50 Hz. with 62 W PD connected) |
Max Heat Dissipation | 18.81 BTU/h (220 V/50 Hz. no PD connected) 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mpps |
Dimensions | 158×99×25 mm |
Package Content | LS108GP Power Adapter Installation Guide |
Warranty | 3 Year Brand Warranty |
