DESCRIPTION

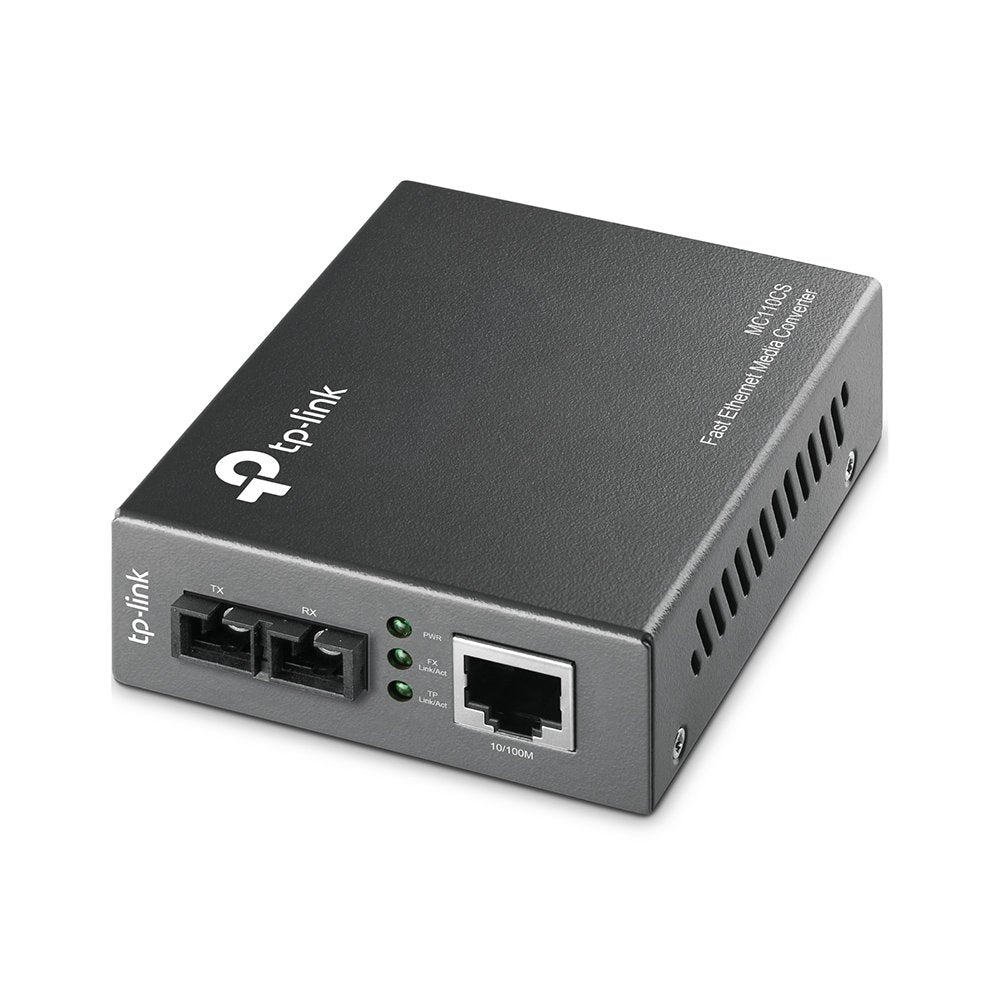

Standards Compliance: The MC110CS complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, ensuring compatibility with a wide range of network devices .
Auto-Negotiation: It features auto-negotiation for Half-Duplex and Full-Duplex transfer modes, optimizing data transmission efficiency based on network conditions .

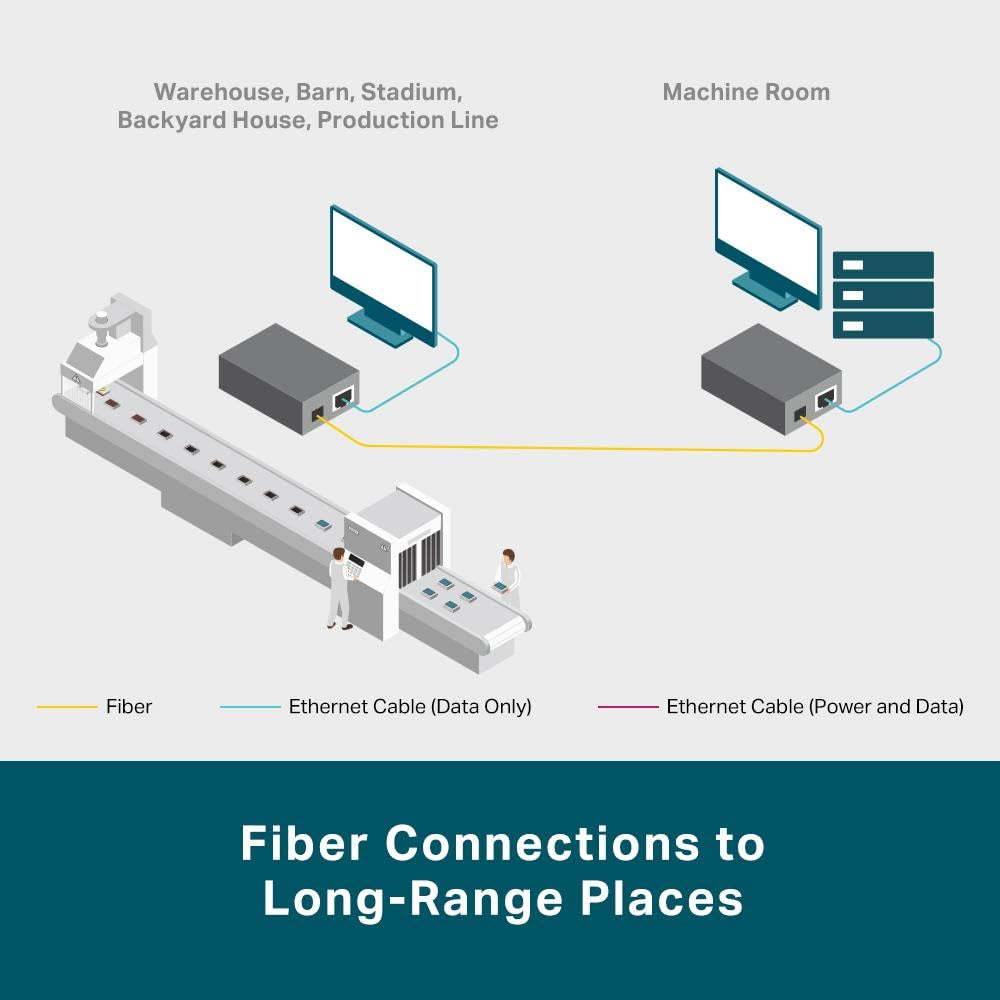

Extended Transmission Distance: This media converter supports transmission distances up to 20 kilometers (12.4 miles) using 9/125 μm single-mode fiber, making it suitable for long-distance network connections .
SC-Type Connector: Designed for use with single-mode fiber cables, the MC110CS utilizes an SC-Type connector, which is a standard interface for fiber optic connections .
Full Wire Speed Forwarding: It supports longwave (LX) laser specifications at a full wire speed forwarding rate, ensuring high-speed data transmission without bottlenecks
| Model | MC110CS |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km |
| Interface | 1 1000M SC/UPC port 1 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter |
| LED | PWR, Link/Act |
| Max. Power Consumption | 2.4W |
| Dimensions | 94.5 x 73.0 x 27.0 mm |
| Package Content | Media Converter MC110CS Power Adapter Installation Guide |
| Warranty | 3 Year Brand Warranty |
