DESCRIPTION
High-Speed Ethernet: The TL-SM311LM module provides 1000Mbps Ethernet connectivity, operating at an 850nm wavelength. This ensures fast and efficient data transfer, making it suitable for various network environments.

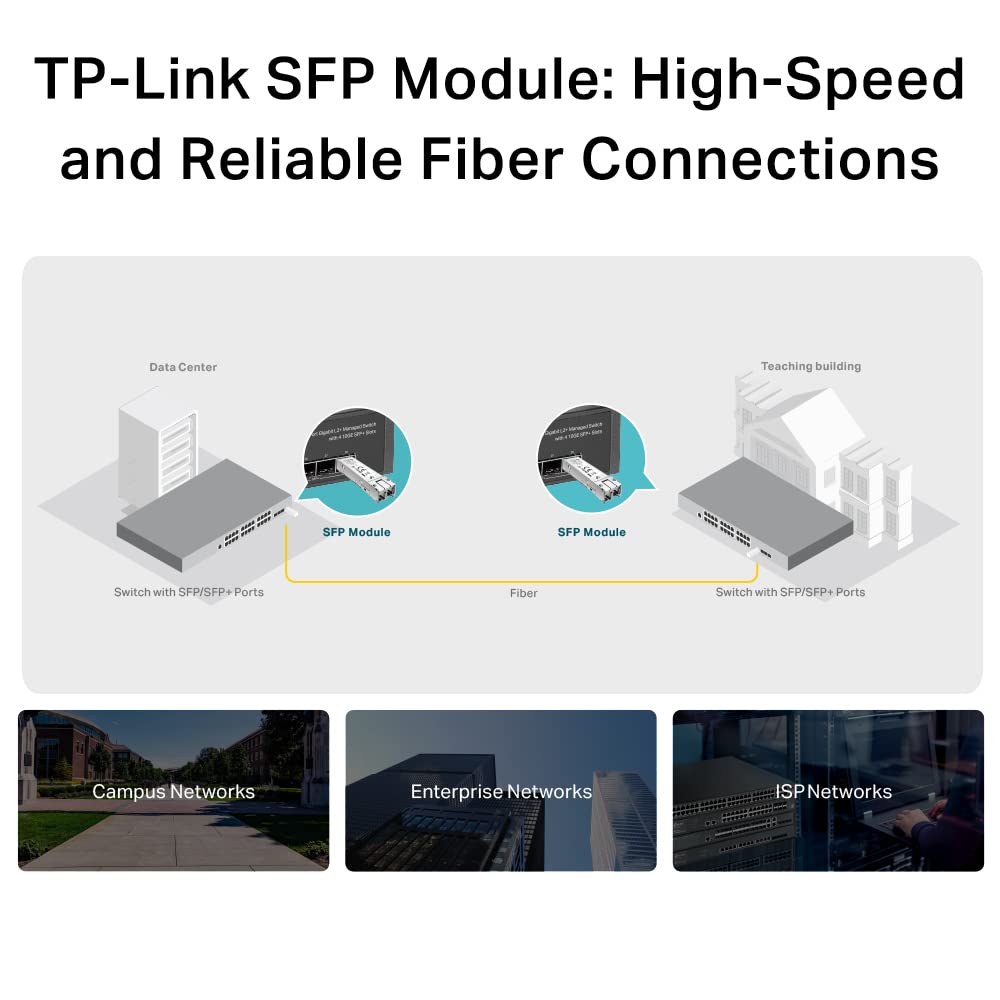

Medium-Distance Connectivity: Designed for multi-mode fiber, this module supports connections up to 550 meters with 50/125µm fiber cables and up to 275 meters with 62.5/125µm fiber cables. This range is ideal for medium-distance networking applications, such as within buildings or campus networks.
Hot-Pluggable Design: The TL-SM311LM features a hot-pluggable design, allowing for easy installation and removal without needing to power down the network device. This feature simplifies network maintenance and upgrades, minimizing downtime.

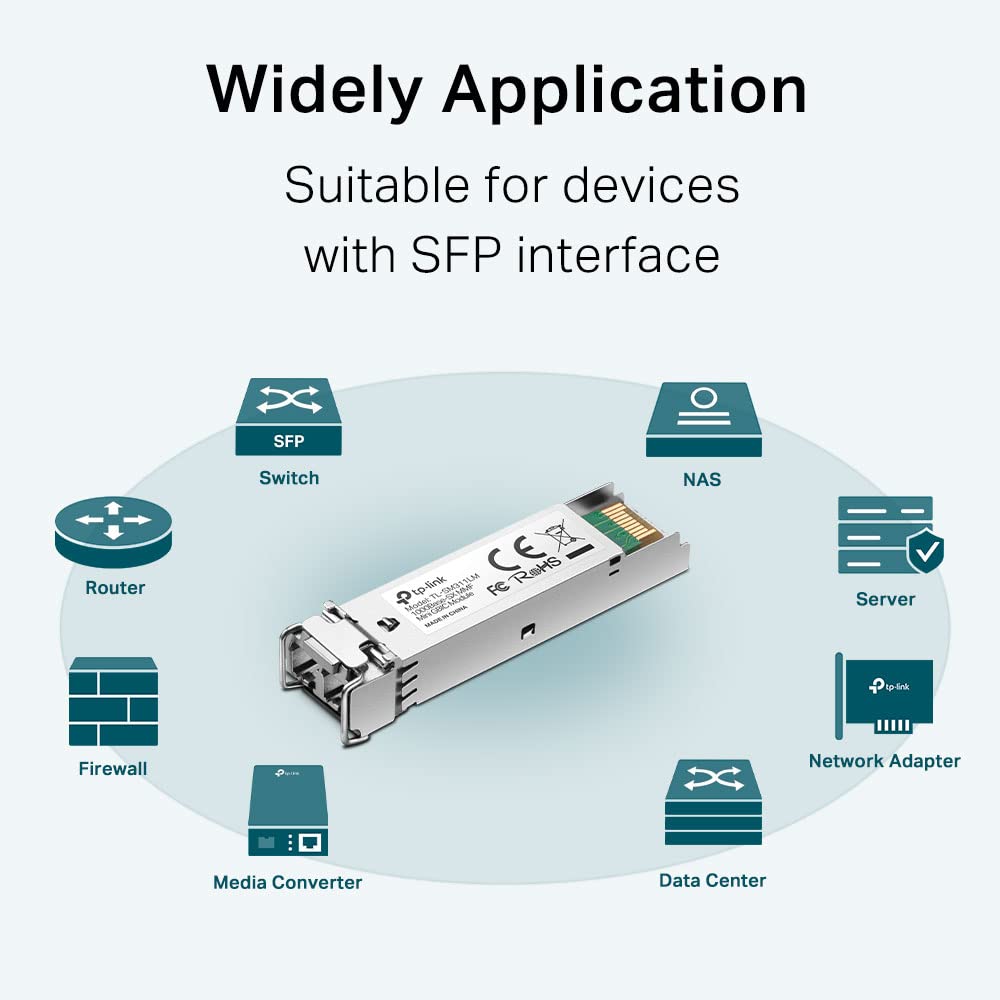

Broad Compatibility: Compatible with any device featuring an SFP port, including TP-Link JetStream switches and media converters like the MC220L. This ensures reliable performance and interoperability across various network devices.

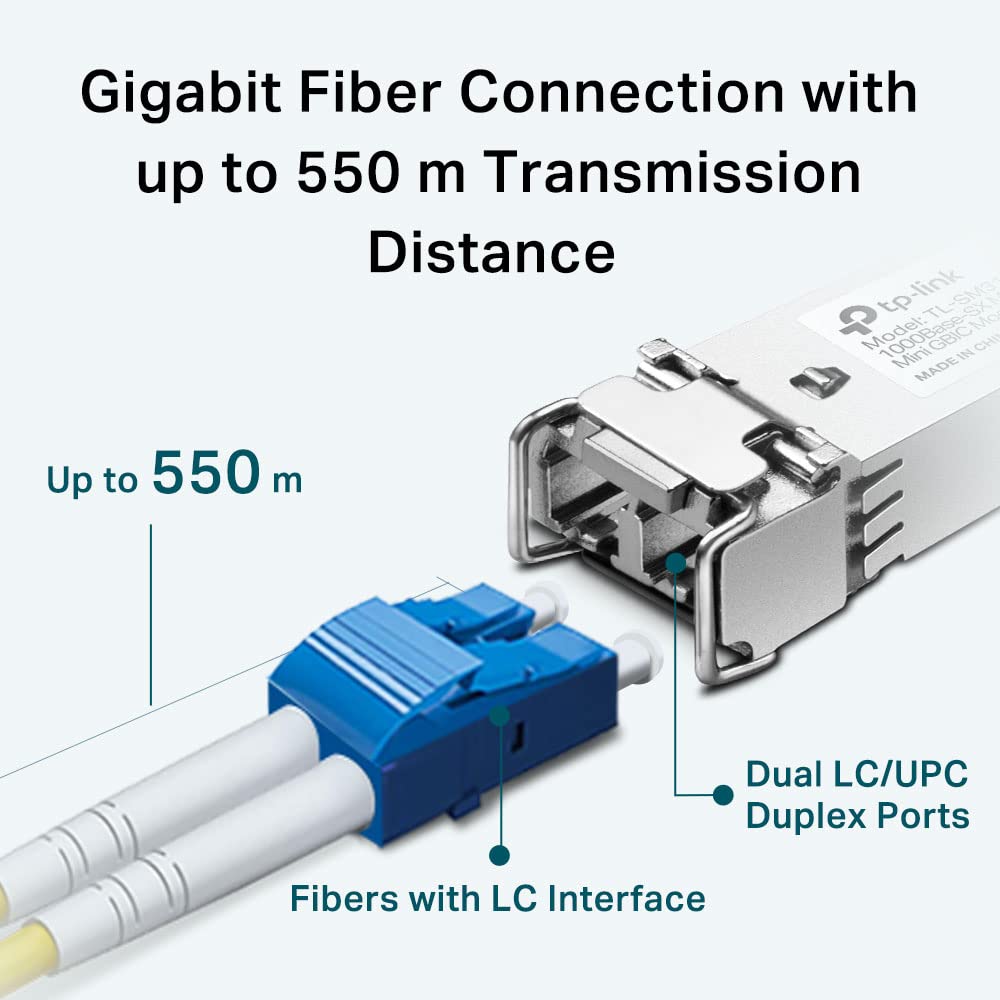

User-Friendly Setup: With a plug-and-play design, the module is straightforward to install, reducing the complexity of network deployment. Its LC/UPC interface guarantees a secure and stable connection, enhancing overall network reliability.
| Model | TL-SM311LM |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Hardware Features | DDM SFP-MSA Hot Swappable |

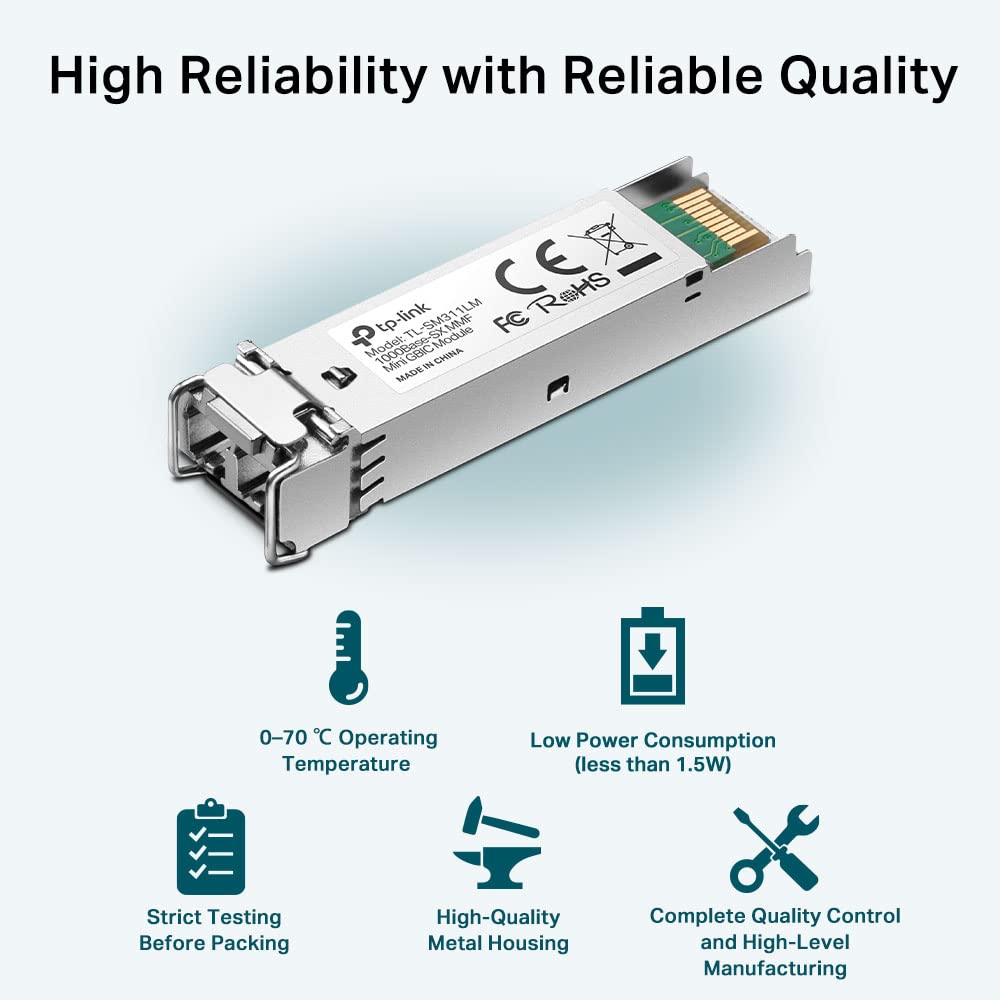

| Environment | Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Dimensions | 55.4*13.7*12.9 mm |
| Package Content | SM311LM Installation Guide |
| Warranty | 3 Year Warranty |
