DESCRIPTION

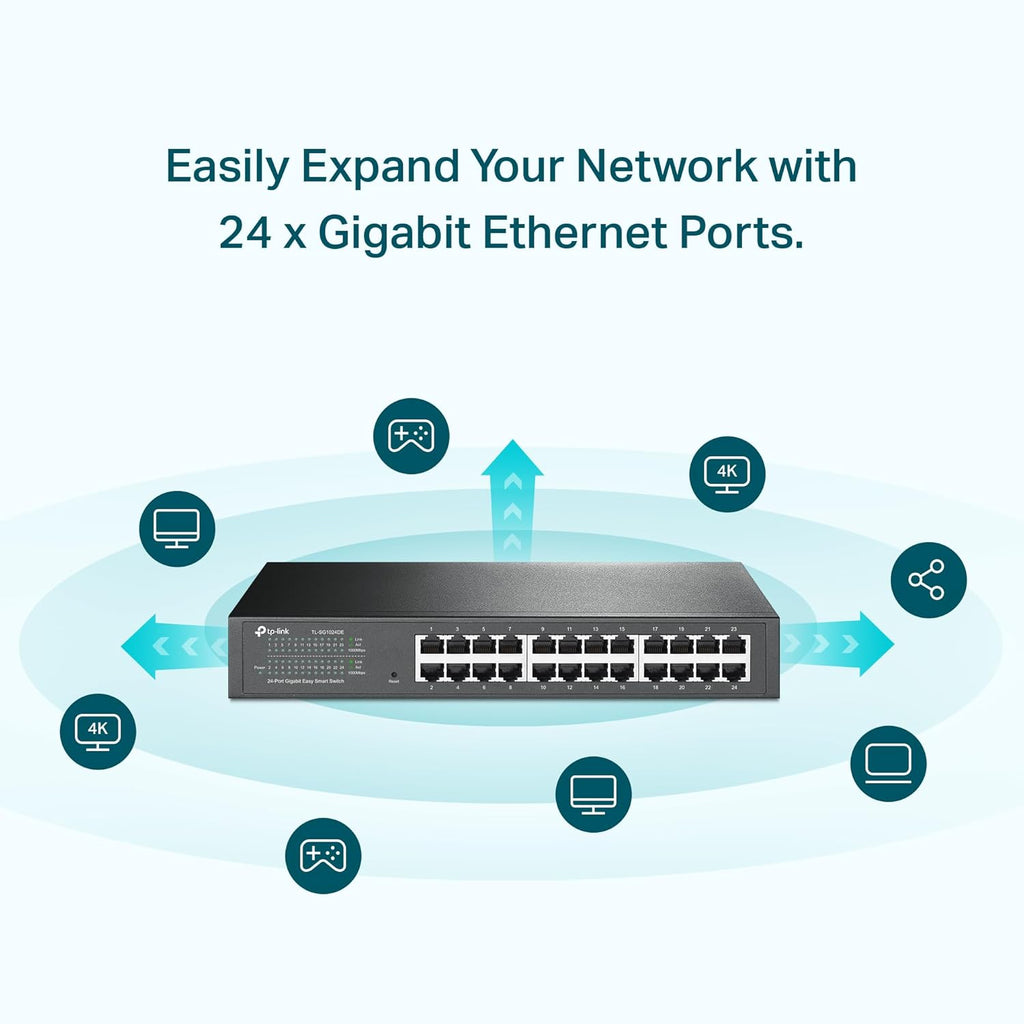

24 Gigabit Ethernet Ports: This switch is equipped with 24 10/100/1000Mbps RJ45 ports, providing extensive connectivity options for various devices. Each port supports auto MDI/MDIX, which eliminates the need for crossover cables and simplifies the setup process.
Network Monitoring and Management: The switch includes advanced features such as Port Mirroring, Loop Prevention, and Cable Diagnostics. These tools allow network administrators to monitor traffic, identify and troubleshoot issues, and maintain a stable and efficient network environment.
Quality of Service (QoS): With support for Port-based/802.1p/DSCP QoS, the switch can prioritize network traffic to ensure that latency-sensitive applications like voice and video run smoothly. This is essential for maintaining high-quality communication and media streaming without interruptions.

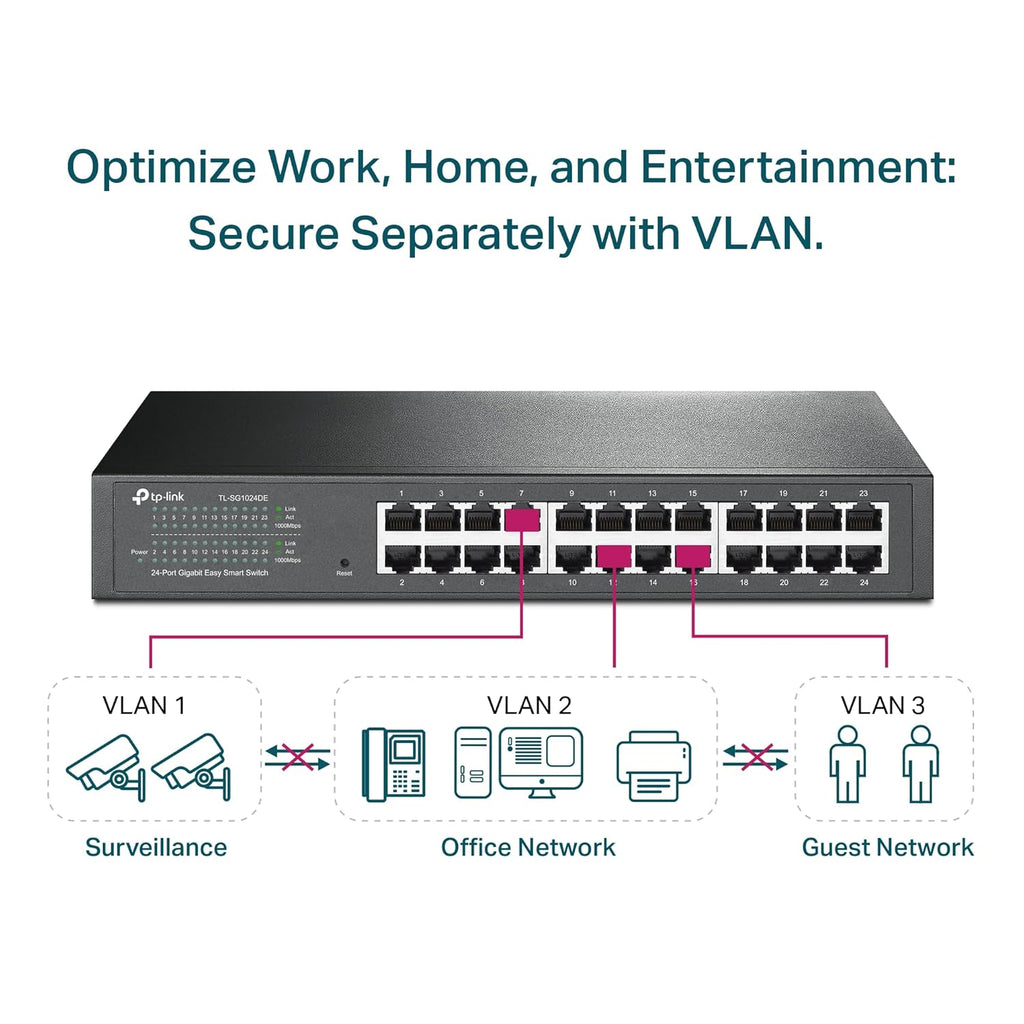

VLAN Support: The TL-SG1024DE supports MTU VLAN, port-based VLAN, and 802.1Q-based VLAN. These features enhance network security and performance by segmenting the network into smaller, isolated sections, allowing for more effective traffic management and protection of sensitive data.
Energy-Efficient Technology: This switch incorporates innovative energy-saving features that reduce power consumption. It automatically adjusts power usage based on the link status and cable length, making it an eco-friendly choice for businesses looking to reduce their carbon footprint.

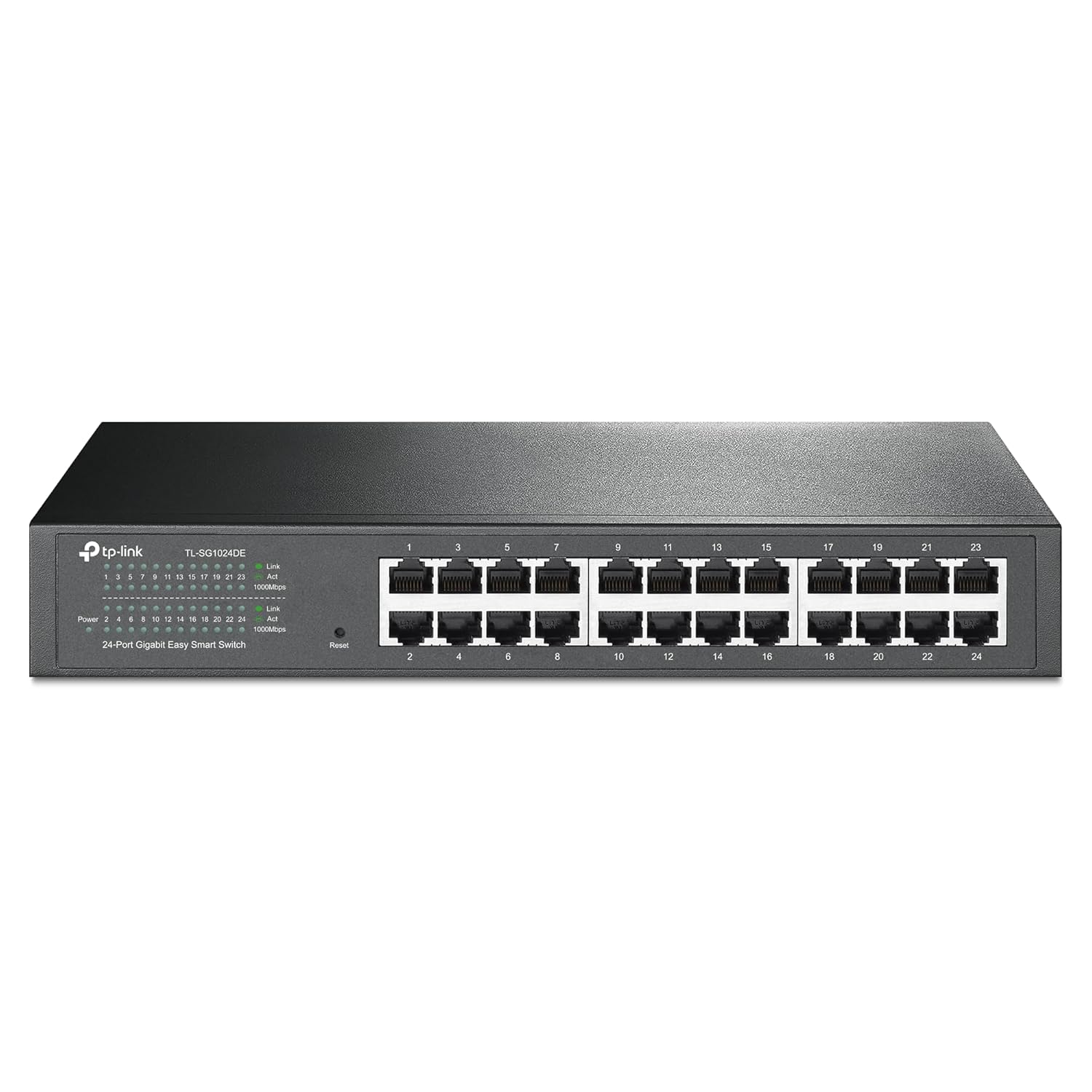

Model | TL-SG1024DE |
Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p |
Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Power Supply | 100-240VAC, 50/60Hz |
Max. Power Consumption | 14.19W (220V/50Hz) |
Switching Capacity | 48Gbps |
Packet Forwarding Rate | 35.7Mpps |
Mounting | Rack Mountable |

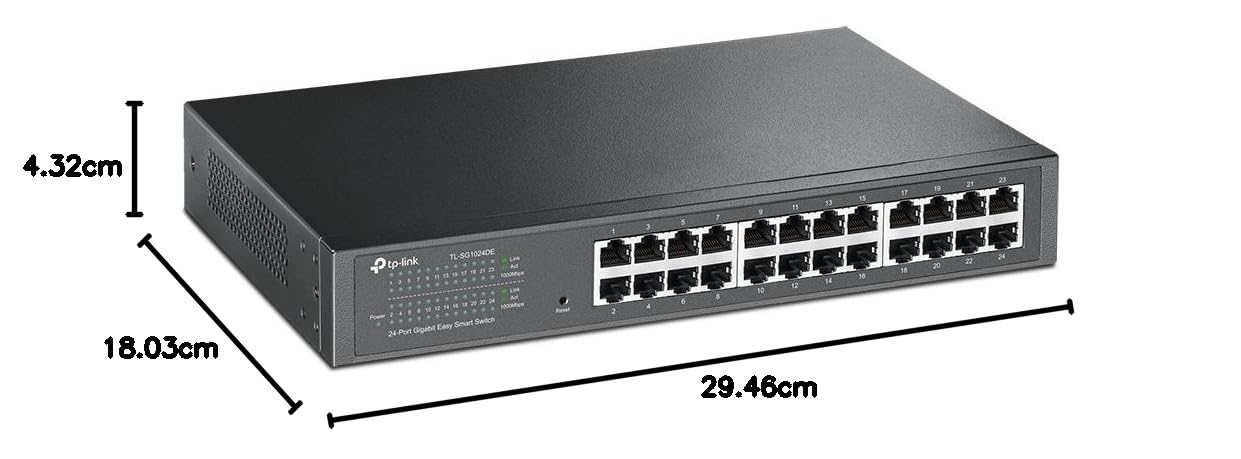

Dimensions | 294 x 180 x 44 mm |
System Requirements | Microsoft Windows for Easy Smart Utility |
Package Content | TL-SG1024DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
Warranty | 1 Year Brand Warranty |
