DESCRIPTION
High PoE Power Budget: This switch is equipped with 8 PoE+ ports, each capable of delivering up to 30W of power, with a total PoE budget of 63W. This makes it ideal for powering devices such as IP cameras, access points, and IP phones, providing flexibility and reducing the need for additional power infrastructure.
Extended Transmission Range: The switch supports an extended PoE transmission range of up to 250 meters in Extend Mode. This feature is perfect for deploying IP cameras over large areas, although the speed will be downgraded to 10 Mbps in this mode to ensure stable connections over longer distances.
Priority and Isolation Modes: Priority Mode ensures high priority for ports 1-2, guaranteeing the quality of sensitive applications like video monitoring. Isolation Mode allows for one-click client traffic separation, enhancing security and performance by preventing broadcast storms and improving LAN security.
Versatile Connectivity Options: In addition to the 8 PoE+ 10/100/1000 Mbps ports, the switch includes 1 additional Gigabit RJ45 port and 1 Gigabit SFP slot. This ensures smooth streaming and high-speed connections even when multiple devices are in use simultaneously, providing robust and reliable network performance.

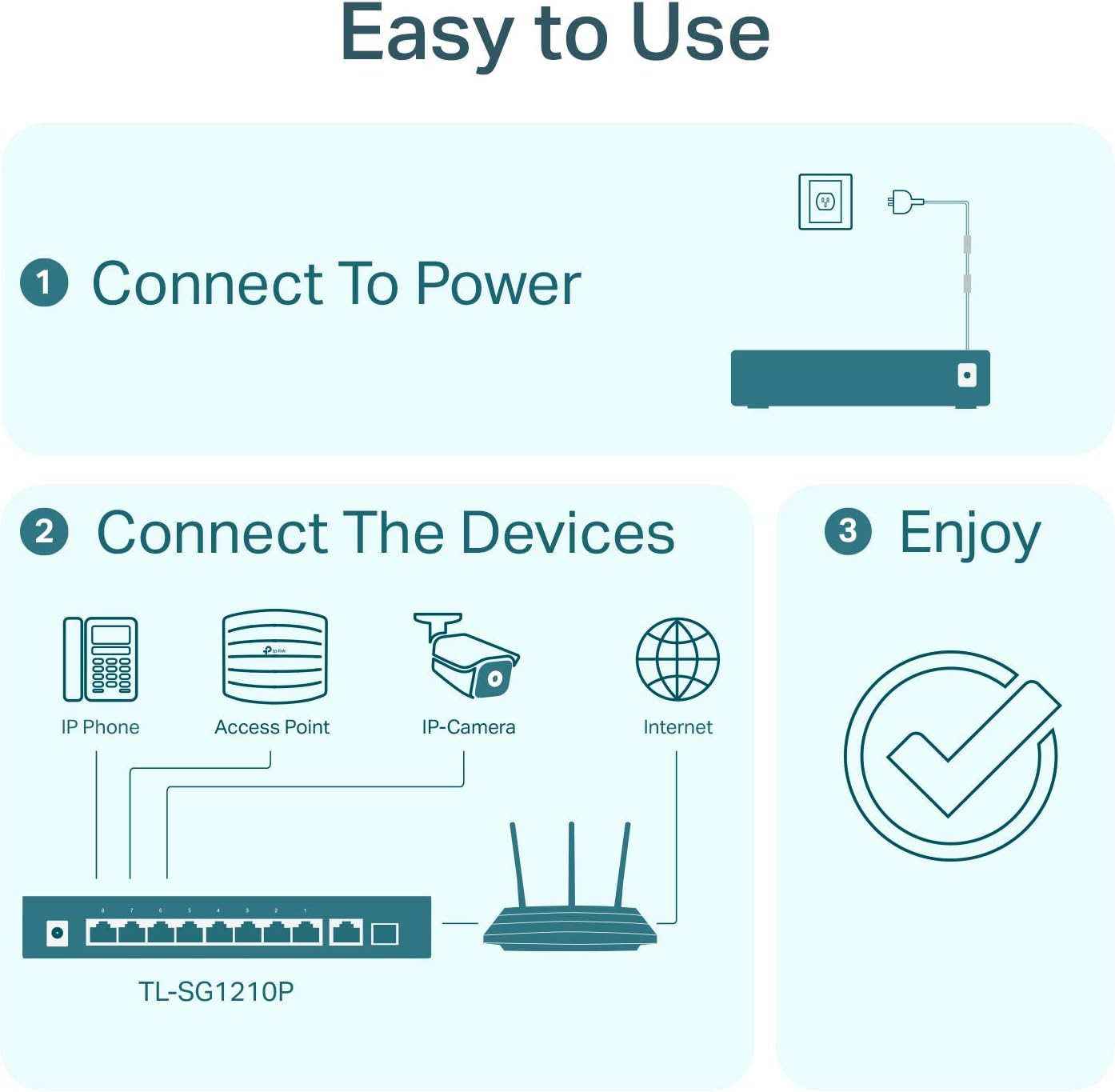

Plug and Play: Designed for ease of use, the switch offers a plug-and-play setup, requiring no software installation or configuration. This makes it an excellent choice for small to medium-sized businesses looking for a hassle-free network solution, allowing for quick and easy deployment.
Model | TL-SG1210P |
Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | Fanless |
Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
Max. Power Consumption | 7.0 W (220/50Hz. no PD connected) 77.24 W (220/50Hz. with 63W PD connected) |
Max Heat Dissipation | 23.87 BTU/h (no PD connected) 263.39 BTU/h (with 63W PD connected) |
Switching Capacity | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
System Requirements | Microsoft Windows for running Utility |
Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) Priority Mode Button (Ports 1–2) Isolation Mode Button (Ports 1–4 / 5-8) PoE Auto Recovery (Ports 1-8) |
Dimensions | 209 × 126 × 26 mm |
Package Content |
TL-SG1210P
Power Adapter
Installation Guide
|
Warranty |
1 Year Brand Warranty
|
