DESCRIPTION

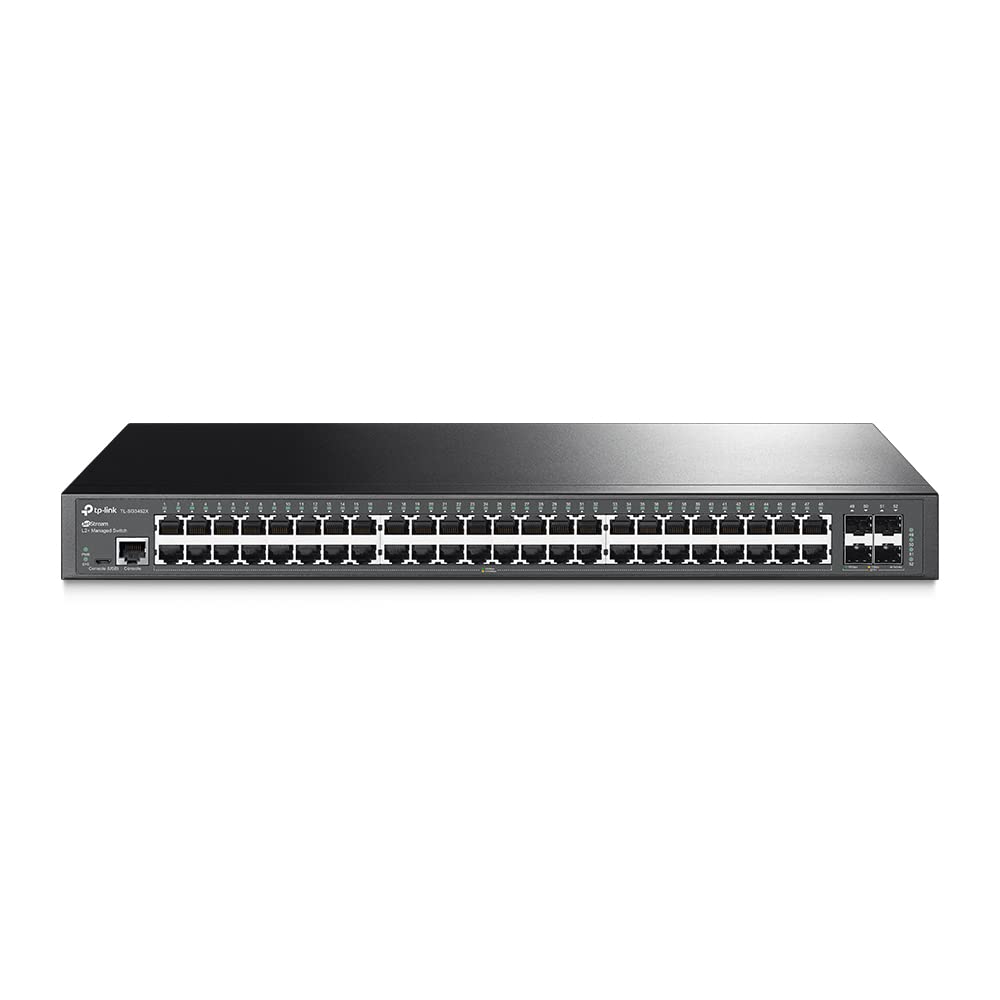

High-Speed Connectivity: The TL-SG3452X is equipped with 48 Gigabit Ethernet ports and 4 10GE SFP+ slots, providing extensive high-bandwidth connectivity. This setup ensures that the switch can handle substantial data traffic with ease, making it ideal for large-scale enterprise networks that require robust and reliable performance.

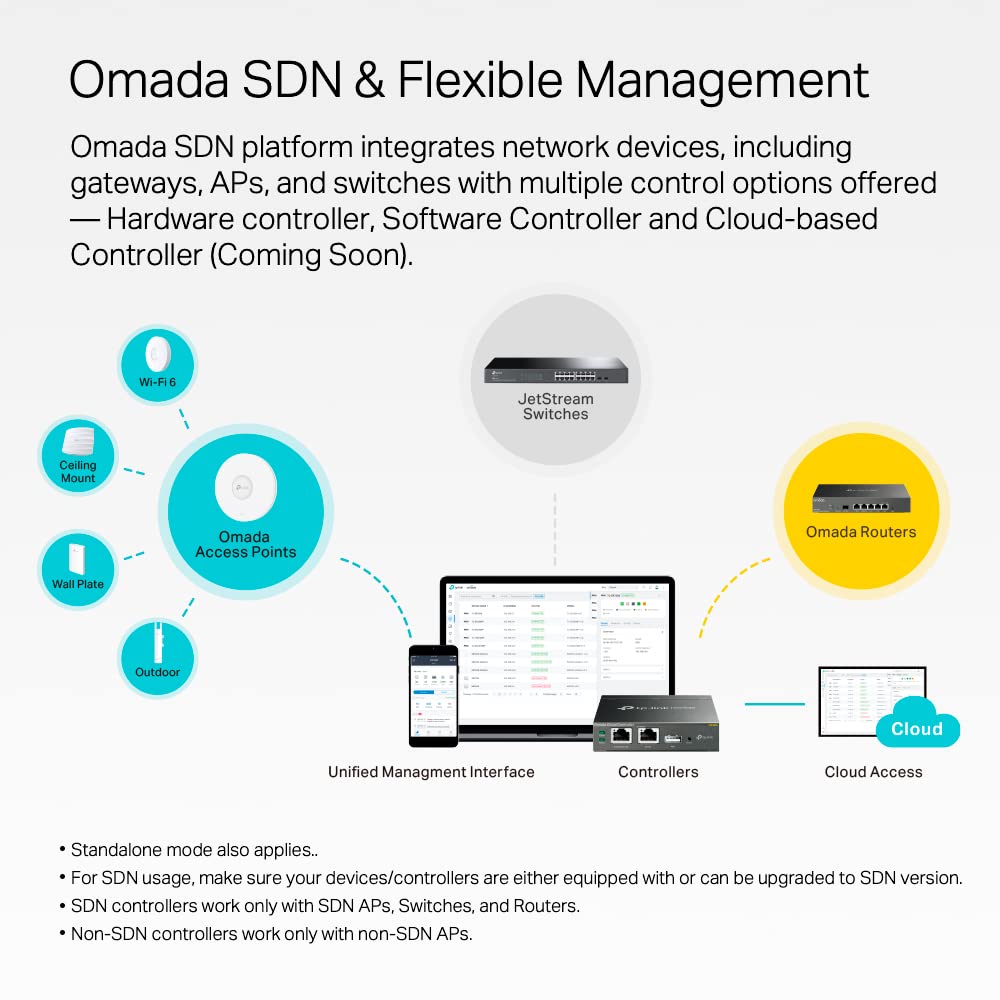

Centralized Cloud Management: This switch supports Omada Software Defined Networking (SDN), allowing for centralized cloud management. Network administrators can remotely manage and monitor the switch through the Omada app or web interface, simplifying network operations and enhancing flexibility in deployment and configuration.
Comprehensive Security Features: The switch includes a wide range of security measures to protect the network. These features include IP-MAC-Port Binding to prevent unauthorized devices from accessing the network, Access Control Lists (ACL) for defining security policies, Port Security to limit the number of devices on a port, DoS defense to protect against denial-of-service attacks, Storm Control to prevent network disruptions, DHCP Snooping to prevent rogue DHCP servers, and 802.1X Radius authentication for secure user access.

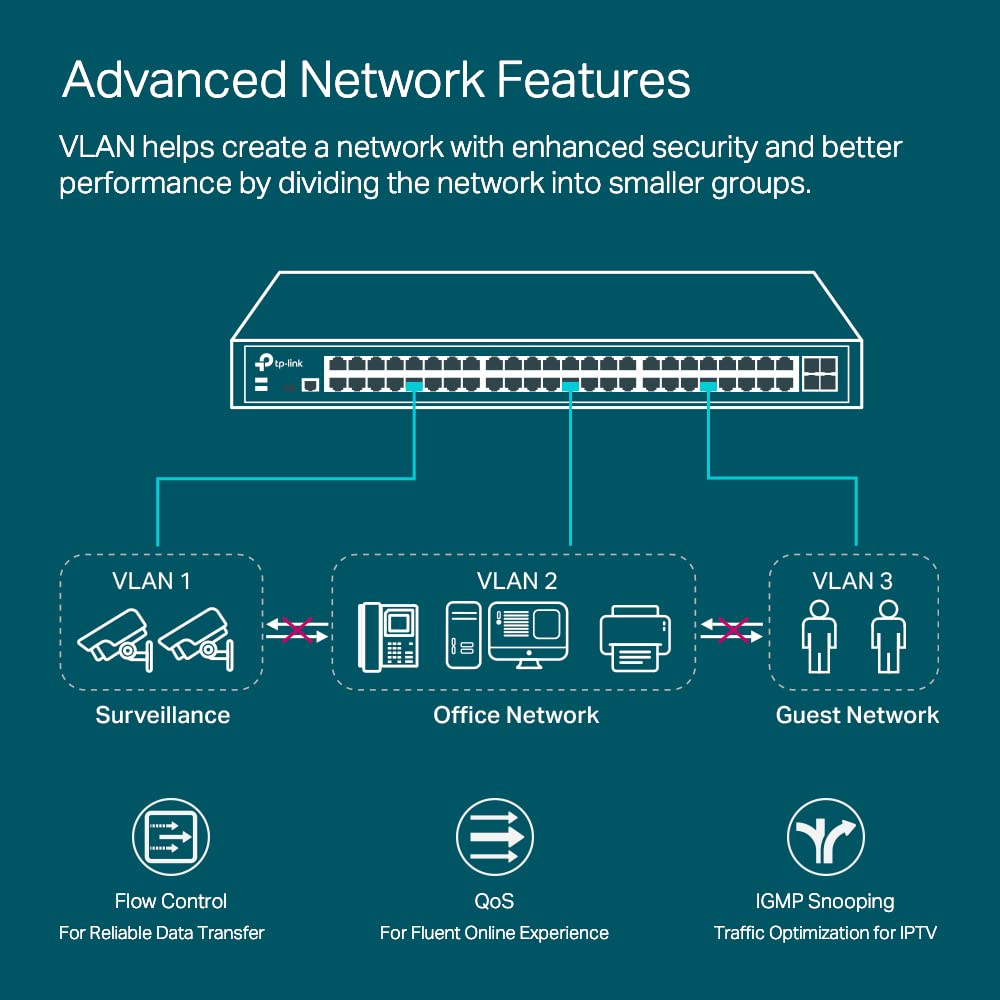

Advanced L2+ and L3 Features: The TL-SG3452X supports various Layer 2+ and Layer 3 features, such as Quality of Service (QoS) to prioritize critical traffic, IGMP Snooping for optimizing multicast traffic, and static routing for efficient internal traffic management. These features enhance the overall performance and scalability of the network, ensuring smooth and efficient operations.
Versatile Management Options: The switch offers multiple management options, including a web-based interface, Command Line Interface (CLI) via console port, Telnet, SSH, SNMP, and RMON. These options provide powerful and flexible management capabilities, allowing administrators to configure and monitor the network according to their specific needs and preferences.
Model | TL-SG3452X |
Interface |

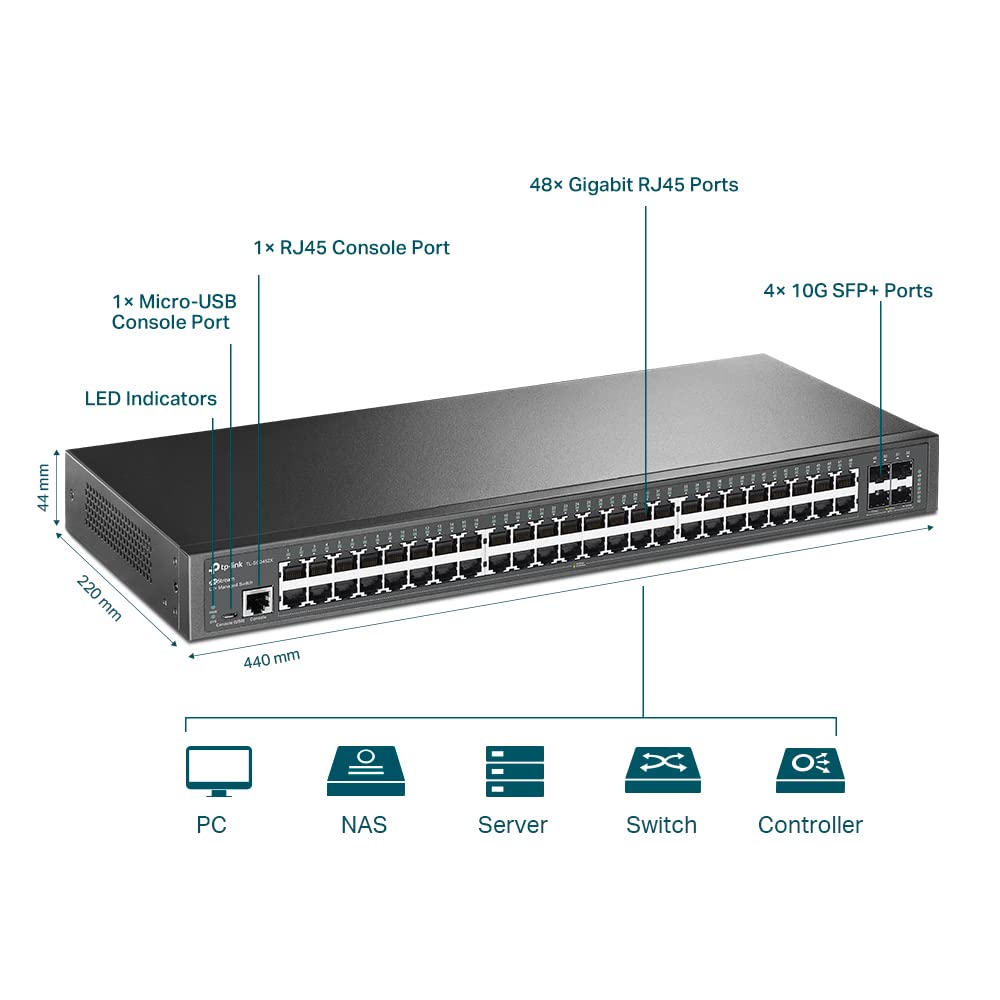

48× 10/100/1000 Mbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
Fan Quantity | Fanless |

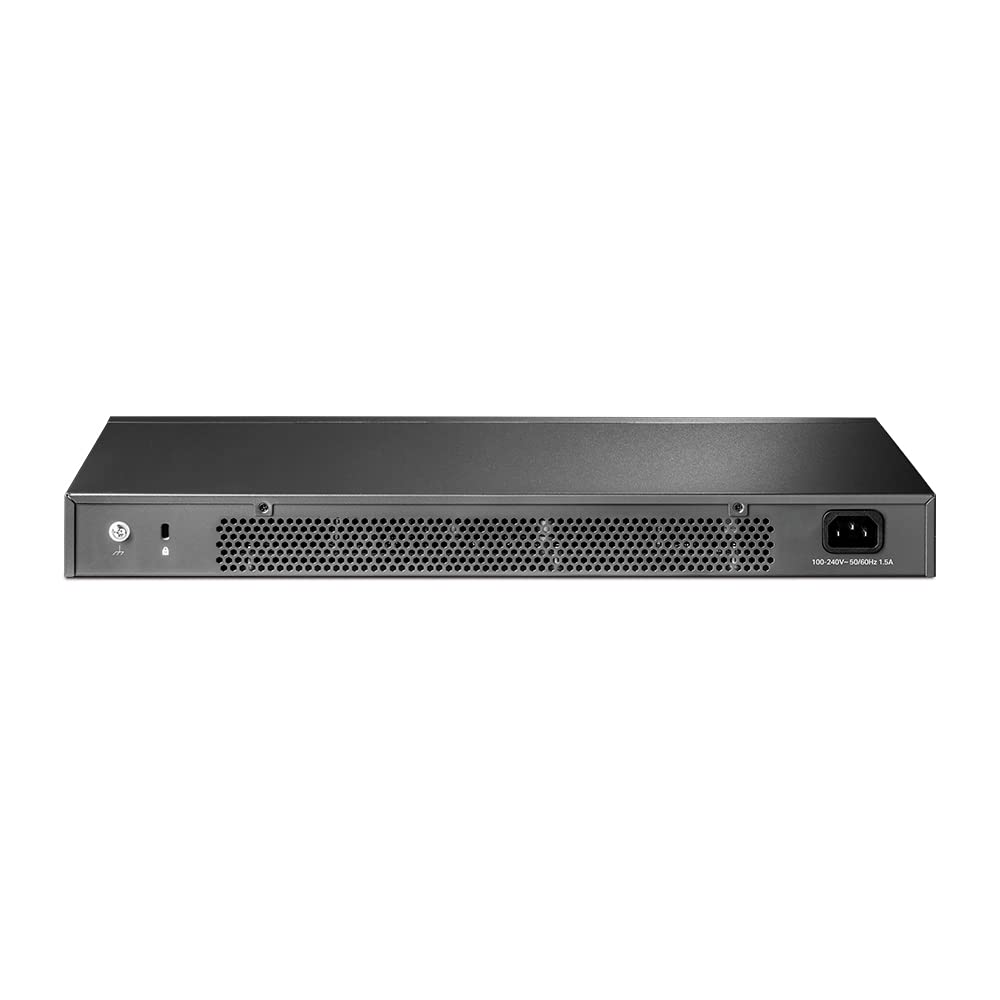

Power Supply | 100-240 V AC~50/60 Hz |
Mounting | Rack Mountable |
Max. Power Consumption | 32.72 W (110V/60Hz) |
Max Heat Dissipation | 111.65 BTU/h (110 V/60 Hz) |
Switching Capacity | 176 Gbps |
Packet Forwarding Rate | 130.9 Mpps |
Advanced Features |
Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7/8/10/11 MAC OS NetWare UNIX or Linux |
Dimensions | 440 × 220 × 44 mm |
Package Content | TL-SG3452X Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
Warranty | 5 Year Brand Warranty |
