DESCRIPTION

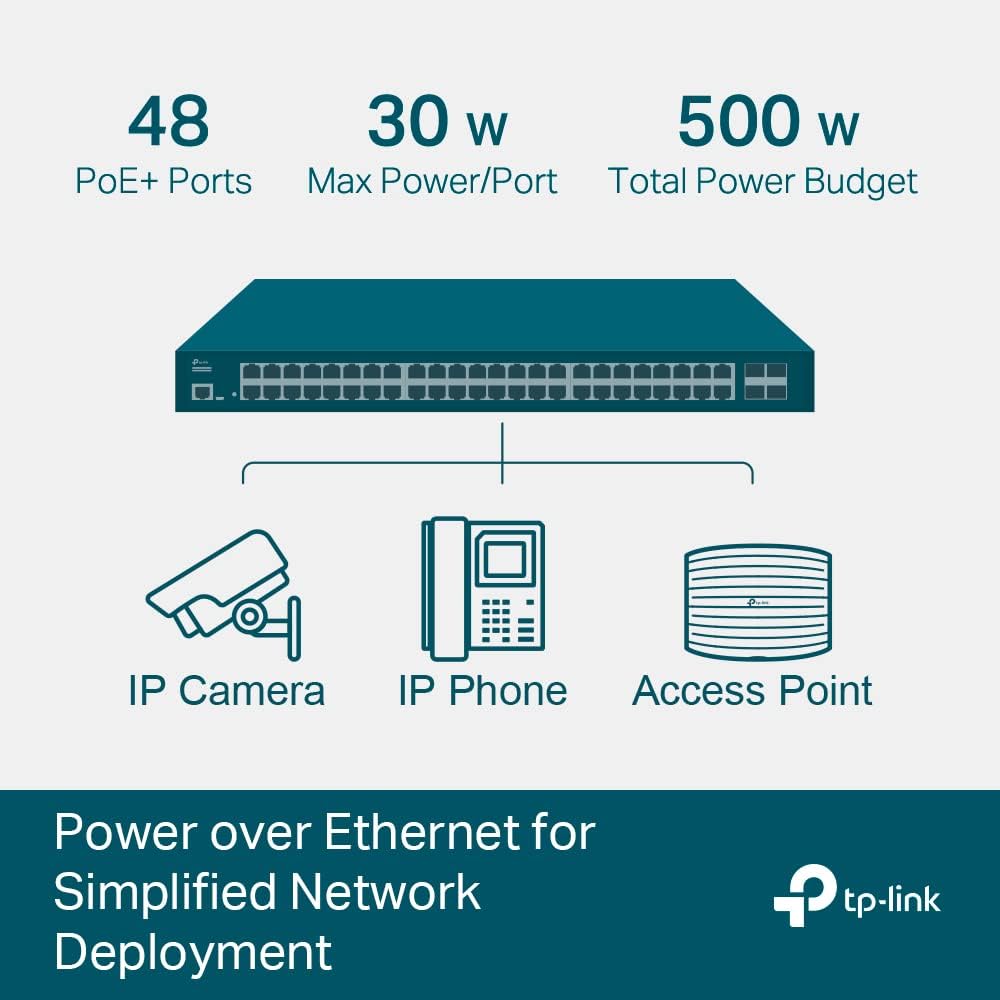

High PoE Power Budget: This switch is equipped with 48 PoE+ ports, each capable of delivering up to 30W of power, with a total PoE budget of 500W. This makes it ideal for powering a wide range of devices such as IP cameras, access points, and IP phones, providing flexibility and reducing the need for additional power infrastructure.
10G Lightning-Fast Uplink: It features 4× 10 Gbps SFP+ slots, which enable high-bandwidth connectivity and non-blocking switching capacity. This ensures reliable and ultra-fast connections to servers and other switches, making it suitable for high-performance network environments that require rapid data transfer and minimal latency.

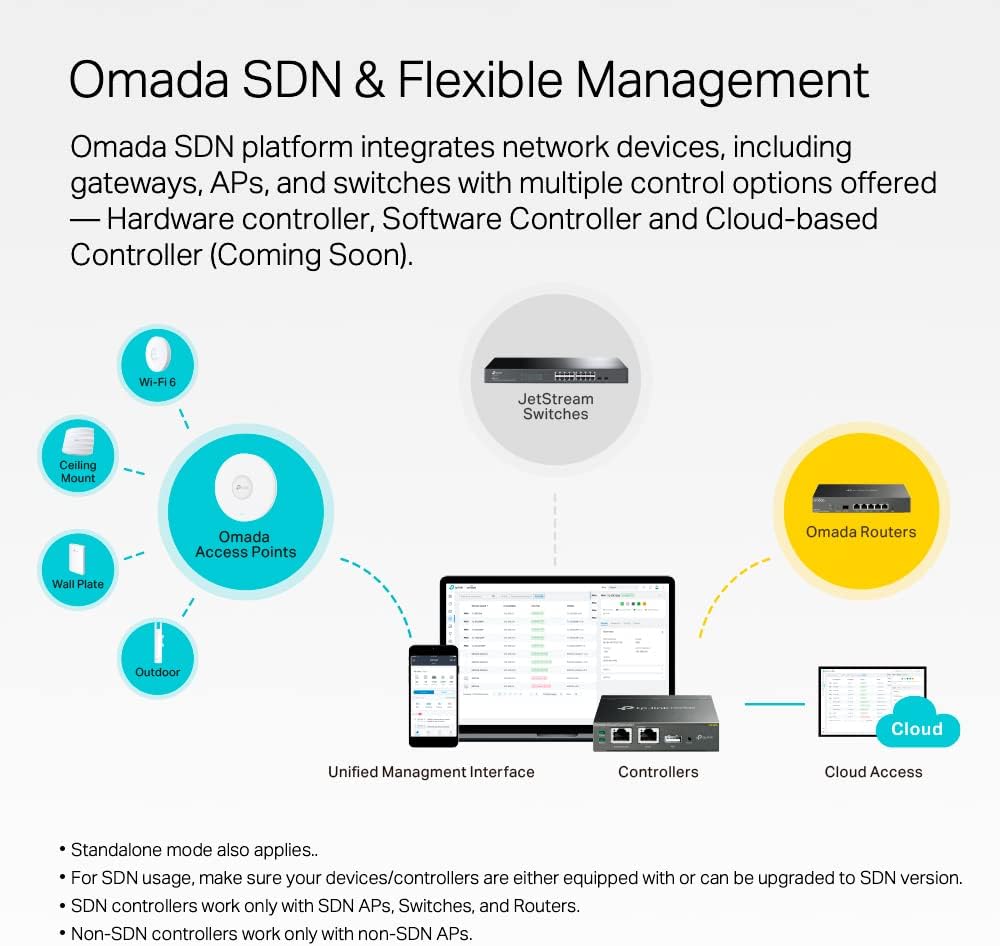

Advanced Network Management: The switch supports centralized cloud management through the Omada SDN platform, allowing for zero-touch provisioning, centralized management, and intelligent monitoring. It also offers standalone management options via web, CLI, SNMP, and RMON, providing comprehensive control over the network and making it easier to manage and troubleshoot.
Robust Security Features: To protect the network from various threats, the switch includes security strategies such as IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS Defend, Storm Control, DHCP Snooping, and 802.1X Radius Authentication. These features ensure a secure and reliable network environment, safeguarding sensitive data and maintaining network integrity.

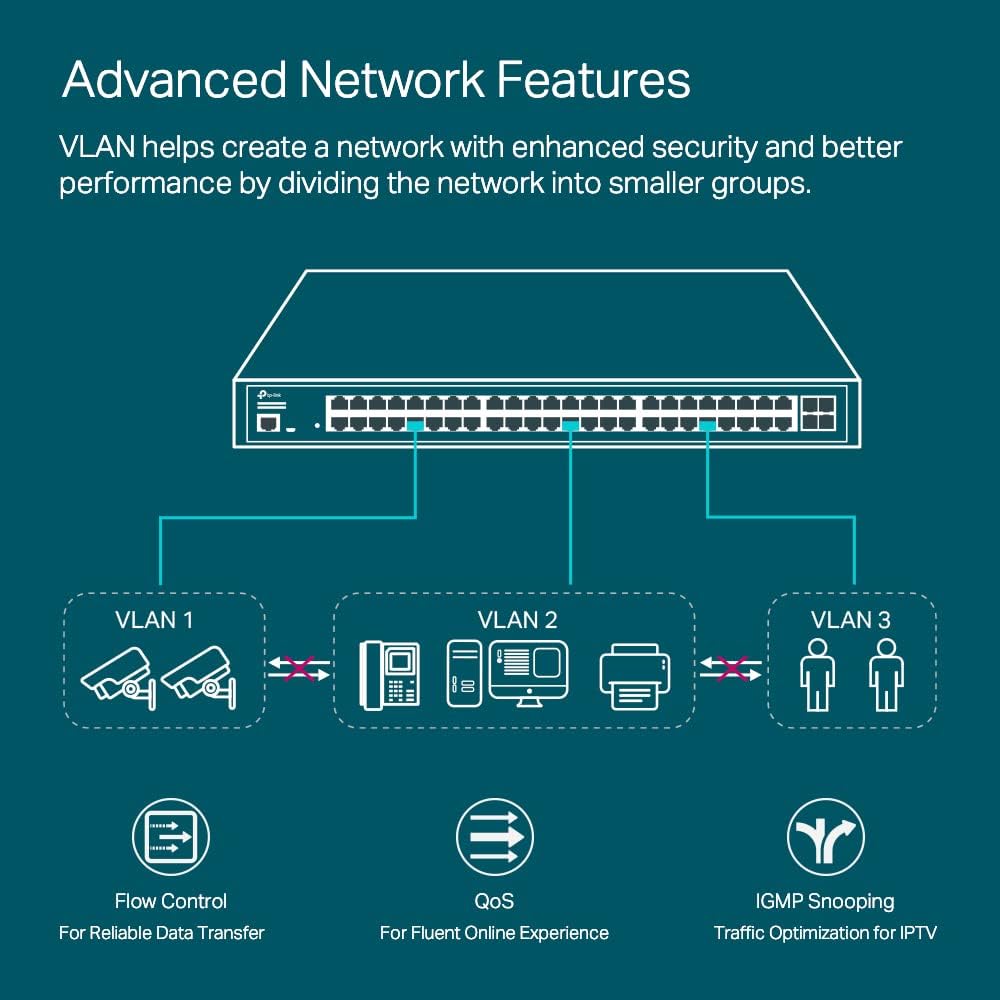

Optimized for Voice and Video Applications: The switch supports L2/L3/L4 Quality of Service (QoS) and IGMP snooping, which prioritize traffic to ensure smooth performance for voice and video applications. This enhances the overall user experience by maintaining high-quality service even during peak usage, making it ideal for environments where reliable communication is critical.
Model | TL-SG3452XP |
Interface |
48× 10/100/1000 Mbps RJ45 PoE+ Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
Fan Quantity | 3 |
Power Supply | 100-240 V AC~50/60 Hz |
PoE Ports (RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 48 Ports, up to 30 W per port Power Budget: 500 W |
Mounting | Rack Mountable |
Max. Power Consumption | 49.19 W (110V/60Hz) ( no PD device connected) 635.7 W (110V/60Hz) ( with 500 W PD device connected) |
Max Heat Dissipation | 167.85 BTU/hr (110 V/60 Hz) (no PD connected) 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
Switching Capacity | 176 Gbps |
Packet Forwarding Rate | 130.9 Mpps |
Advanced Features |
Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7/8/10/11 MAC OS NetWare UNIX or Linux |
Dimensions | 440 × 330 × 44 mm |
Package Content | TL-SG3452XP Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
Warranty | 1 Year Brand Warranty |
